Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • Provide adequate internal support to prevent door deformation after trim is bolted to the device.

Corbin Russwin VT950 and VTL950 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Metal Door …_T31086 imag

Corbin Russwin VT950 and VTL950 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Metal Door …_T31086 imag

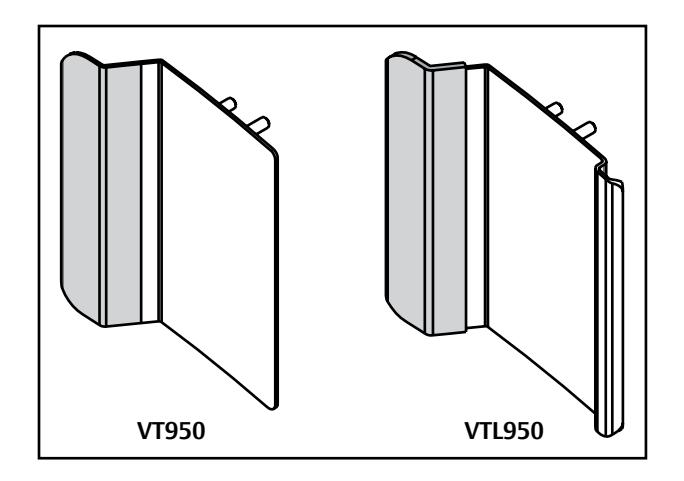

VT950 & VTL950 Series Trim

With ED5200, ED5400 or ED5800 Series Rim, SecureBolt, and Vertical Rod Exit Devices Metal Door Preparation

Corbin 72° RUSSWIN 22° ASSA ABLOY

TANDRE TO NOT SCALE DRAWING TEMPLATE NUMBER T31086-1 corbinrusswin.com DATE 02-20
