table of contents
| levers | 2 |
|---|---|
| finishes, roses & escutcheons | 6 |
| mortise locksets | 7 |
| exit devices | 8 |
| access control devices | 9 |
| master key systems | 9 |
distinctively styled lever trims
VINEYARD
The Vineyard Collection is made up of choice materials, classical lines, curves and lush finishes. Elegantly designed levers of rare quality are available for the finest commercial openings. Vineyard Collection — Corbin Russwin's unparalleled level of creativity and achievement in decorative door hardware.
select vineyard for your high-profile
Vineyard Collection levers blend beauty with security. These levers are ideal for executive office areas, high-end condominiums, airport business clubs, banking centers, hotels, municipal buildings, exclusive retail shops, and upscale theatres.

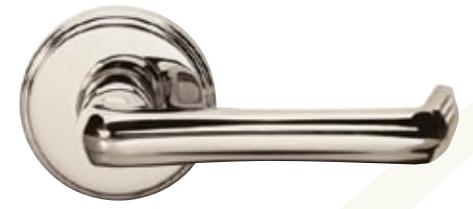

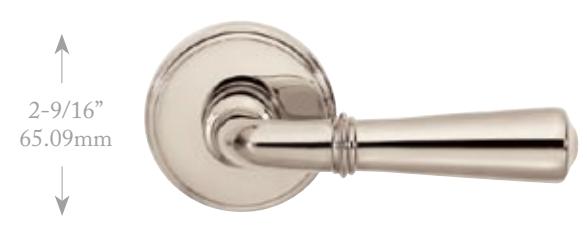

Merlot
Frascati
Tuscany
Like its namesake, the Merlot blends with – and enhances – any décor.
M S G LEVER: CAST ROSE: CAST
Fresh yet classic, the Frascati exudes the casual, timeless elegance of the Roman hills. A
ROSE: Cast Specify Hand.
ZINFANDEL
Vigorous and complex in design, the Zinfandel adds finesse to any opening.
LEVERS | ZINFANDEL
In true Renaissance spirit, the Tuscany brings balance and beauty to every interior.
LEVER: CAST
ROSE: CAST
TSL
LEVER: CAST
ESCUTCHEON: CAST
605-E* Polished brass, Infini-T®
606-E* Satin brass, Infini-T®
611 Polished bronze, clear coated
612 Satin bronze, clear coated
613 Dark oxidized satin bronze, oil rubbed Also available 613L
bronze, clear coated 618 Polished nickel
Dark oxidized satin
619 Satin nickel
625 Polished chrome
626 Satin chrome
722 Black oxidized bronze, oil rubbed
*Infini-T® finish is a technologically advanced finish produced by a coating technology called Physical Vapor Deposition (PVD). Infini-T® provides the ultimate surface protection against the elements and everyday wear and tear.
G rose
L escutcheon

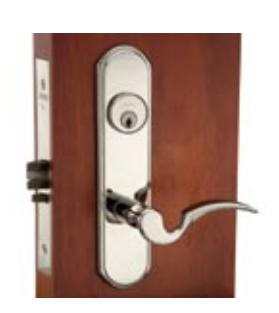

ML2000 Series Mortise Locksets
The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Constructed of heavy-gage steel, the lockbody features our patented Quick Reversible latchbolt (Patent # 6,349,982) and a 1" stainless steel deadbolt.
A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for projects requiring distinctive styling.
order example:
| Trim | Finish | ||||||
|---|---|---|---|---|---|---|---|
| Qty | Series/Function | Outside | Inside | Outside | Inside | Hand | |
| 12 | ML2055 | ZSL | 626 | RHR | |||
| 24 | ML2051 | MSG | MSG | 605 | 625 | LH | |
Parabolic Trim Specify M60
Standard Trim
ED5000 Series Exit Devices
VineyardTM offers the power of choice. With a wide variety of devices, trims, lever designs, and electrified hardware, a high security, aesthetically pleasing locking system can be designed for any building and application. Design Suite: A parabolic design option to match our Access 800® styling for a suited look. Electronics: The Corbin Russwin ED5000 series electrified exit devices offer a complete range of options that may be integrated into the monitoring security and alarm systems of most buildings. The continuum of appearance is maintained, as well as the security and function of the ED5000 mechanical exit device. Heavy-Duty Trim: Patented lever release (free wheeling) mechanism for vandal resistance (Patent # 4,920,773). SecureBolt™: Deadbolt-style latch design provides increased physical security and vandal resistance. Delayed Egress Exit Device: Increases security in many applications such as retail stores and health care facilities.
order example:
Exit Device with Trim
| Qty | Exit Device | Trim/Function | Finish | Hand | Cylinder Option |
|---|---|---|---|---|---|
| 24 | ED5600 | FR9M55 | 626 | RHR | 6P |
| 16 | ED5400 | TS910 | 606 | RH |
| Door Thickness | Optional Strike | Door Width | Misc. Options |
|---|---|---|---|
| D200 | SB134 | WO48 | |
| M60 |
Trim Only
| Qty | Trim/Function Finish Hand Cylinder Option Door Thickness Misc Options | |||||
|---|---|---|---|---|---|---|
| 12 | M957 | 605 | RH | D214 | M60 | |
| 36 | M955 | 625 | LH | 6P |
Access Control Devices
The Access 800® AC2 is a motor driven, battery powered stand-alone system with no hardwiring required, but available if desired. Choose from a variety of mortise and exit device versions for new or retrofit applications.
- Stand-alone access control; no hardwiring necessary
- HID compatible; supports 26, 33, 34 & 35 bit formats
- Fully programmable for time zones, holidays and audit trail
- 9 volt hardwire option available
- Easy to use software
- Interior or exterior applications
- Supporting up to 2000 users
®
Master Key Systems
Pyramid® , Corbin Russwin's patented cylinder (Patent # 6,125,674), is the most secure locking system available. Pyramid cylinders are available in both High Security and Security versions. The High Security version is certified by Underwriters Laboratories to UL437 standards.
Pyramid High Security and Pyramid Security cylinders can be combined on the same master key system and one key can operate both cylinder types!
Corbin Russwin and Design® is a registered trademark of Corbin Russwin, Inc. VineyardTM is a trademark of Corbin Russwin, Inc. These materials are protected under US copyright laws. Other products' brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only. All contents current at time of publication. Corbin Russwin, Inc. reserves the right to change availability of any item in this catalog, its design, construction, and/or its materials. Copyright © 2007 Corbin Russwin, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.
Corbin Russwin, Inc. 225 Episcopal Road Berlin, CT 06037-4004 Phone 800.543.3658 Fax 800.447.6714 corbinrusswin.com
