Corbin Russwin Top and Bottom Strikes for MP9800 Series Multi-Point Locks Aluminum Doors Template

Original Source Document Full PDF Version

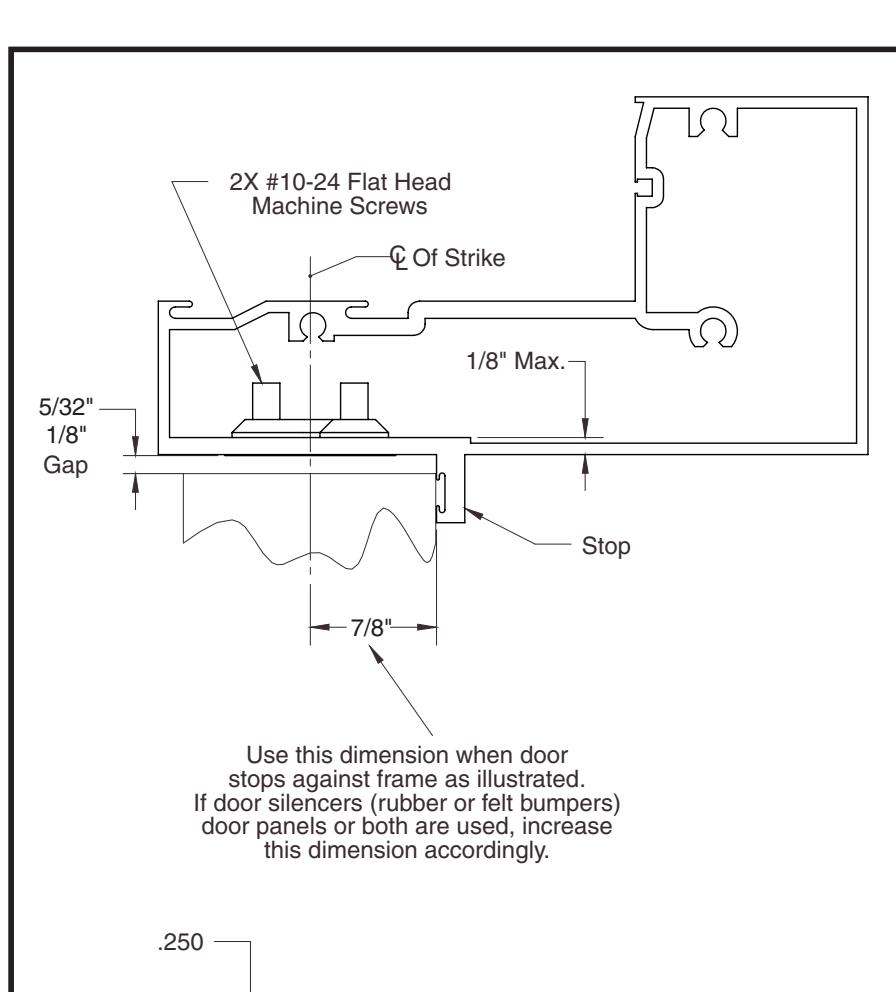

Corbin Russwin Top and Bottom Strikes for MP9800 Series Multi-Point Locks Aluminum Doors Template_T31244 diagram on page 1

Corbin Russwin Top and Bottom Strikes for MP9800 Series Multi-Point Locks Aluminum Doors Template_T31244 image on page 1

Ø1-1/4" -

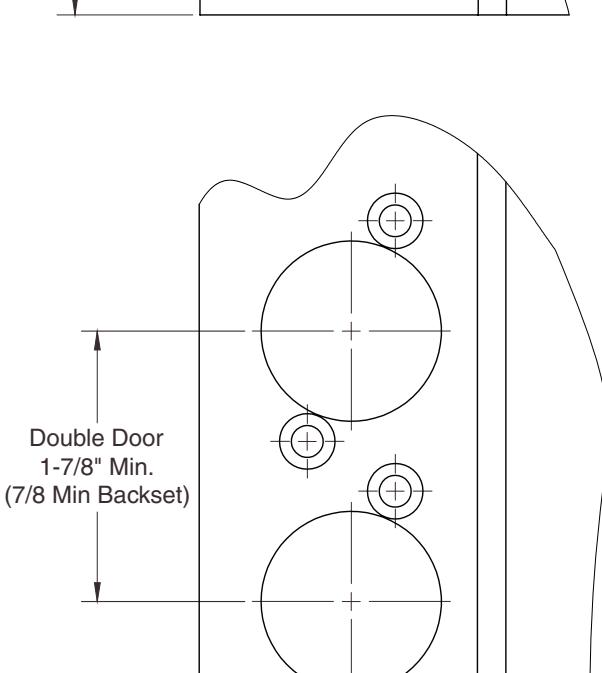

Single Door

1-1/8" Min.

Backset

NOTES:

otherwise specified.

Corbin Russwin Top and Bottom Strikes for MP9800 Series Multi-Point Locks Aluminum Doors Template_T31244 image on page 1

.125

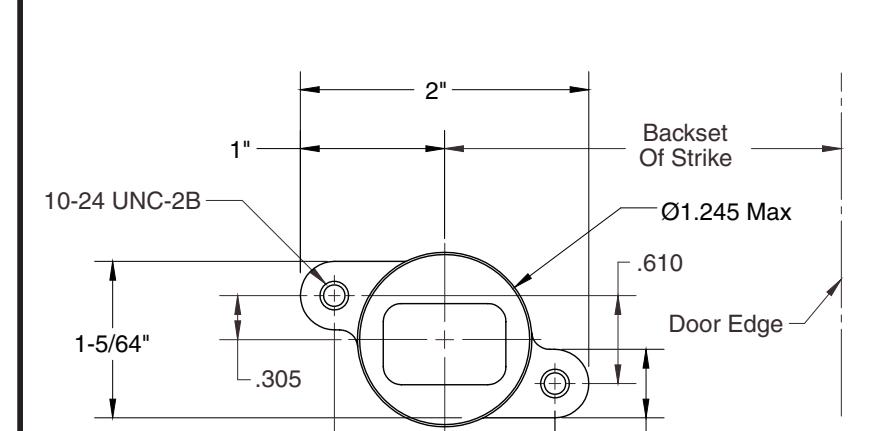

Max backset of device is 2-3/4". Strike is centered on latchbolt ±1/8" for all device backsets. See header details for minimum backset information.

.765

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

MP9800 Series Multi-Point Locks Top and Bottom Strike Aluminum Door

15/32"

ASSA ABLOY

www.corbinrusswin.com

SUPERSEDES

1. For bottom strike, prepare threshold as specified for

2. Tolerance on all dimensions ±.015 (1/64") unless

DO NOT SCALE DRAWING TEMPLATE NUMBER T31244 08-16
