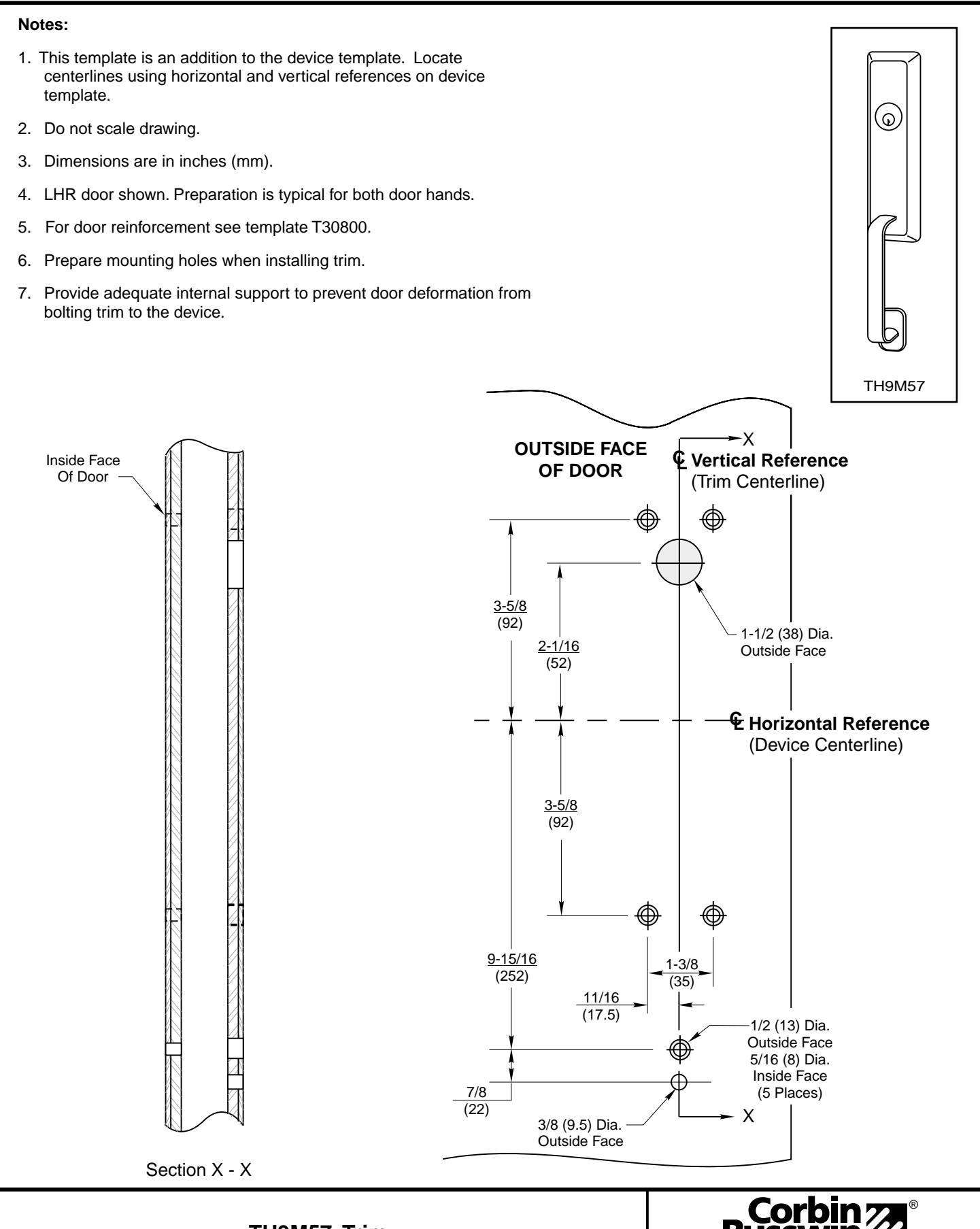

Corbin Russwin TH9M57 Trim for ED5600 Wide Stile Mortise Metal Door Template_T31040 diagram on page 1

TH9M57 Trim Metal Door Preparation With ED5600 Series Mortise Exit Devices

DO NOT SCALE DRAWING SUPERSEDES www.corbinrusswin.com

TEMPLATE NUMBER DATE T31040 6-06
