10-1/4

(260)

TH950

Heavy Duty Thumbpiece Trim For use with ED5000 Series Exit Device

Metal, Wood or Composite Doors

Corbin Russwin TH950 Heavy Duty Thumbpiece Trim for ED5000 Series Wide Stile Metal, Wood or Composite Doors Inst…_FM258 image

Corbin Russwin TH950 Heavy Duty Thumbpiece Trim for ED5000 Series Wide Stile Metal, Wood or Composite Doors Inst…_FM258 image

TH950

(Exit Only)

Dummy Function

Corbin Russwin TH950 Heavy Duty Thumbpiece Trim for ED5000 Series Wide Stile Metal, Wood or Composite Doors Inst…_FM258 image

Corbin Russwin TH950 Heavy Duty Thumbpiece Trim for ED5000 Series Wide Stile Metal, Wood or Composite Doors Inst…_FM258 image

*Shown for LHR door

For installation assistance contact Corbin Russwin 1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

(422)

TH950 Heavy Duty Thumbpiece Trim

For ED5000 Series Exit Device

Installation Instructions

Corbin Russwin TH950 Heavy Duty Thumbpiece Trim for ED5000 Series Wide Stile Metal, Wood or Composite Doors Inst…_FM258 image

Corbin Russwin TH950 Heavy Duty Thumbpiece Trim for ED5000 Series Wide Stile Metal, Wood or Composite Doors Inst…_FM258 diagr

TH950 Heavy Duty Thumbpiece Trim

For ED5000 Series Exit Device

Installation Instructions

Corbin Russwin TH950 Heavy Duty Thumbpiece Trim for ED5000 Series Wide Stile Metal, Wood or Composite Doors Inst…_FM258 image

Template Bottom CUT LINE NOTE: Be sure NOTE: Be sure Centerlines are aligned Centerlines are aligned and straight when and straight when taping pieces taping pieces together. together. Holes Marked "X" (5 Places) Metal Doors: Inside Face 5/16" (8) Dia. Outside Face 1/2" (13) Dia. Wood Doors: 1/2" (13) Dia. Thru Dimensions in inches (mm). CAUTION: Office copiers and desktop printers may change the size of a drawing and make the template inaccurate to use as a door marker. If this is not the original template packed with the trim, use only the dimensions written on the template to locate the holes on the door. Do not use the template as a door marker. 7/8" 3/8" (9.5) Dia. 3/4" (19) Deep

Corbin Russwin TH950 Heavy Duty Thumbpiece Trim for ED5000 Series Wide Stile Metal, Wood or Composite Doors Inst…_FM258 image

3 Installation

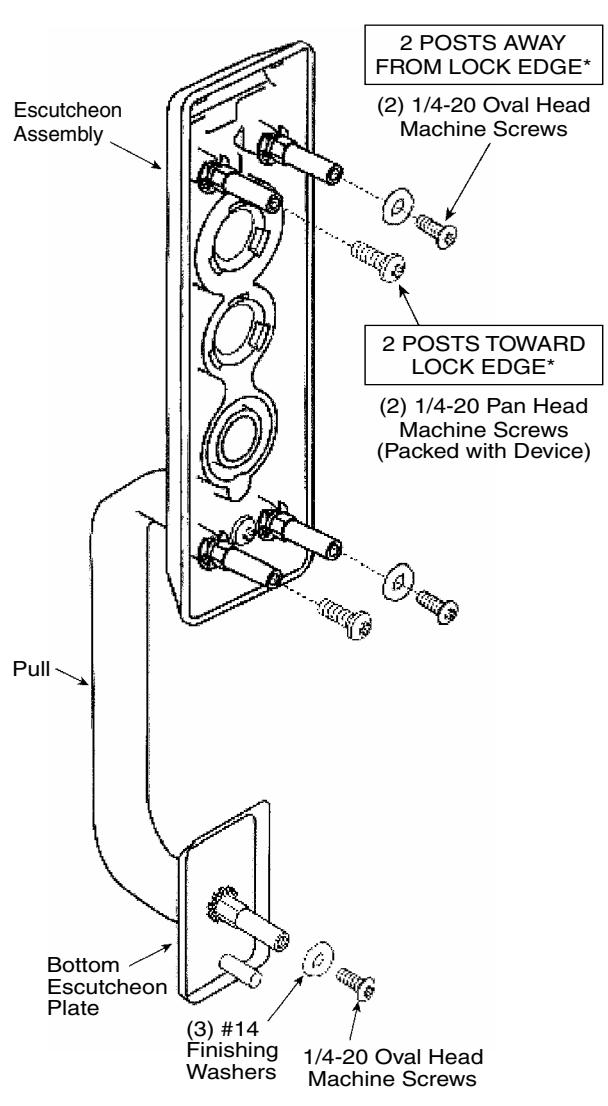

  • 1. Check box contents. (Figure 1)
  • 2. After marking door inside face for device location (Device Instructions), transfer "Vertical Reference Centerline" from inside to outside door face. (Figure 2)
  • 3. Transfer "Horizontal Reference Centerline" from inside to outside door face.
  • 4. Align trim template and tape to outside door face. (pages 2 and 3)
  • 5. Spot holes and prepare door for trim.
  • 6. Mount trim to door through holes "B". Fasten, finger tight only, with three (3) screws and washers seating on door, as shown. (Figure 3) Bottom screw and washer engages lower post on pull.

NOTE:

  • Device is bolted to trim using holes "A" (closest to door lock edge).
  • Screws and washers bolt trim to door using holes "B".
  • 7. Continue with device instructions.

Corbin Russwin TH950 Heavy Duty Thumbpiece Trim for ED5000 Series Wide Stile Metal, Wood or Composite Doors Inst…_FM258 image

Corbin Russwin TH950 Heavy Duty Thumbpiece Trim for ED5000 Series Wide Stile Metal, Wood or Composite Doors Inst…_FM258 image

Corbin Russwin 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 corbinrusswin.com
