Notes:

  • This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Prepare mounting holes when installing trim.
  • Provide adequate structural support to maintain door integrity during operation.

Hole Specification
Α 1/2(12.50) Dia. Thru Door
В 3/8(9.50) Dia. X 3/4(19) Deep

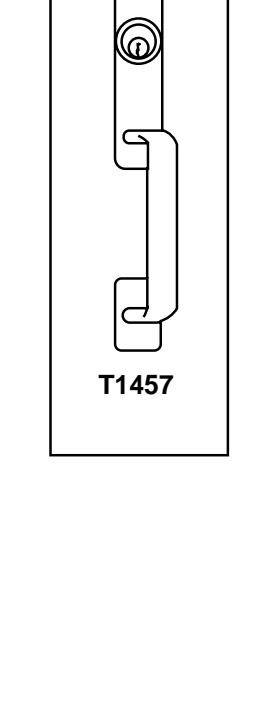

Corbin Russwin T1457 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Wood or Compos…_T30850 imag

Corbin Russwin T1457 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Wood or Compos…_T30850 diag

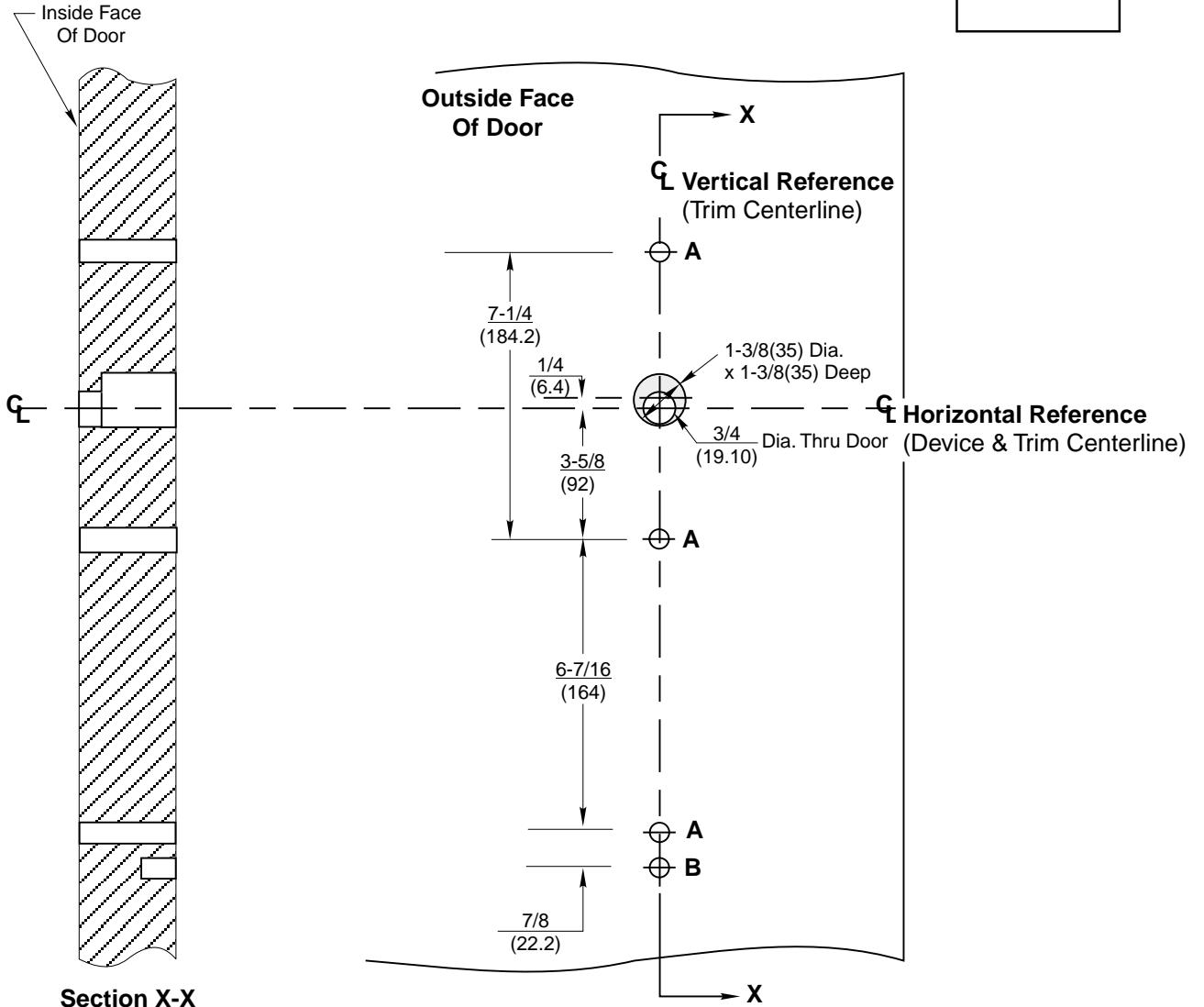

T1457 Narrow Escutcheon Trim With ED4200, ED4400 or ED4800 Series Rim and Vertical Rod Exit Devices Wood or Composite Door Preparation

Corbin 70° Russwin 700°

www.corbinrusswin.com

SUPERSEDES T30850 DO

DO NOT SCALE DRAWING

DATE 9-99

T30850-1
