Notes:

1

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.

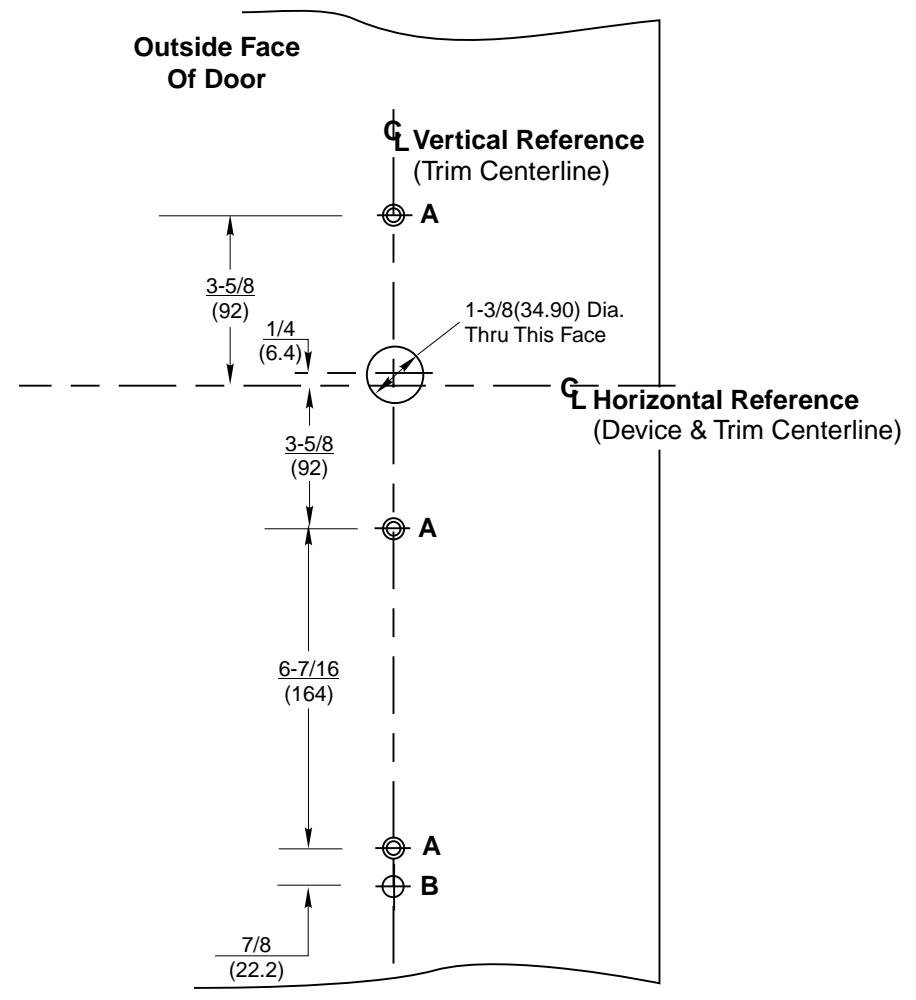

Hole Specification
A 3/8(9.50) Dia. Outside Face 5/16(8) Dia. Inside Face (3 Places)
B 3/8(9.50) Dia. Outside Face

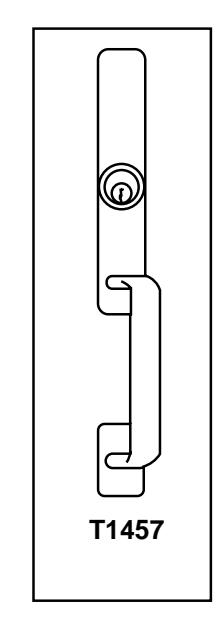

Corbin Russwin T1457 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Metal Door Tem…_T30814 imag

Corbin Russwin T1457 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Metal Door Tem…_T30814 diag

T1457 Narrow Escutcheon Trim Metal Door Preparation With ED4200, ED4400, or ED4800 Series Rim and Vertical Rod Exit Devices

Corbin Russwin T1457 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Metal Door Tem…_T30814 diag

www.corbinrusswin.com

T30814

DO NOT SCALE DRAWING SUPERSEDES

TEMPLATE NUMBER DATE T30814-1 9-99
