Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Prepare mounting holes when installing trim.
  • 6. Provide adequate structural support to maintain door integrity during operation.

Hole Specification
A 1/2(12.50) Dia. Thru Door
B 3/8(9.50) Dia. X 3/4(19) Deep

Corbin Russwin T1450 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Wood or Compos…_T30852 imag

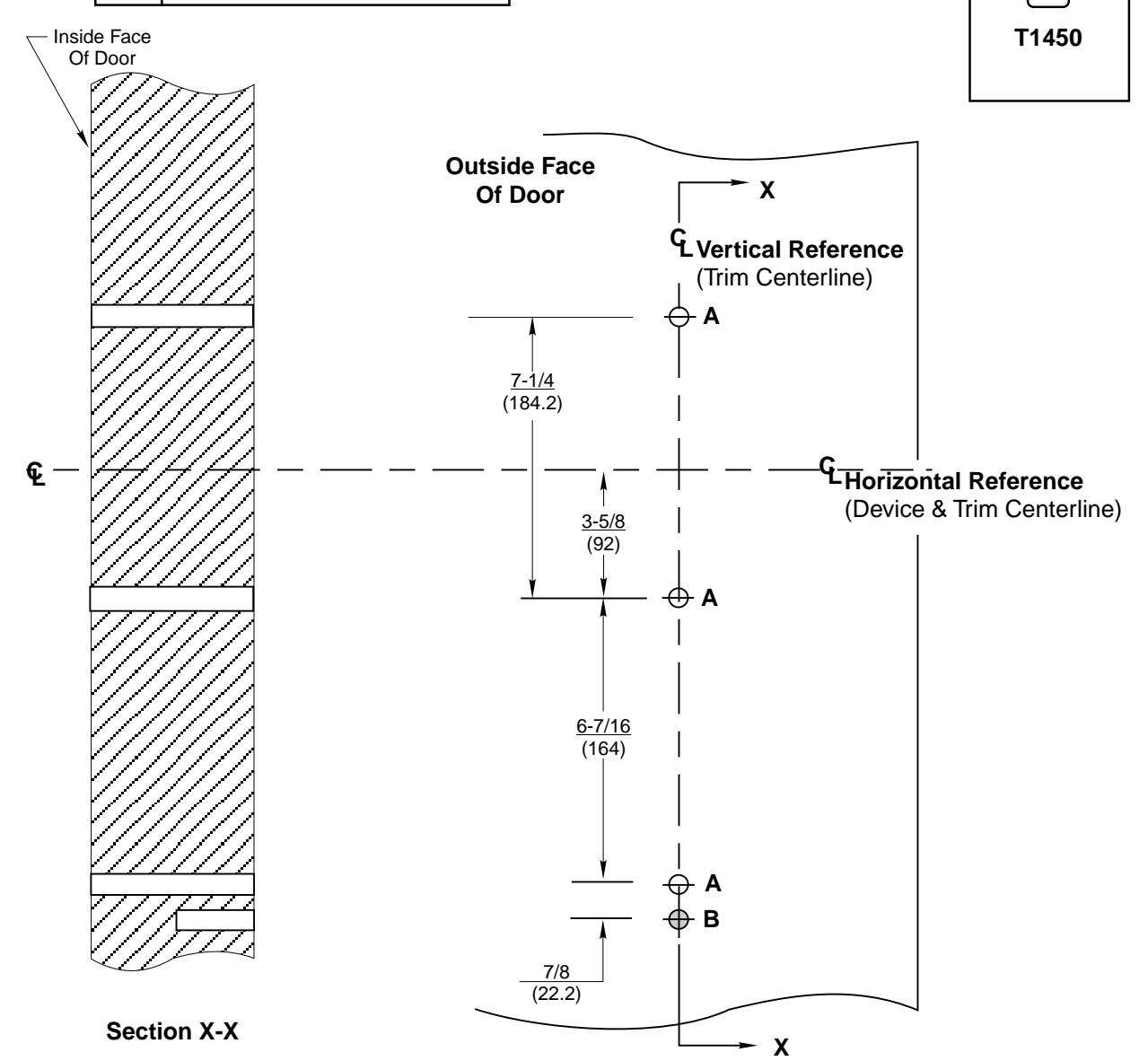

T1450 Narrow Escutcheon Trim Wood or Composite Door Preparation With ED4200, ED4400 or ED4800 Series Rim and Vertical Rod Exit Devices

Corbin Russwin T1450 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Wood or Compos…_T30852 imag

www.corbinrusswin.com

T30852

DO NOT SCALE DRAWING SUPERSEDES

TEMPLATE NUMBER DATE T30852-1 9-99
