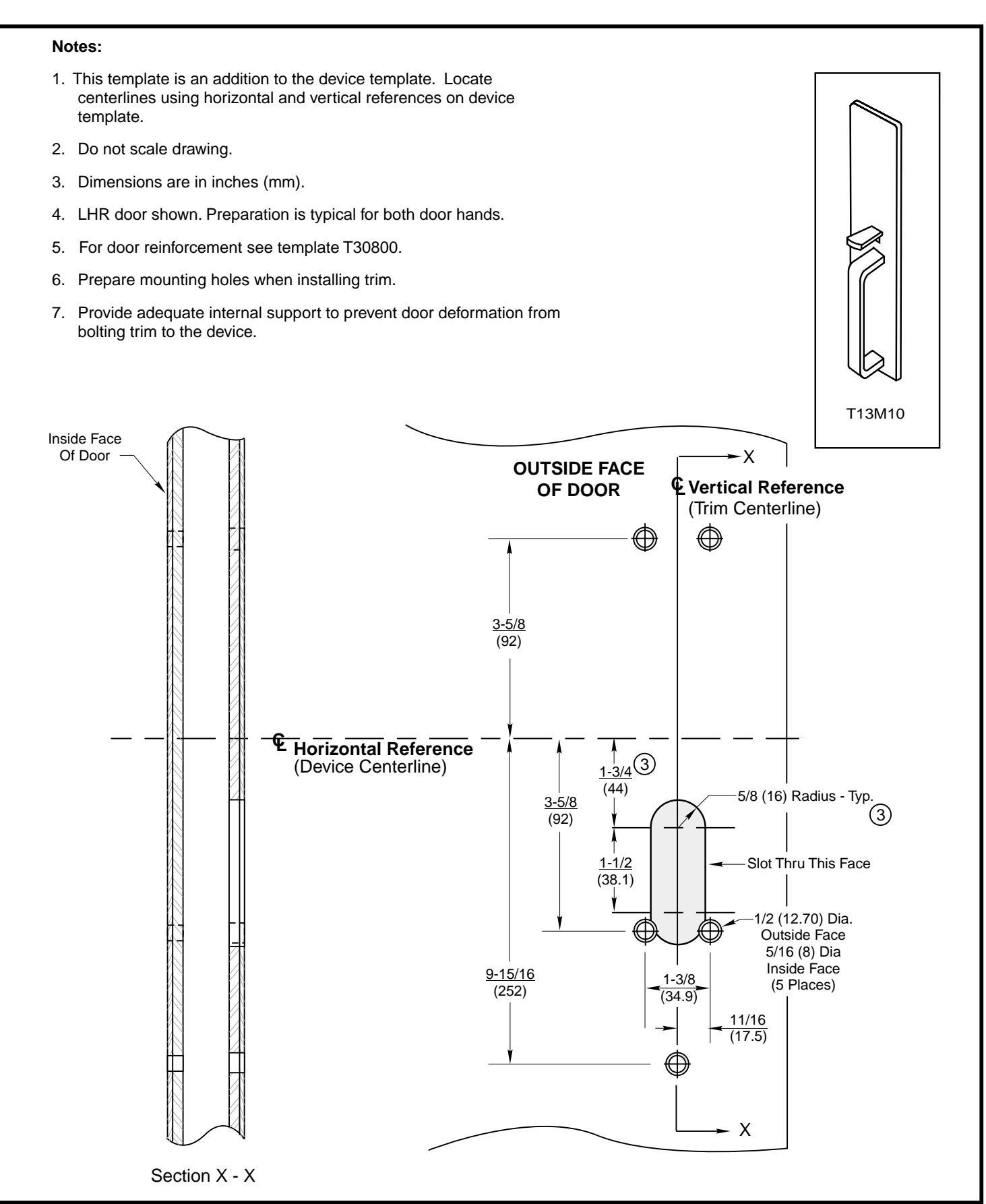

Corbin Russwin T13M10 Trim for ED5600 Wide Stile Mortise Metal Door Template_T30834 diagram on page 1

T13M10 Trim Metal Door Preparation With ED5600 Series Mortise Exit Devices

Corbin Russwin T13M10 Trim for ED5600 Wide Stile Mortise Metal Door Template_T30834 image on page 1

DO NOT SCALE DRAWING SUPERSEDES T30834-2

TEMPLATE NUMBER DATE T30834-3 6-06
