Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation from bolting trim to the device.

Corbin Russwin T1357 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, CVR, SVR Metal Door Template_T30824 image on page 1

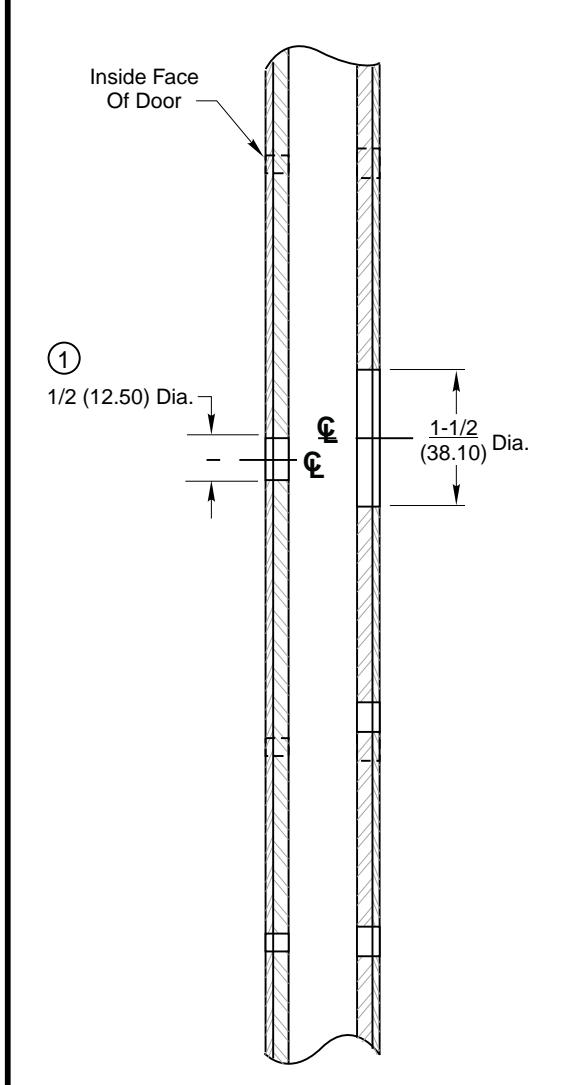

Section X - X

Corbin Russwin T1357 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, CVR, SVR Metal Door Template_T30824 diagram on page 1

T1357 Trim Metal Door Preparation With ED5200, ED5400 or ED5800 Series Rim and Vertical Rod Exit Devices

®

DO NOT SCALE DRAWING SUPERSEDES www.corbinrusswin.com

T30824

TEMPLATE NUMBER DATE T30824-1 9-99
