Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation from bolting trim to the device.
  • 8. Dimensions given about a centerline are symmetrical
  • 9. Unspecified radii 1/8 (3.20) maximum.

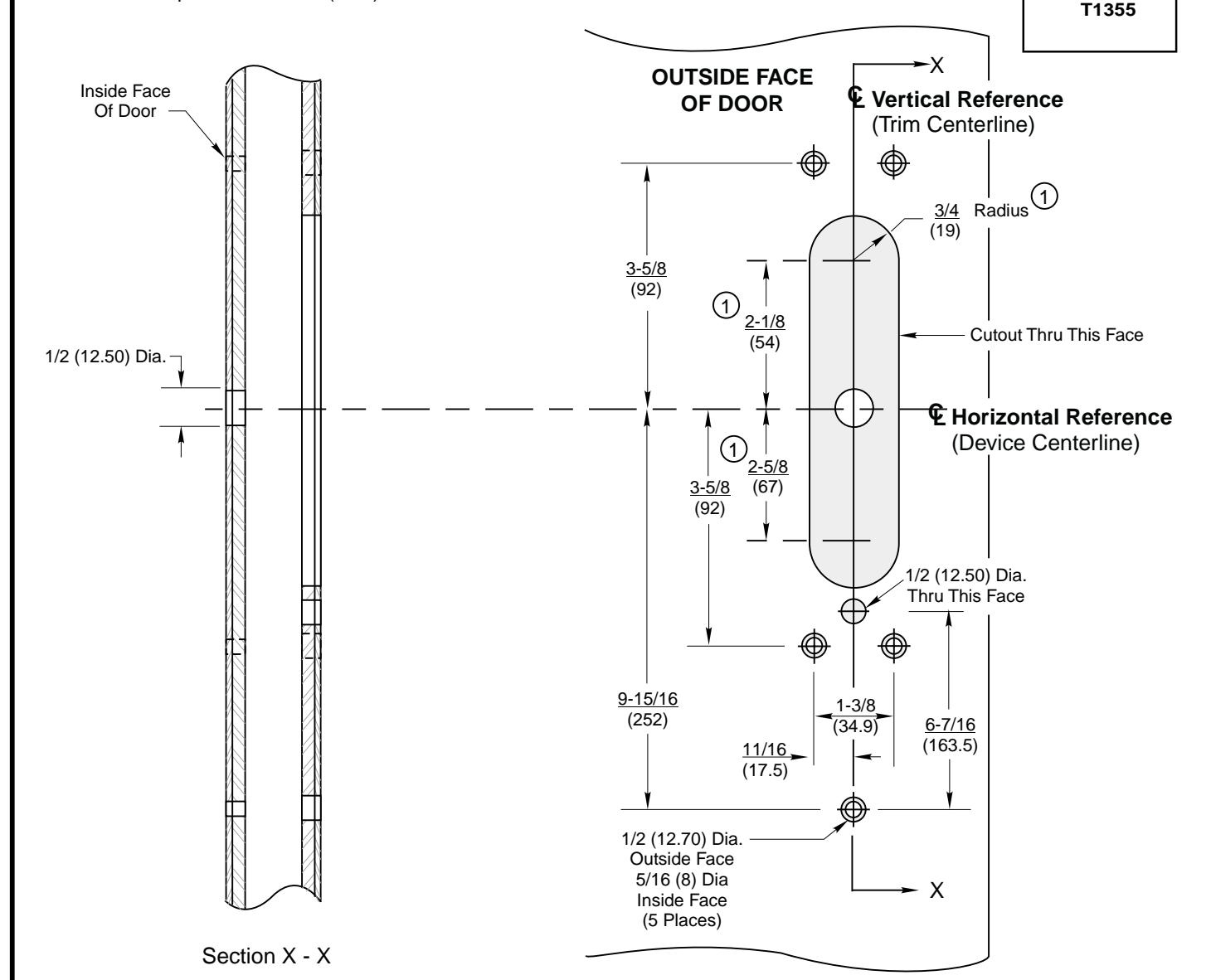

Corbin Russwin T1355 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, CVR, SVR Metal Door Template_T30825 image on page 1

T1355 Trim

Metal Door Preparation With ED5200, ED5400 or ED5800 Series Rim and Vertical Rod Exit Devices

Corbin Russwin T1355 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, CVR, SVR Metal Door Template_T30825 image on page 1

www.corbinrusswin.com

DO NOT SCALE DRAWING SUPERSEDES T30825

TEMPLATE NUMBER DATE T30825-1 9-99
