Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation from bolting trim to the device.

Corbin Russwin T1350 Trim for ED5200, ED5400, ED5600, ED5800 Wide Stile Mortise, Rim, CVR, SVR Metal Door Templa…_T30826 imag

T1350 Trim

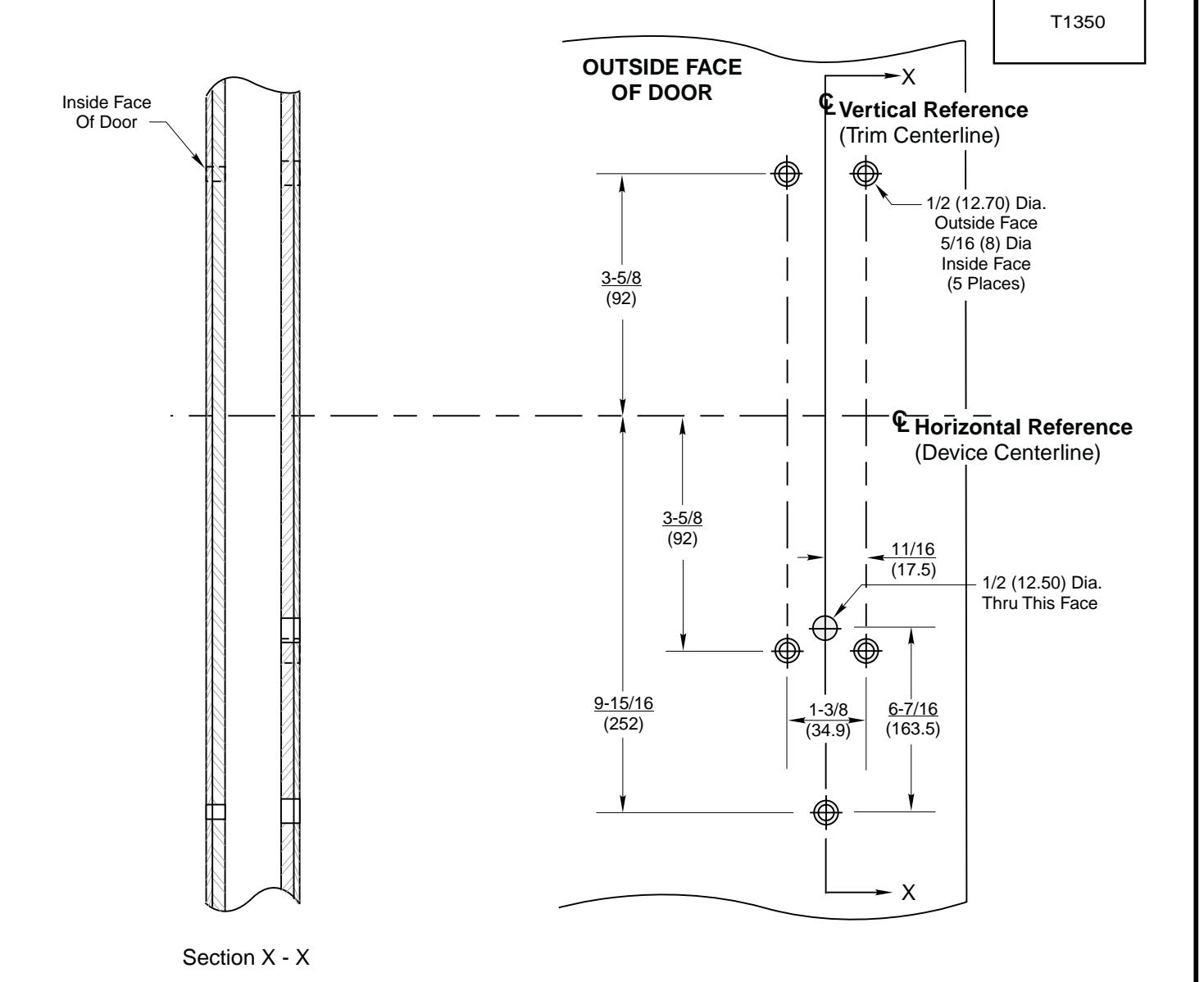

Metal Door Preparation With ED5200, ED5400, ED5600 or ED5800 Series Rim, Mortise and Vertical Rod Exit Devices

Corbin Russwin T1350 Trim for ED5200, ED5400, ED5600, ED5800 Wide Stile Mortise, Rim, CVR, SVR Metal Door Templa…_T30826 imag

www.corbinrusswin.com

T30826

DO NOT SCALE DRAWING SUPERSEDES

TEMPLATE NUMBER DATE T30826-1 9-99
