Corbin Russwin T1310 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, CVR, SVR Metal Door Template

Original Source Document Full PDF Version

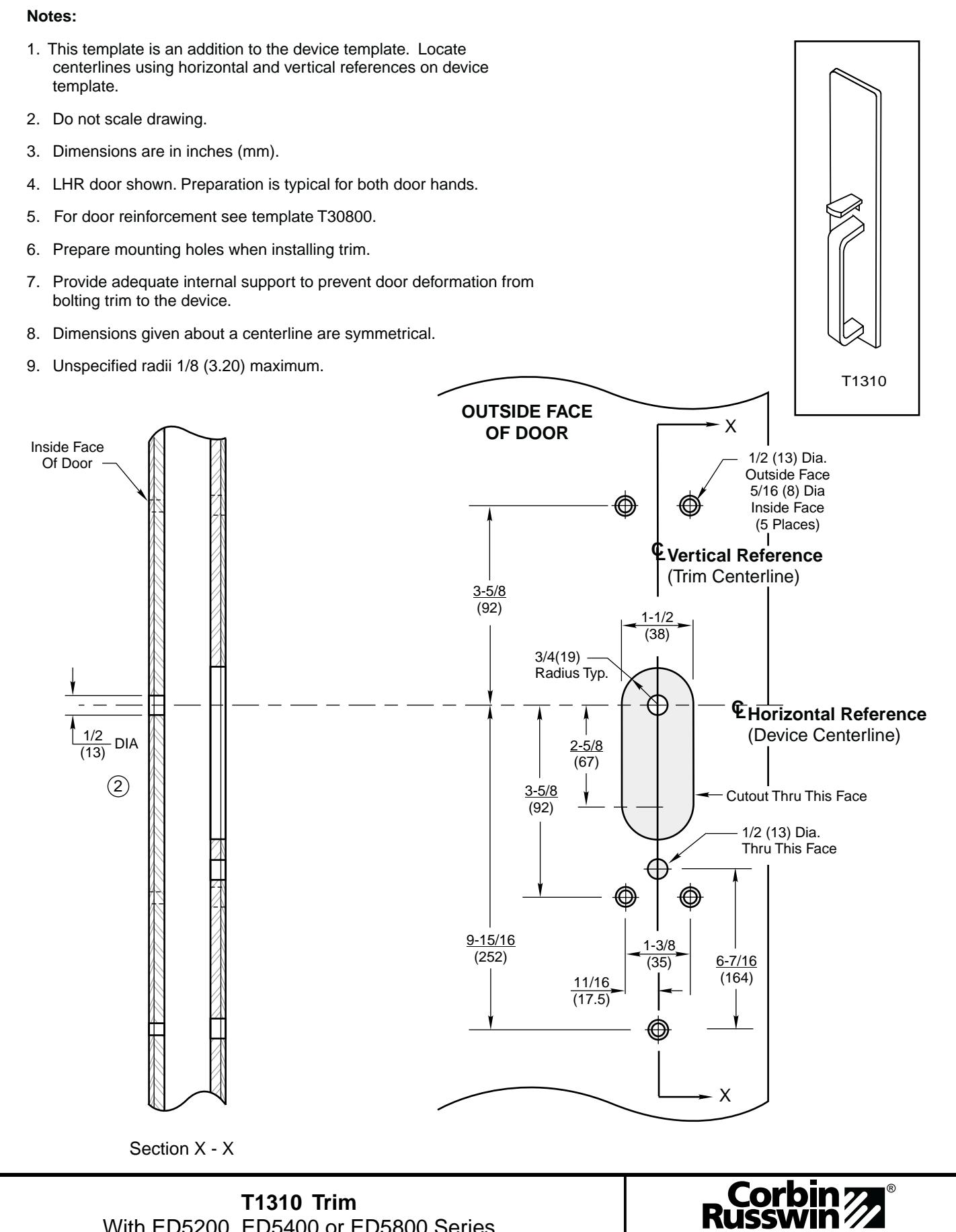

Corbin Russwin T1310 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, CVR, SVR Metal Door Template_T30827 diagram on page 1

Metal Door Preparation With ED5200, ED5400 or ED5800 Series Rim and Vertical Rod Exit Devices

www.corbinrusswin.com

DO NOT SCALE DRAWING SUPERSEDES T30827-1

TEMPLATE NUMBER DATE T30827-2 6-05
