← Corbin

Advant EDGE

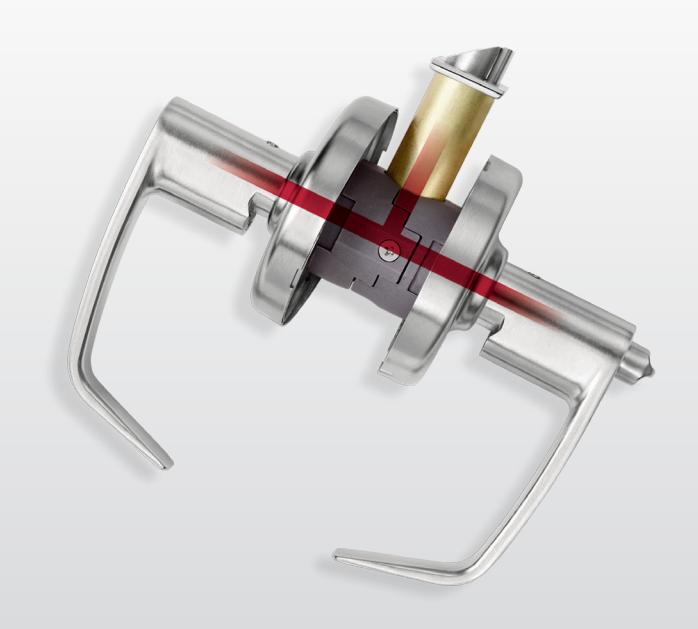

Corbin Russwin T-Zone AdvantEDGE Sell Sheet_45335 image on page 1

CL3100 SERIES VANDAL RESISTANT LEVER LOCK

Corbin Russwin designed the CL3100 Series to withstand the most demanding environments. The unique T-Zone construction easily exceeds ANSI/BHMA Grade 1 requirements for torque and cycle testing, ensuring durability in abusive applications. And, because few components are required when changing the lock function, the design simplifies facility maintenance. Durable, flexible, reliable– this lock is the ideal solution for facilities with the highest standards.

BENEFITS

Durable and Reliable

  • Independently-verified cycle testing proves the lock will last the lifetime of the facility
  • No thrubolt screws to be installed improperly or forgotten
  • T-Zone construction prevents the lock from twisting and ensures consistent latching

Flexible

  • Simplifies facility maintenance by utilizing one lockbody for multiple functions and integrating with numerous key systems
  • Fits standard 161 door prep
  • Retrofits any cylindrical lock with simple cylinder removal providing easy change outs
  • Non-handed

Lower Cost of Ownership

  • Fewer inventoried parts
  • High number of opening cycles combined with less maintenance reduces overall expenses

Safe and Secure

• Torque resistant construction provides ability to withstand tough environments to keep occupants and property safe and secure

Fast Installation

• Innovative packaging reduces installation time by 33%

Sustainable

  • Fewer lock replacements due to long life
  • Made from 68% post-consumer recycled content contributes to LEED MR Credit 4
  • Manufactured in a facility with Sustainable Manufacturing Practices as certified by GreenCircle Certified, LLC (certificate number: 15-0066)

Healthy Environment

• Microshield® coating available; supplements cleaning protocol for a healthier environment

PERFORMANCE TESTS

  • Withstands more than TWO TIMES ANSI/BHMA A156.2 Grade 1 torque force on a locked lever
  • Tested to 15 TIMES the standard in ANSI/BHMA A156.2 Grade 1 cycle testing
  • Virtually no lever sag, even after 15 million cycles; Over 55 years of opening life in many facilities

Corbin Russwin T-Zone AdvantEDGE Sell Sheet_45335 image on page 1

Corbin Russwin Architectural Hardware 225 Episcopal Road, Berlin, CT 06037 Phone 800-543-3658 Fax 800-447-6714 www.corbinrusswin.com
