The Corbin Russwin SN Series brings a new level of flexibility to our Integrated Wired access control solutions. Featuring Signo Reader Technology from HID Global®, the SN Series is ideal for mixed credential environments and enables easy migration to higher security credentials and mobile access. Now featuring Open Supervised Device Protocol (OSDP) communication, the SN Series offers continuously monitored end-to-end wiring, protecting against tampering and "man in the middle" attacks.

Corbin Russwin SN Series Sell Sheet_45640 image on page 1

Corbin Russwin SN Series Sell Sheet_45640 image on page 2

SN Series

Integrated Wired Access Control Lock

CREDENTIAL SUPPORT

  • • 2.4 GHz credentials:
    • Secure Identity Object™ (SIO) on Mobile IDs (Bluetooth Smart)
  • • 13.56 MHz credentials:
    • Secure Identity Object™ (SIO) on iCLASS Seos, iCLASS SE/SR, MIFARE DESFire EV1/EV2 and MIFARE Classic (on by default)
    • Standard iCLASS Access Control Application, ISO14443A (MIFARE) CSN, ISO14443B CSN, and ISO15693 CSN
    • Apple Wallet
    • NFC-enabled mobile phones
  • • 125 kHz credentials:
  • HID Prox®, AWID, EM4102

SPECIFICATIONS AND SYSTEM REQUIREMENTS

  • • Reader: 12VDC
  • • Mortise and multi-point locks operate from 12-24VDC; cylindrical locks and exit devices available as 12 or 24VDC
  • • Mortise and multi-point locks field selectable to fail-safe or fail-secure; must specify fail-safe or fail-secure for cylindrical locks and exit devices

FEATURES BENEFITS
Signo Technology from HID Global® • Supports:
– Multiple credential technologies, offering
easy migration to higher
security credentials or consolidation of mixed
credentials
– HID Mobile Access® powered by Seos®, for
both iOS® and Android™ devices

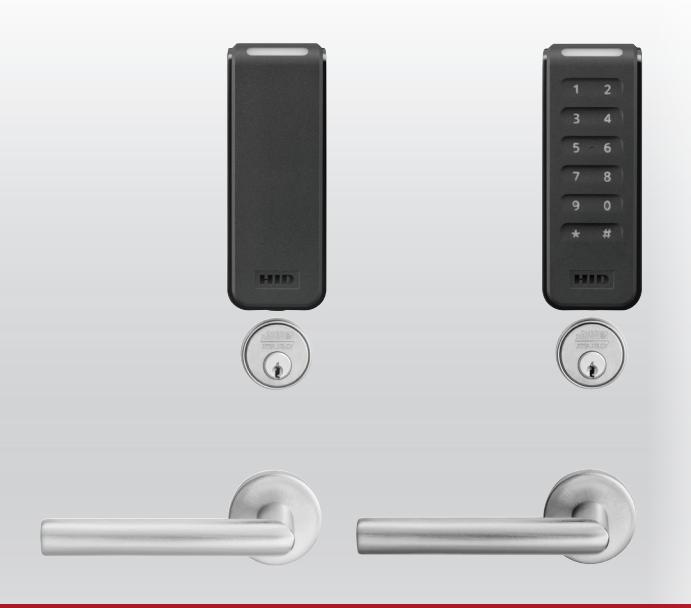

Available with keypad and non-keypad reader Supports PIN only and dual authentication
requirements
Open architecture platform Compatibility with all popular access control
systems
Integrated design incorporates all access control
components, including card reader, door
position switch, and request to exit monitoring
sensors 		Significantly reduces installation time
Intelligent power management Reduces reader power consumption by as much
as 75%
Integrated ANSI/BHMA Grade 1 hardware,
available in cylindrical lock, mortise lock, multi
point lock, and exit device configurations 		Industry leading Grade 1 hardware offers the
highest degree of physical security available
in access control locks; flexibility to support a
variety of openings
Lockdown capable Ability to secure areas immediately from central
security system
Provided with pre-terminated ElectroLynx®
connectors 		Reduced installation time and costs; improved
reliability
Mortise locks feature EcoFlex® technology • Reduces energy consumption up to 96%, as
certified by GreenCircle
• Field configurable to fail-safe or fail-secure
• Operates from 12-24VDC, offering greater
flexibility in system design
• Innovative actuator design provides superior
reliability

Corbin Russwin SN Series Sell Sheet_45640 image on page 2

Corbin Russwin SN Series Sell Sheet_45640 image on page 2

Corbin Russwin SN Series Sell Sheet_45640 image on page 2

Corbin Russwin SN Series Sell Sheet_45640 image on page 2

Corbin Russwin SN Series Sell Sheet_45640 image on page 2

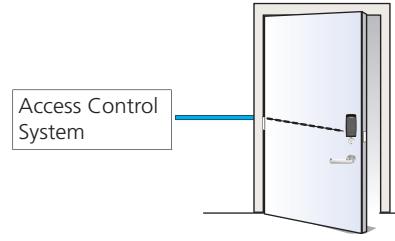

ElectroLynx® plug and play wiring through raceway
