Installation Instructions

Corbin Russwin Shim Kit (Flush or Overlapping) for PED5000 Series Wide Stile Doors with Glass Bead Installation …_FM624 image

(Flush or Overlapping) for doors with glass bead

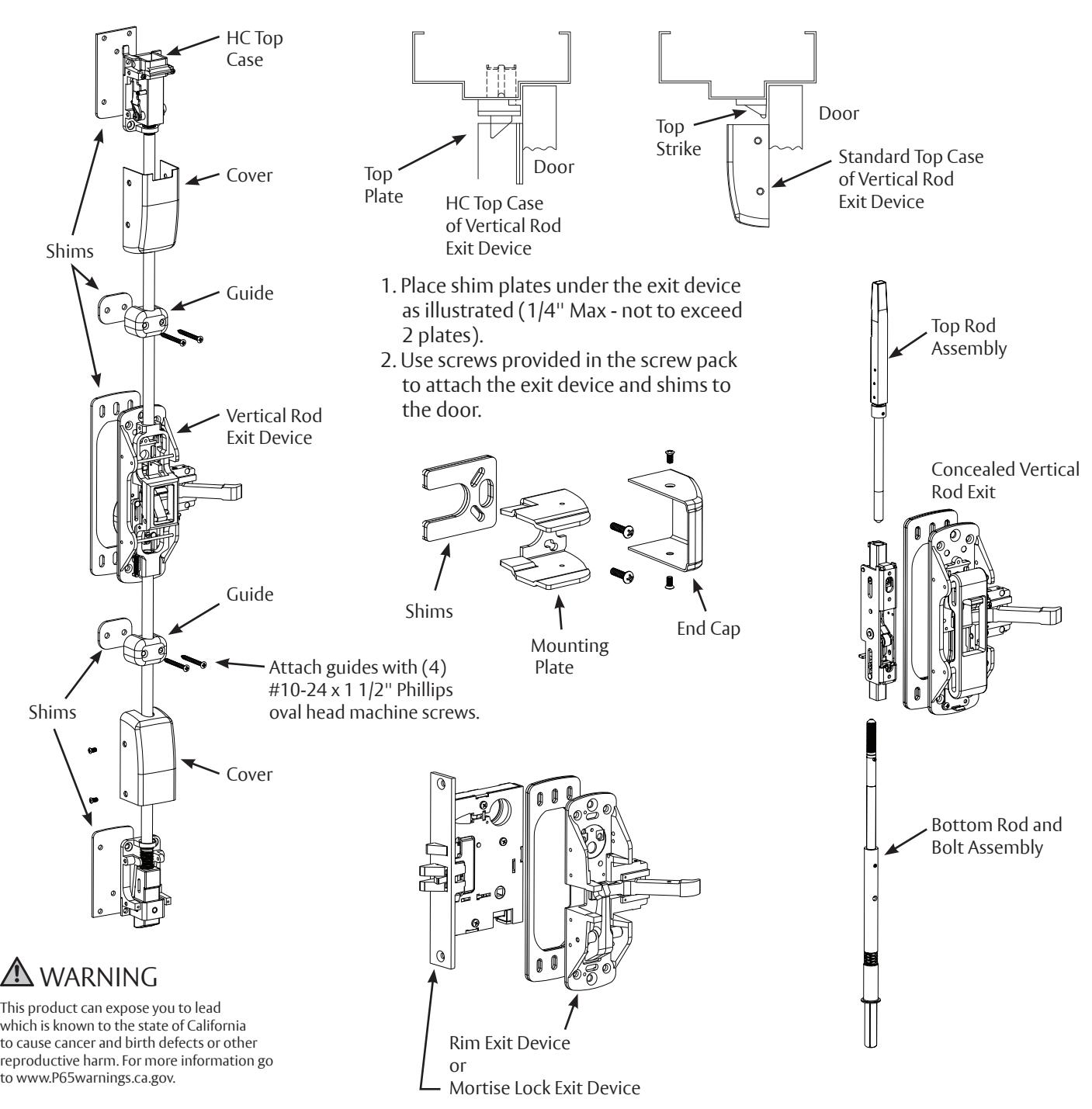

PED5000 Series Exit Device with Shim Kit

Corbin Russwin Shim Kit (Flush or Overlapping) for PED5000 Series Wide Stile Doors with Glass Bead Installation …_FM624 diagr

FM624 01/23 For installation assistance contact Corbin Russwin 1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com
