7/8 (22) 1-1/8 (29) Notes: 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template. 2. Dimensions are in inches (mm). 3. LHR door shown. (RHR opposite) 4. For door reinforcement see template T30800. 5. Prepare mounting holes when installing trim. 6. Provide adequate internal support to prevent door deformation after trim is bolted to the device. 7. Dimensions given about a centerline are symmetrical. 8. Unspecified radius 1/8 maximum. 9. Concealed Door Position Switch p/n: 708F989 is included with this product. Use and installation location to be specified by others. See SE LP10 (FM385) or SN200/210 (FM563) installation instructions for details. Inside Face Of Door OUTSIDE FACE OF DOOR Vertical Reference (Trim Centerline) CL X 1-3/8 (35) 1-3/8 (35) Note: Lever design prefix does not affect door prep. 9600 SN Series 1 1 7/16 (11) (4 Places) Ø3/8 (10) Wire Raceway From Hinge Edge Power Source To Ø1 (25) Hole Ø3/4 (19) Thru 1-1/2 (38) 1 (25) Ø1 (25) Thru
9600 SE LP10 Series
3 (76)
1-5/8 (41)
Ø3/32 (2) Inside Only (6 Places)
Ø3/32 (2) Outside Only (2 Places)
1/4
DO NOT SCALE DRAWING SUPERSEDES TEMPLATE NUMBER SHEET DATE
www.corbinrusswin.com
T31216
T31216-1 1 of 2 12/20
ASSA ABLOY

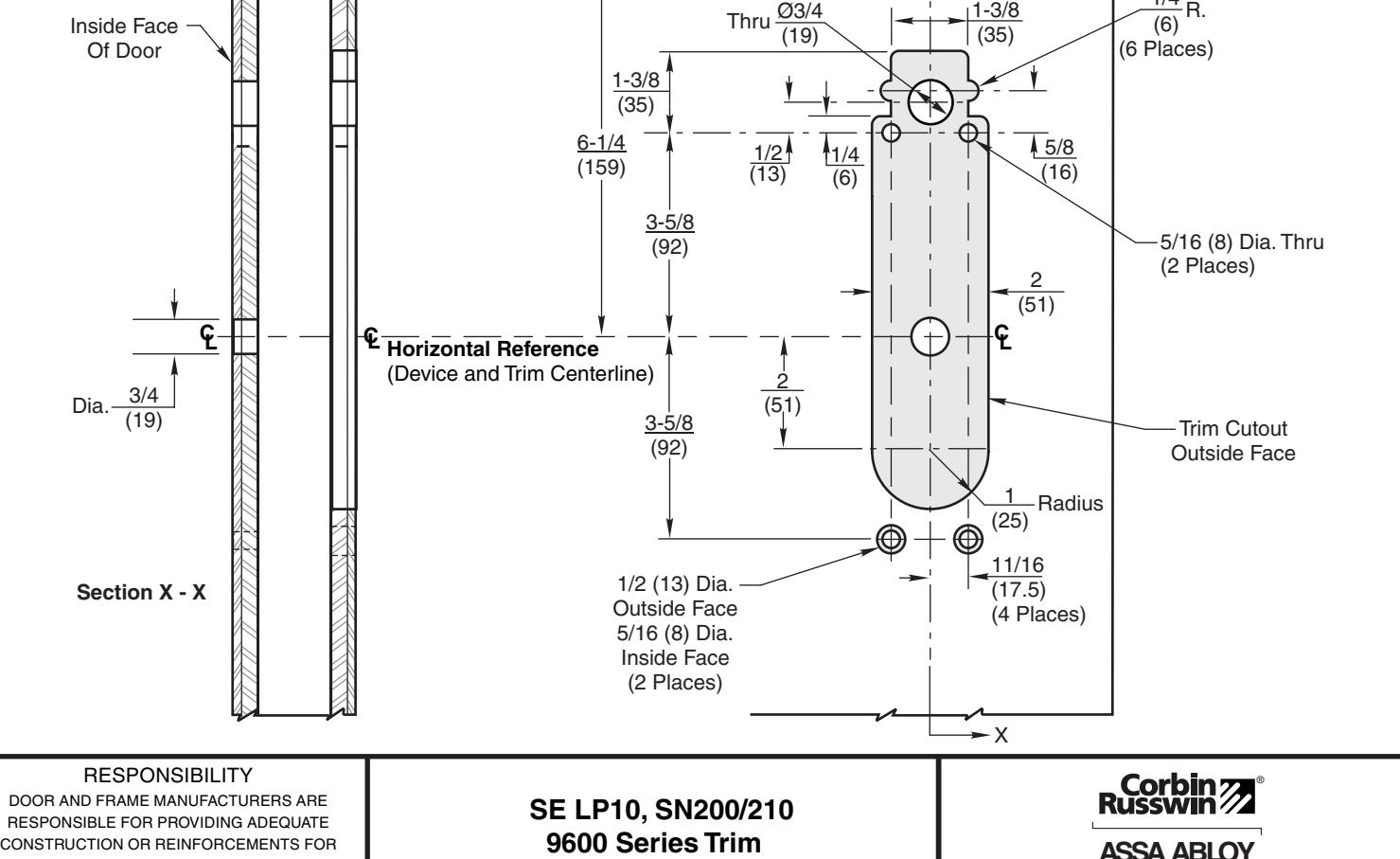

for ED5200N/ED5800N Series Exit Devices Metal Door Preparation
CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.
LHR Door RHR Door Inside Face of Door ONLY
RESPONSIBILITY
DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.
SE LP10, SN200/210 9600 Series Trim for ED5200N/ED5800N Series Exit Devices Metal Door Preparation
®
ASSA ABLOY
www.corbinrusswin.com
DO NOT SCALE DRAWING SUPERSEDES T31216
TEMPLATE NUMBER SHEET DATE T31216-1 2 of 2 12/20
