Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Dimensions are in inches (mm).
  • 3. LHR door shown. (RHR opposite)
  • 4. Provide adequate structural support to maintain door integrity during operation.
  • 5. Concealed Door Position Switch p/n: 708F989 is included with this product. Use and installation location to be specified by others. See SE LP10 (FM385) or SN200/210 (FM563) installation instructions for details.

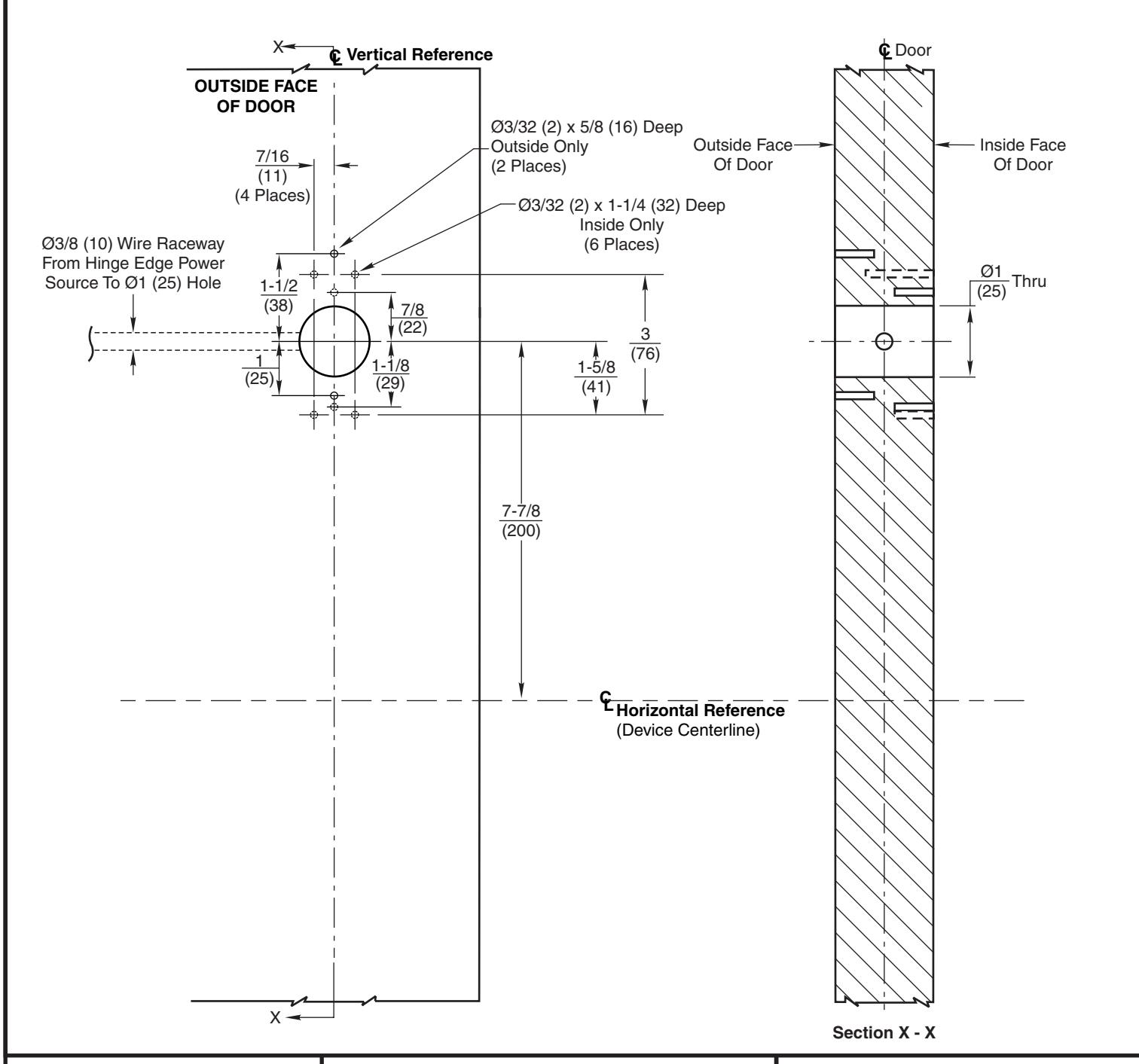

Corbin Russwin SE LP10, SN200, and SN210 Series ED5000N Series MELR Wood, Composite or Metal Doors Template_T31256 diagram on

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

SE LP10, SN200/210 for ED5000N Series MELR Exit Devices Metal, Wood or Composite Door Prep www.corbinrusswin.com

® ASSA ABLOY

DO NOT SCALE DRAWING SUPERSEDES

TEMPLATE NUMBER SHEET DATE T31256 1 of 2 12/20

RHR Door LHR Door Inside < Face of Door ONLY

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

SE LP10, SN200/210 for ED5000N Series MELR Exit Devices Metal, Wood or Composite Door Prep

Corbin Russwin SE LP10, SN200, and SN210 Series ED5000N Series MELR Wood, Composite or Metal Doors Template_T31256 image on p

SUPERSEDES

T31256

DO NOT SCALE DRAWING 2 of 2 12/20
