Strike lip lengths suit frame for 1-3/4" thick doors. Lip will vary for other door thicknesses.

Tolerances
Inches	(mm)
.005	(.127)
.015	(.381)

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

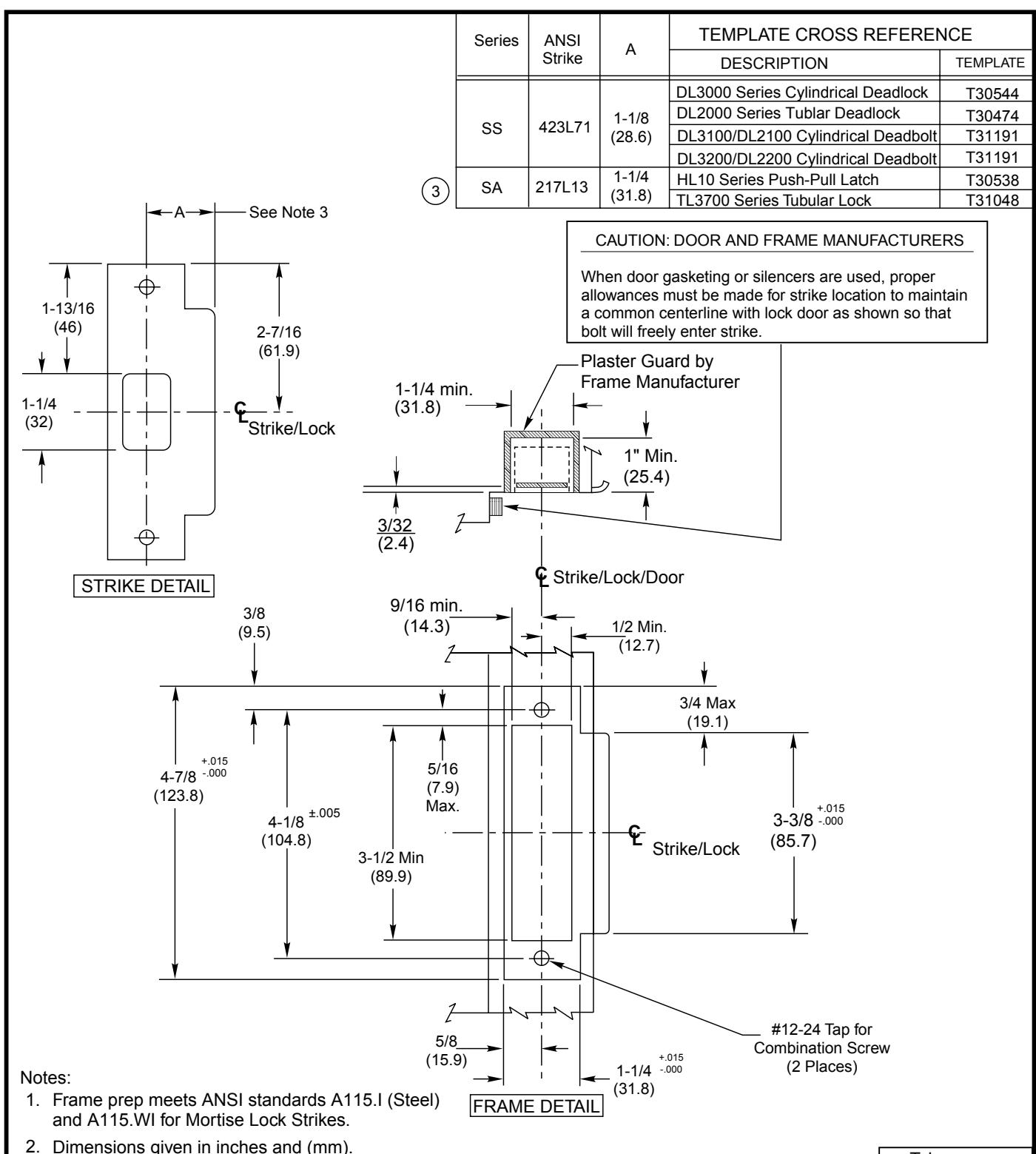

SA Series SS Series ANSI Strike (See Chart)

www.corbinrusswin.com Do Not Scale Drawing

Supersedes T30543-3 Dr. App. Date 06-11 Template Number T30543-4
