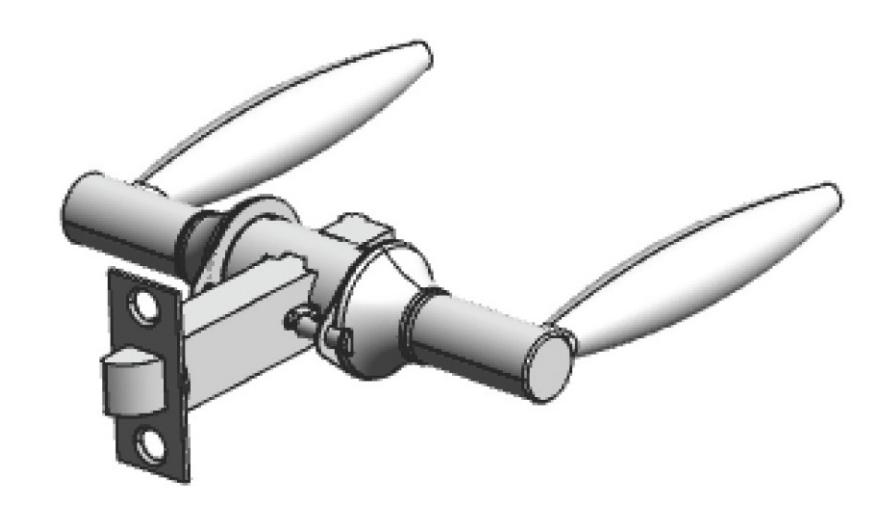

TL3700 Series

Roseless Tubular Lock

Designer Trim

Note

All templates can be found at www.corbinrusswin.com/ Library/Templates

WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

TL3700 Series

Designer Trim

Installation Instructions

TOC	Table of Contents
1	Full-Trim (TL3710 & 3720) & Half-Trim (TL3780) Installation 3
a	Install Strike (All) 3
b	Install Spring Housing (All) 3
c	Install Latch & Scalp (All) 4
d	Install Privacy Plate (TL3720 Only) 4
e	Install Adapter Plates (All) 5
f	Install Half-trim Adapter Plate (TL3780 Only) 5
g	Thread Collar (TL3710 & 3720) 5
h	Thread Collar (TL3780) 6
i	Install Half-Trim Collar (TL3780) 6
j	Install Outside Lever (TL3710 & 3720) 6
k	Install Inside Spindle and Adjustment Bolt (All) 6
l	Install Inside Lever With Dowel Screw (All) 7
2	Full Dummy Trim (TL3770) & Half Dummy Trim (TL3750) Installation 7
a	Insert Dummy Spindle (All) 7
b	Install Adapter Plate Assemblies (TL3770) 8
c	Install Adapter Plate Assemblies (TL3750) 8
d	Install Collar (TL3770) 8
e	Install Collar (TL3750) 8
f	Install Lever (TL3770) 9
g	Install Lever (TL3750) 9

1 Full-Trim (TL3710 & 3720) & Half-Trim (TL3780) Installation

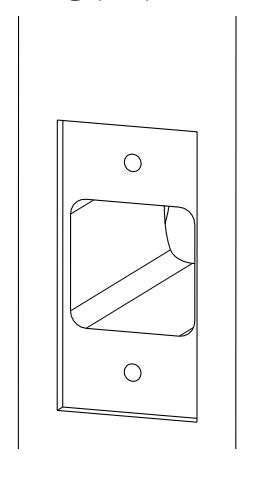

a Install Strike (All)

Install strike with supplied combination screws

b Install Spring Housing (All)

Figure 2

For installation assistance contact Corbin Russwin

1 Full-Trim (TL3710 & 3720) & Half-Trim (TL3780) Installation (cont.)

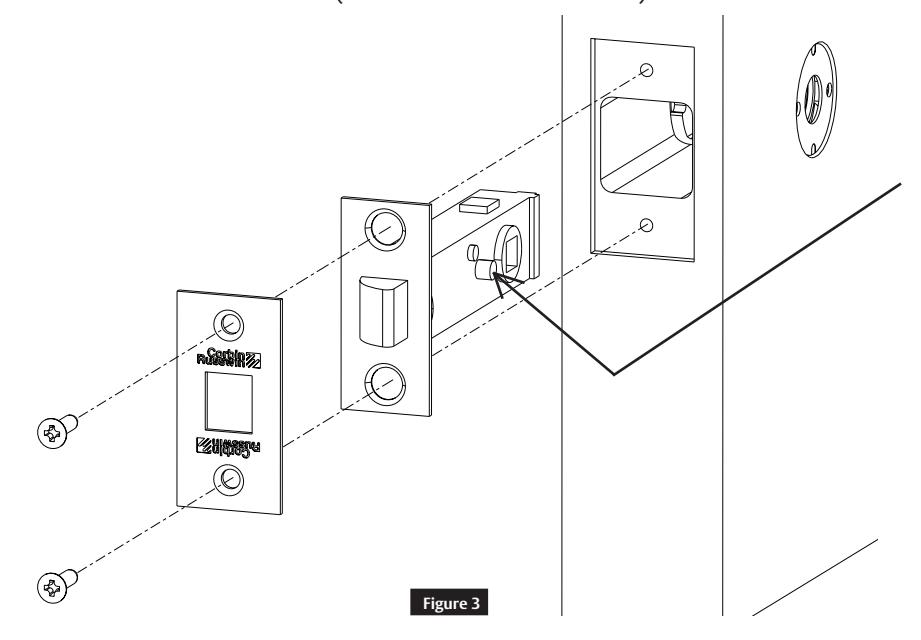

c Install Latch & Scalp (All)

Note:

• (TL3720 Only) The threaded button on the latch faces the inside of the door (For privacy button).
• Rotate latch head to match door hand (Round side hits strike first).

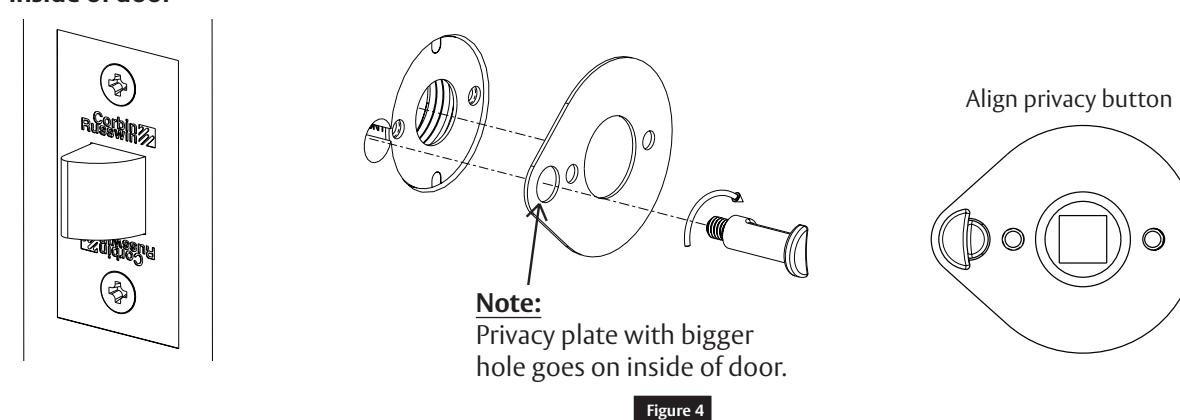

d Install Privacy Plate (TL3720 Only)

Install privacy plate and button on inside of door.

Inside of door

FM341 07/19

Designer Trim

Installation Instructions

1 Full-Trim (TL3710 & 3720) & Half-Trim (TL3780) Installation (cont.)

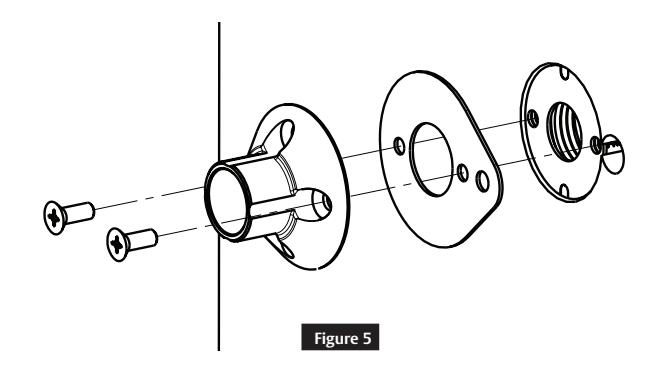

e Install Adapter Plates (All)

• Install adapter plates on both sides of door using 3/8" Flat Head Screws.
• Install outside privacy plate and adapter plate.

Outside of Door

f Install Half-trim Adapter Plate (TL3780 Only)

Install Half-trim adapter plate on non-trim side of door.

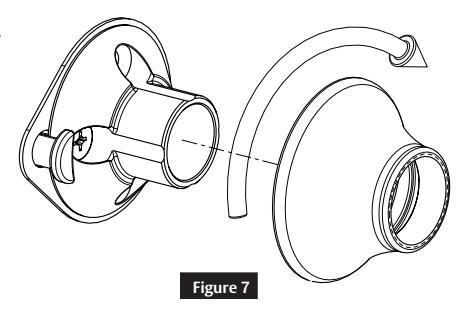

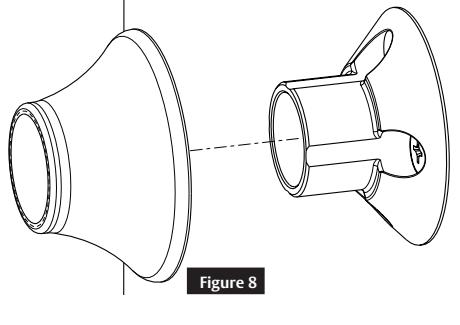

g Thread Collar (TL3710 & 3720)

Thread collar onto both sides of door using supplied rubber grip.

Note

For installation assistance contact Corbin Russwin

Make sure collar is tight up against door

1 Full-Trim (TL3710 & 3720) & Half-Trim (TL3780) Installation (cont.)

h Thread Collar (TL3780)

Thread standard collar on trim side of door.

Note

Make sure collar is tight up against door

i Install Half-Trim Collar (TL3780)

Install Half-trim collar on non-trim side of door.

• Make sure hole on Half-trim collar is facing down

j Install Outside Lever (TL3710 & 3720)

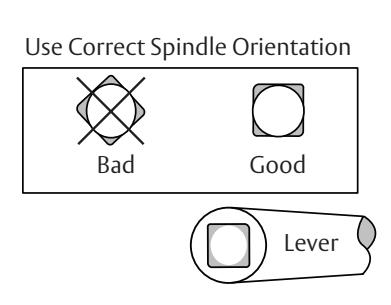

k Install Inside Spindle and Adjustment Bolt (All)

The short side of inside spindle (the distance from indent to end of spindle) goes into the latch

1 Full-Trim (TL3710 & 3720) & Half-Trim (TL3780) Installation (cont.)

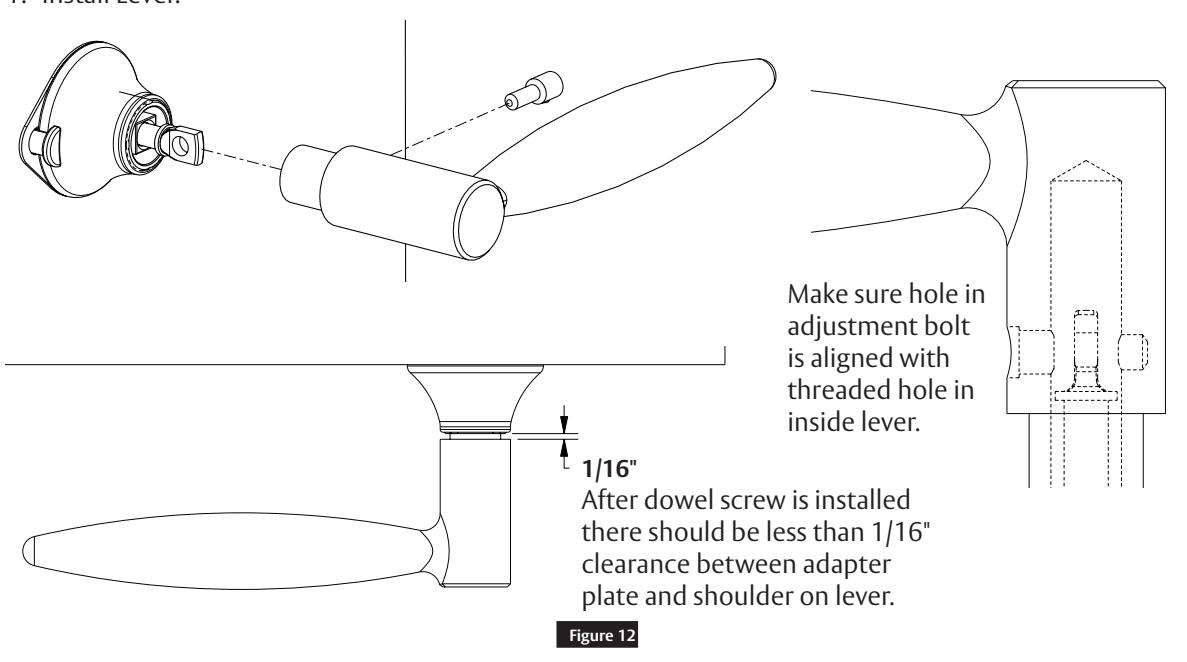

l Install Inside Lever With Dowel Screw (All)

1. Install Lever.

2. Rotate lever and make sure it returns. If lever binds, remove inside lever and un-thread adjustment bolt 1/2 turn.

2 Full Dummy Trim (TL3770) & Half Dummy Trim (TL3750) Installation

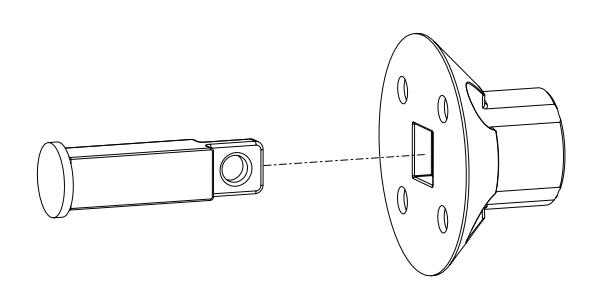

a Insert Dummy Spindle (All)

Insert dummy spindle into adapter plate.

• TL3770 use both adapter plates.

Note

Make sure dummy spindle is aligned.

Figure 13

2 Full Dummy Trim (TL3770) & Half Dummy Trim (TL3750) Installation (cont.)

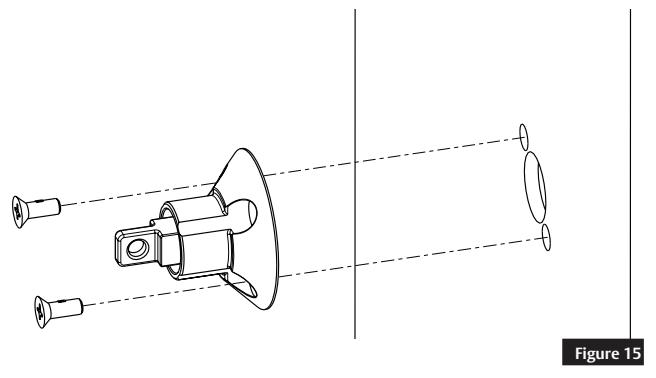

b Install Adapter Plate Assemblies (TL3770)

Note

Make sure dummy adapter plate is installed on non-trim side of door.

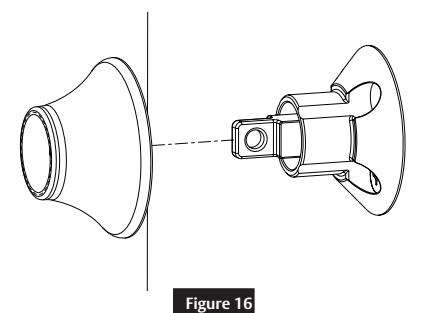

c Install Adapter Plate Assemblies (TL3750)

Note

Make sure dummy adapter plate is installed on non-trim side of door .

d Install Collar (TL3770)

Install collar on both sides of door using supplied rubber grip.

• Make sure collar is tight up against door.

e Install Collar (TL3750)

Install collar on trim side of door.

• Make sure collar is tight up against door.

FM341 07/19

Designer Trim

Installation Instructions

2 Full Dummy Trim (TL3770) & Half Dummy Trim (TL3750) Installation (cont.)

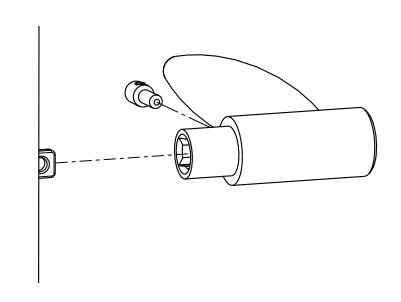

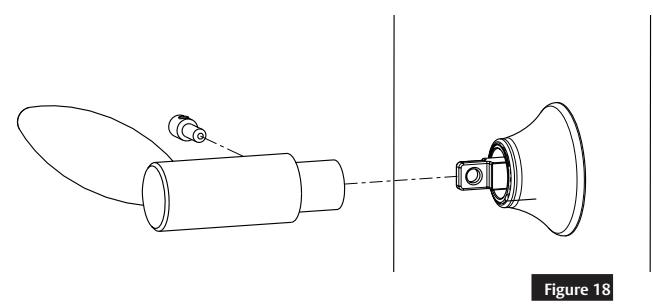

f Install TL3770 Lever

Install lever on both sides of door with dowel screws

g Install TL3750 Lever

Install lever on trim side of door with dowel screw

TL3700 Series

Designer Trim

Installation Instructions

Page intentionally left blank.

10

TL3700 Series

Designer Trim

Installation Instructions

Page intentionally left blank.

Corbin Russwin, Inc. 225 Episcopal Road Berlin, CT 06037 USA Phone: 800-543-3558 Fax: 800-447-6714 www.corbinrusswin.com
