Security and High-Security Cylinder

Product Catalog

Table of Contents

Overview 2
Applications3
Operation 4
Keyways 5-7
Cylinder Types 8-12
Cores13
Collars14
Quick Codes15
Accessories16

www.corbinrusswin.com

Overview

Description

Pyramid cylinders are available in both high security and security versions. The high security version is certified by Underwriters Laboratories to UL437 standards.

Pyramid High Security and Pyramid Security cylinders can be combined on the same master key system and one key can operate both cylinder types! Applications

Especially recommended for installations requiring superior protection against picking, drilling and other surreptitious entry. Ideally suited for Educational and Healthcare facilities, Industrial and Commercial buildings.

System Administration & Key Control

Key control will be maintained through compliance with Corbin Russwin's Security Policy: for a copy contact Key Systems Administration or visit our web site at www.corbin-russwin.com.

All new Pyramid systems will require a completed System Information Document (orders cannot be entered without this document). The fully executed original document will be kept on file at Corbin Russwin Key System Administration. For all subsequent orders a letter of authorization will be required if the product is shipped to an address other than what is recorded on the System Information Document and/ or if the address on the purchase order is different than what is listed on the System Information Document. Note that Key System Administration will not keep blanket letters of authorization on file.

Applications

Product Specification

All cylinders shall employ a locking mechanism that requires the use of a factory restricted key and is furnished with a minimum of 7 pins. High Security cylinders shall meet the requirements of UL437. Interchangeable cores shall meet the drill resistance and pick resistance of UL437.

Keys shall be nickel silver and furnished with a large bow.

Certifications

BHMA A156.5 Grade-1

E09211A* (Mortise) E09221A* (Rim)

E09231A* (Bored Lock Cylinders)

*A (suffix) refers to cylinders of pick and drill resistance.

UL Underwriters Laboratories Inc.

(UL437)BP8976 1020, 2020, 3020 Fixed Core (FC) series only

Finishes

Pyramid cylinder shells are available in all Corbin Russwin standard finishes. Plug faces are available in 606 and 626 only.

Keying

7 pin with two nickel silver change keys per cylinder. Pyramid cylinders may be uncombinated (specify UC)1 , master or grand master keyed to a specific facility.

System Specifications

• Pyramid systems are independent and cannot be keyed into existing and/or conventional systems.
• Pyramid cylinders are to be keyed to factory-generated bittings only.
• Cross keying is not available.

Features	Benefits
• High security protection (UL437) standard	• Underwriters Laboratory listing for resistance to picking & drilling
• 7-pin	• Greater master keying capabilities • Uses existing 6-pin interchangeable core housings • 1-1/4" (32mm) length for mortise cylinders
• Available with stainless steel pins	• Drill and pick resistant
• Large key bow	• Easy handling & special stamping options
• Thicker and stronger nickel silver keys	• Ideally suited for high usage & abusive applications
• User friendly	• No expensive dedicated equipment necessary for key cutting

Key Discard Policy & Warranty See page 16.

Construction Master Keying

Pyramid cylinders are not available construction master keyed. Interchangeable core jobs can be furnished with temporary construction cores. Temporary construction cores will be unrelated to the permanent system's master key. When the permanent cores are installed, the temporary construction cores are returned to Corbin Russwin for credit.

How to Order Example

• 1.Mortise lock with temporary construction core
  • Qty. ML2051 LSA 626 RHR CTP
• 2. Mortise cylinder with temporary construction core
  • Qty. 1080-114-A01-626-CTP
• 3.Permanent core ordered separately Qty. - AA1 - 8020 - 626

Pyramid Quick Codes2

PS Pyramid Security Fixed Core PCS Pyramid Security

Interchangeable Core

PHS Pyramid High Security Fixed Core PCHS Pyramid High Security

Interchangeable Core CTP3 Pyramid with Temporary

Construction Core CLP3 Pyramid Less Core

^1. UC cylinders are supplied, less keys, pins, springs and pin covers.

^2. When cylinders are ordered with locks.

^3. Pyramid cores to be ordered as a separate line item.

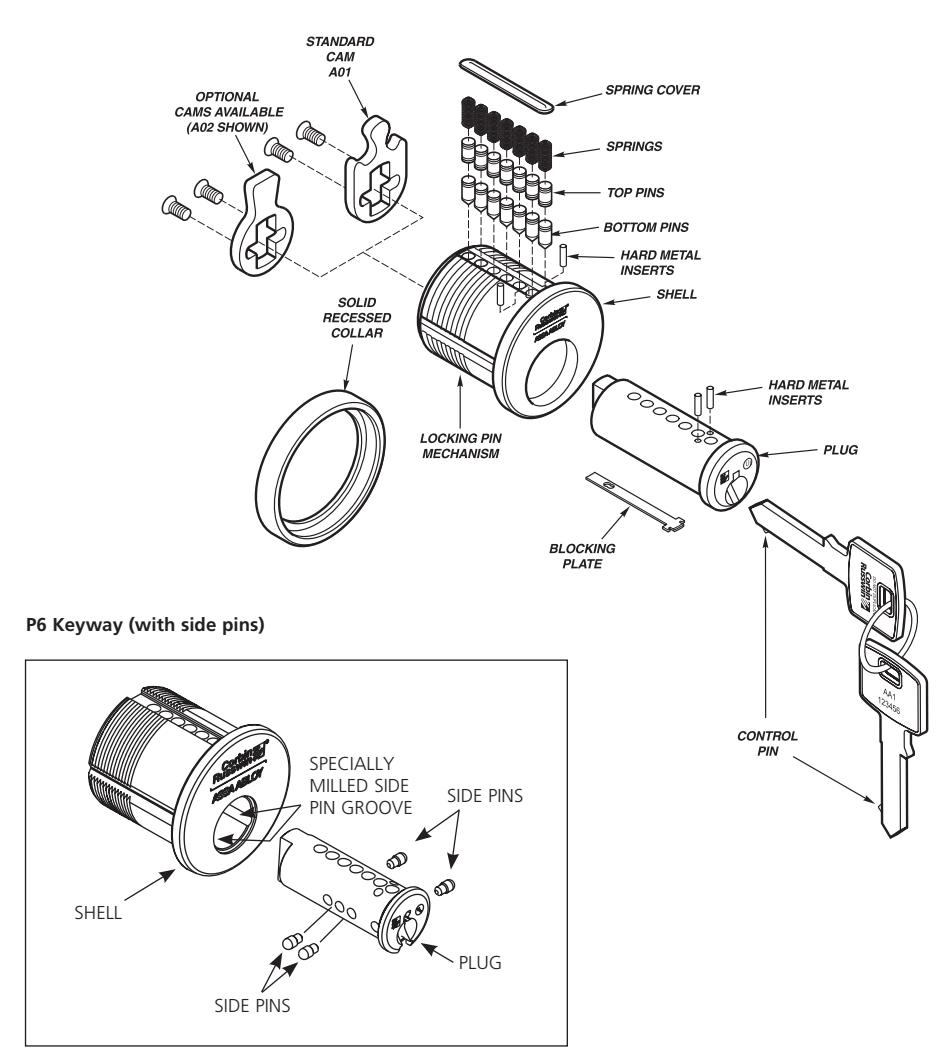

Operation

Performance Features

Shell

• Locking pin mechanism
• Hard metal inserts

Key

• Control pin

Plug

• Blocking plate
• Hard metal inserts

Pins & Springs

• Hardened stainless steel pick-resistant bottom pins*
• Hardened stainless steel pick-resistant top pins*
• Hardened stainless steel pick-resistant master pins (if required)*
• Hardened stainless steel pick-resistant build-up pins (if interchangeable core)*
• Springs

Collar

• Solid recessed (mortise)
• * Hardened stainless steel pins used for UL437 High Security versions only. Pyramid Security version uses nickel silver bottom pins and brass master, build-up and top pins.

Operation

Without Key Locking pin mechanism engages blocking plate and prevents the plug from turning.

With Key Key's control pin depresses the locking pin mechanism and allows the plug to turn.

Keyways

Keys

• Nickel silver
• Key Bow Type 28
• Ordering example: 7PIN-28-XXXX Keyway

• Ordering example P6 Keyway: 7PIN-28-XXXX-SPCXX

Keyway Side Pin Code

Back Side Stamping & Options

• Key set (VKC1), standard unless otherwise indicated
• System registry number will be stamped on upperlevel keys unless otherwise indicated
• Concealed key control (CKC2) available on cylinders
• Visual key control (VKC2 and VKC3) not available on cylinders. CKC3 also not available.

Note: Refer to Corbin Russwin's general catalog and price book for complete detailed information.

Keyway Security

Pyramid keyways will be determined by the supervisor of Key Systems Administration. Assignment will be based on the overall system requirements and geographic location to provide maximum protection to the owner. For security reasons, the keyway profiles are not shown.

Keyway Groups

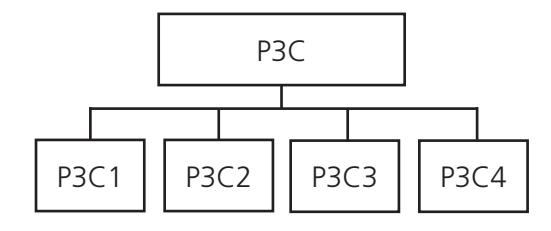

Keyway Group

Multi-section – P3C Keyway – P3C1 - P3C2 - P3C3 - P3C4

Keyway Group

All section – P3AB Multi-section – P3A - P3B Keyway – P3A1 - P3A2 - P3B1 - P3B2

Keyways

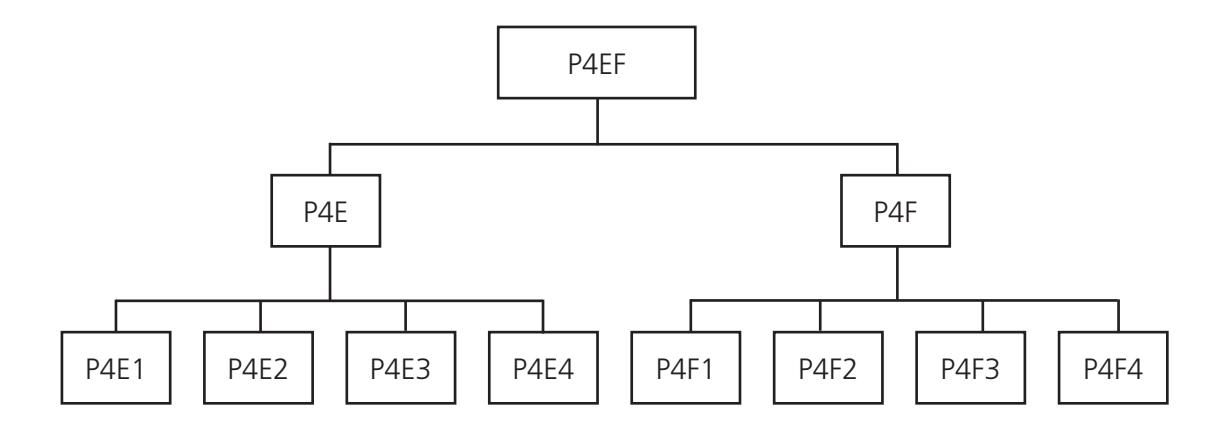

Keyway Group

All section – P4EF Multi-section – P4E - P4F Keyway – P4E1 - P4E2 - P4E3 - P4E4 - P4F1 - P4F2 - P4F3 - P4F4

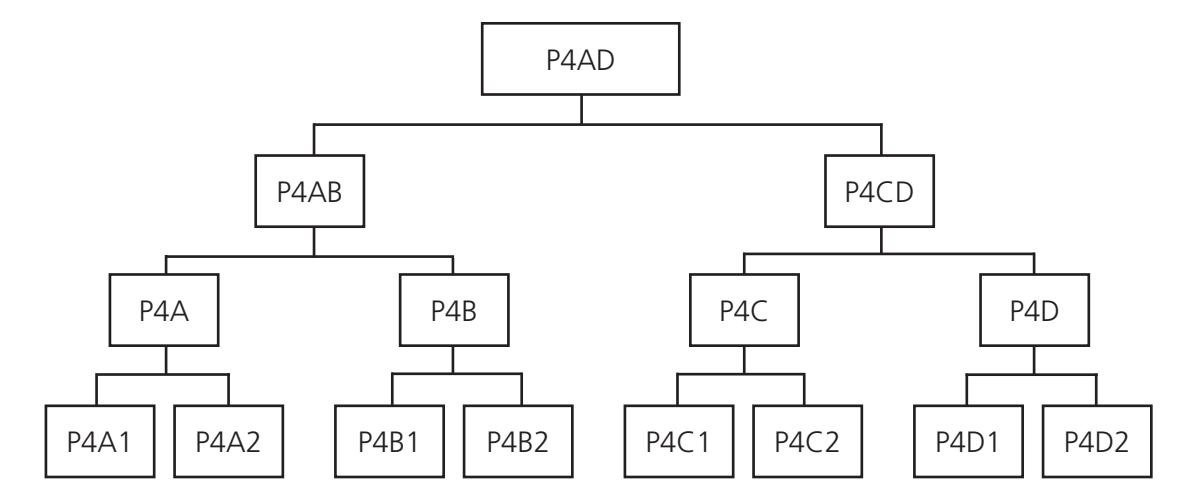

Keyway Group

All section – P4AD Multi-section – P4AB - P4CD Multi-section – P4A - P4B - P4C - P4D Keyway – P4A1 - P4A2 - P4B1 - P4B2 - P4C1 - P4C2 - P4D1 - P4D2

Keyways

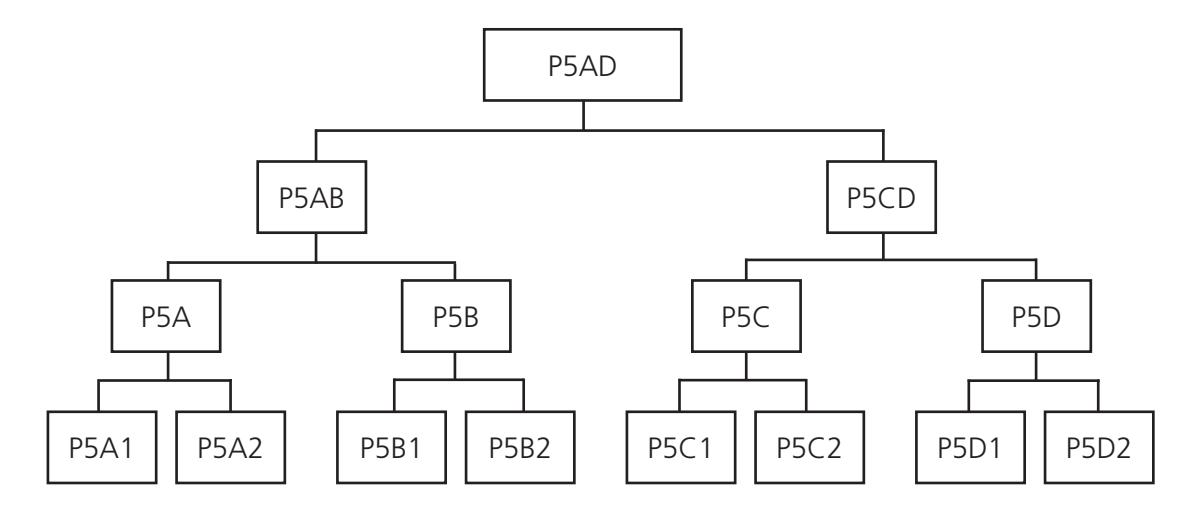

Keyway Group

All section – P5AD Multi-section – P5AB - P5CD

Multi-section – P5A - P5B - P5C - P5D

Keyway – P5A1 - P5A2 - P5B1 - P5B2 - P5C1 - P5C2 - P5D1 - P5D2

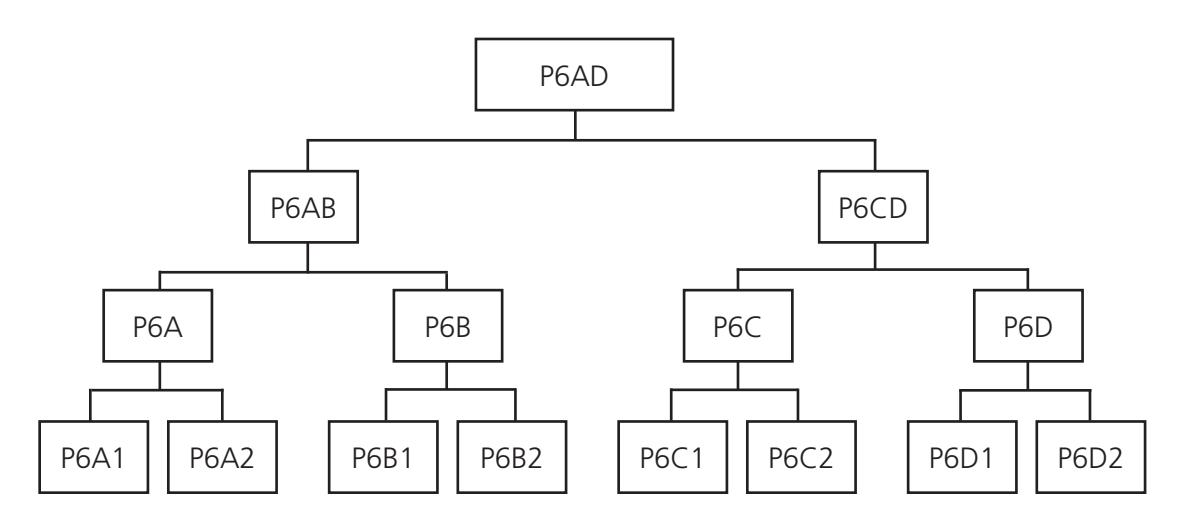

P6 Keyway Group*

All section – P6AD Multi-section – P6AB - P6CD Multi-section – P6A - P6B - P6C - P6D Keyway – P6A1 - P6A2 - P6B1 - P6B2 - P6C1 - P6C2 - P6D1 - P6D2

*Note: Each P6 keyway will have its own unique side pin code locations to be assigned by Key Systems Administration. The side pin code is not available with the other Pyramid keyway families.

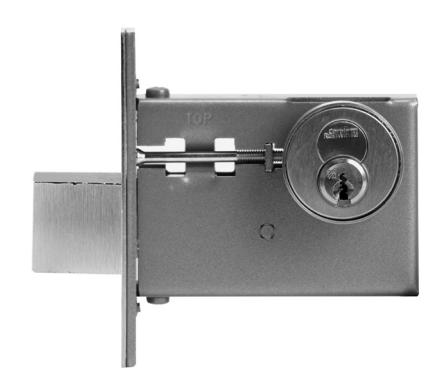

Mortise Cylinder

Mortise Cylinders

Mortise Exit Devices

Mortise Locks/Deadlocks

For use with all Corbin Russwin ML2000, ML2000HS and ML2200 (discontinued) mortise locks. DL4000 & DL3000 Series Deadlocks.

For use with ED7600 and ED6600 devices.

Fixed Core (FC)

Type	Length	Cam	Finish
1020 - High Security Mortise	1020/1027 - Non-IC (Fixed Core)	A01 - Cloverleaf	605 - Bright Brass
1027 - Security Mortise	112 - 1-1/2" (38mm) 114 - 1-1/4" (32mm)	A02 - Straight	606 - Satin Brass
1030 - High Security IC Mortise complete	*See note #3		611 - Bright Bronze
1037 - Security IC Mortise complete	1030/1037/1070 IC	A03 - Adams Rite® MS	612 - Satin Bronze
1070 - Housing only	114 - 1-1/4" (32mm) 138 - 1-3/8" (35mm)	A04 - DL4000 Series	613 - Dark Oxidized Satin Bronze - oil rubbed
	112 - 1-1/2" (38mm 134 - 1-3/4" (44mm)	A05 - Adams Rite® 4070	613E - Dark Oxidized Satin Bronze Equivalent
		A06 - Schlage® Cloverleaf	618 - Bright Nickel Plated
		A07 - DL4100	619 - Satin Nickel Plated
			622 - Flat Black Coated
		A62 - 900 KRM/MR Straight	625 - Bright Chromium Plated
		A92 - See note #1	626 - Satin Chromium Plated
		A93 - See note #2	629 - Bright Stainless Steel
			630 - Satin Stainless Steel

How to Order Examples High Security Mortise Cylinder Ordered Separately

Quantity	Keyset	Cylinder	Length	Cam	Finish
50	AA1	1020	114	A01	605

Mortise Cylinder with a Pyramid Security Interchangeable Core

Quantity	Keyset	Cylinder	Length	Cam	Finish
50	AA1	1037	114	A01	605

All cylinder plugs are provided in 606, 626, or BSP finish

rubbed

722 - Black oxidized bronze, oil

BSP - Black Suede Powder Coat

Note #1 - Not available IC.

Note #2 - For obsolete Corbin® 610 and Russwin® 1403 series deadlocks.

Note #3 - For ML2000 applications with door width exceeding 2-1/2" up to 3" in thickness, use IC cylinders.

Mortise Lock with a Pyramid Fixed Core High Security Cylinder

Quantity	Keyset	Series/Function	Trim	Finish	Hand	Pyramid Quick Code
50	AA1	ML2051	LSA	626	RHR	PHS (PS for Security version)

Mortise Lock with a Pyramid Interchangeable Core High Security Cylinder

Quantity	Keyset	Series/Function	Trim	Finish	Hand	Pyramid Quick Code
50	AA1	ML2051	LSA	626	RHR	PCHS (PCS for Security version)

Exceptions

Pyramid cylinders are not available for the following: ML2029, ML2029HS, ED7600 - applications over 2-1/4" thick, ED6600 - applications over 1-3/4" thick.

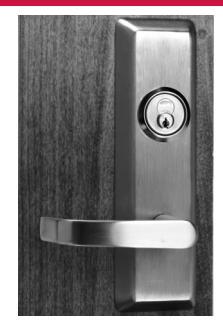

Rim Cylinder

Rim Cylinders

For use with Corbin Russwin exit devices and exit device trims.

Conventional Fixed Core

(FC) Interchangeable Core (IC)

			Availability
Type	Length		IC	Finish
	058-5/8" (16mm) Tailpiece	X	X	605 - Bright Brass
	114 - 1-1/4" (32mm) M61 & M62 option for ED8200 and ED9200 exit device alarms		X	606 - Satin Brass 611 - Bright Bronze 612 - Satin Bronze
3020 - High Security Rim Cylinder	138 - 1-3/8" (35mm) M61 & M62 option for ED8200 and Obsolete ED9200 exit device alarms	X		613 - Dark Oxidized Satin Bronze - oil rubbed
3027 - Security	178 - 1-7/8" (48mm) (Std. Door)		X	613E - Dark Oxidized Satin Bronze Equivalent
Rim Cylinder	178V - 1-7/8" (48mm) vertical		X	618 - Bright Nickel Plated
3030 - High Security IC Rim Cylinder	200 - 2" (51mm)	X		619 - Satin Nickel Plated
3037 - Security IC	200N - 2" (51mm) ED4000/ED5000 Night Latch Function	X		622 - Flat Black Coated 625 - Bright Chromium Plated
Rim Cylinder	200V - 2" (51mm) vertical	X		626 - Satin Chromium Plated
3070 - Housing only	312 - 3-1/2" (89mm)	X		629 - Bright Stainless Steel
	312V - 3-1/2" (89mm) vertical	X		630 - Satin Stainless Steel 722 - Black oxidized bronze, oil rubbed
	318 - 3-1/8" (79mm)		X	BSP - Black Suede Powder Coat

How to Order Examples

High Security Rim Cylinder Ordered Separately

Quantity	Keyset	Cylinder	Length	Finish
50	AA1	3020	200	605

Rim Cylinder with a Pyramid Security Interchangeable Core

Quantity	Keyset	Cylinder	Length	Finish
50	AA1	3037	178	605

Exit Device with a Pyramid Fixed Core High Security Cylinder

Quantity	Keyset	Series/Function	Trim	Finish	Hand	Pyramid Quick Code
50	AA1	ED5200	L955	630	RHR	PHS (PS for Security version)

Exit Device with a Pyramid Interchangeable Core High Security Cylinder

Quantity	Keyset	Series/Function	Trim	Finish	Hand	Pyramid Quick Code
50	AA1	ED5200	L955	630	RHR	PCHS (PCS for Security version)

All cylinder plugs are provided in 606,

626, or BSP finish

Component Cylinder

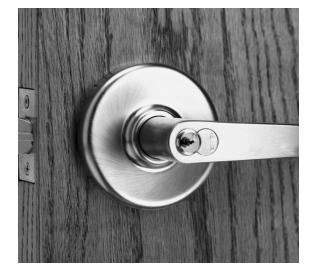

Key-in-Lever / Knob Cylinder

For use with Corbin Russwin CLX3300, CL3300, CL3500, CL3700, and CL3800 lever locks, CK4200 and CK4700 knob locks and UT5200 unit locks. 2020/2027 series cylinders can also be used on CL3400, CL3600, CL3800 and CL3900 (discontinued) locks.

Conventional Fixed Core (FC)

Interchangeable Core (IC)

Type	Lockset Series	Finish
	033 - CL3300, CL3500, CL3600 (June 2000 and after) and CL3800 Lever
	033H - G10 Exit Device Knob Trim
2020 - High Security Key-in-Lever/Knob	034 - CLX3300 Lever, CL3400 Lever - CL3600 Lever (Before June 2000) A5, N5 Obsolete ED8000 Trims	606 - Satin Brass
	037 - CL3700 Lever - CK4700 Knob	626 - Satin Chromium Plated
2027 - Security	038 - CL3800 Lever (Manufactured 1993-1997)	BSP - Black Suede Powder Coat
Key-in-Lever/Knob	039 - CL3900 Lever (1-3/8" - 1-3/4" door)
	039L - CL3900 Lever (2" - 2-1/4" door)
	051 - G3 Exit Device Knob Trim
	052 - CK4200 Knob - UT5200 Knob and Lever

Key-in-Lever/Knob for other Manufacturers' Products

Cylinder Descriptions
High Security (PHS)	Security (PS)	Tailpiece Orientation	Used for:
2220-001-P21	2227-001-P21	Vertical	Schlage® D Series Levers Arrow H® Series Knobs and Levers Sargent® 10 line (Enlarge Lever Hole)
2220-002-P21	2227-002-P21	Horizontal	Schlage® D Series Knobs
2220-001-P22	2227-001-P22	Vertical	Schlage® AL and ND Series Levers
2220-002-P22	2227-002-P22	Horizontal	Schlage® A Series Knobs (Ply, etc.)
2220-002-P23	2227-002-P23	Horizontal	Schlage® A Series Knobs (ORB only)

How to Order Examples

High Security Component Cylinder Ordered Separately

Quantity	Keyset	Cylinder	Lockset Series	Finish
50	AA1	2020	033	626

Cylindrical Lock with a Pyramid Fixed Core High Security Cylinder

Quantity	Keyset	Series/Function	Trim	Finish	Pyramid Quick Code
50	AA1	CL3357	PZD	626	PHS (PS for Security version)

Cylindrical Lock with a Pyramid Interchangeable Core High Security Cylinder

Quantity	Keyset	Series/Function	Trim	Finish	Pyramid Quick Code
50	AA1	CL3357	PZD	626	PCHS (PCS for Security version)

Exceptions

Pyramid cylinders are not available for the following: CL3329, CL3629, CK4229, CK4451, CK4455, CK4457, CK4429, CK4482, DL2100 series, DL3100 series.

Bump Resistant Cylinders

Protect your building from unwanted entry with Corbin Russwin bump-resistant cylinders. Our bump-resistant cylinders deter bumping without compromising the cylinder's structural integrity and strength. This option is available with Corbin Russwin Pyramid security and high-security cylinders on our mortise, cylindrical and exit device hardware.

Recently, a lot of information has been circulating about bumping, a technique used to defeat cylinders. Although this method has been around for a number of years, the internet has increased public awareness. Selecting cylinders with the BRP option will make the cylinders bump resistant.

Although BHMA has yet to establish bump-resistance standards, Corbin Russwin Bump Resistant Cylinders were tested and verified by an independent testing lab. They conclusively resisted bumping attack and did not allow entry. Verification and testing data is available upon request.

Bump-Resistant Cylinders:

• Specify "BRP"

Retrofit:

• Convert existing cylinders with Bump-Resistant Top Spool Pins

Features

Bump-resistant cylinders are designed for use with all Corbin Russwin locking hardware:

• Cylindrical locks
• Mortise locks
• Exit devices
• Access control locks

Bump-Resistant Top Spool Pins

• Unit locks
• Auxiliary locks

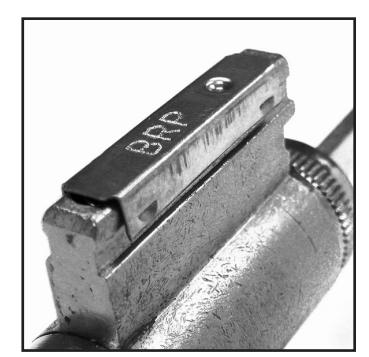

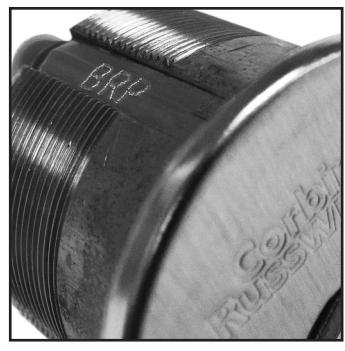

Factory bitted, a symbol BRP is stamped onto pin cover/slides. Interchangeable core cylinders are not available with bump-resistant pinning.

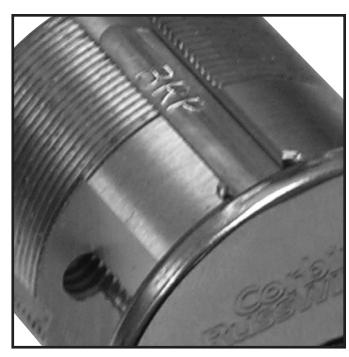

BRP pinned mortise cylinder

BRP pinned rim cylinder

BRP pinned key-in-lever cylinder

Description	Part Number	Qty
Pyramid A	628F10 - 7 - 142	Vials of 100 pcs.
Pyramid C	628F10 - 7 - 236	Vials of 100 pcs.

Bump Resistant Cylinders

Specify
605
606
611
612
613
613E
618
619
622
625
626
629
630
722
BSP

All cylinder plugs are provided in 606, 626, or BSP finish

Cores

Interchangeable Core

For use with Corbin Russwin's 6-pin Interchangeable Core housings & shells.*

Type	Finish
8020- High Security	606 - Satin Brass
IC core *	626 - Satin Chromium Plated
8027- Security IC core *	BSP - Black Suede Powder

^* Note: Corbin Russwin 6-pin Interchangeable Core housings 1070 (mortise) & 3070 (rim) will accept 8020/8027 cores.

How to Order Examples

Security Interchangeable Core Ordered Separately

Quantity	Keyset	Cylinder	Finish
50	AA1	8027	626

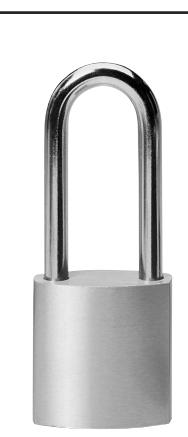

Padlocks

Used with Pyramid Interchangeable Cores. (PL5030, PL5130, PL5037, PL5137)

How to Order Examples

Padlock with a Pyramid High Security(8020) Interchangeable Core Cylinder

Quantity	Keyset	Series/Function	Shackle Length
50	AA1	PL5030	258

^* Refer to general catalog for miscellaneous options.

Padlock with a Pyramid Security(8027) Interchangeable Core Cylinder

Quantity	Keyset	Series/Function	Shackle Length*
50	AA1	PL5037	258

Deadlocks

For use with Pyramid mortise cylinders. See page 8. Available in all standard finishes.

How to Order Examples

Deadlock with a Pyramid Fixed Core High Security Cylinder

Quantity	Keyset	Series/Function	Finish	Hand	Pyramid Quick Code
50	AA1	DL4013	626	RHR	PHS (PS for Security version)

Deadlock with a Pyramid Interchangeable Core High Security Cylinder

Quantity	Keyset	Series/Function	Finish	Pyramid Quick Code
50	AA1	DL4013	626	PCHS (PCS for Security version)

Collars

Collars

• 1-3/4" (44mm) thick door. For other door thicknesses and trim considerations, contact Corbin Russwin Technical Product Support.
• Mortise Cylinders 1-1/4" (32mm) length

	Spring					Solid				Surface Mount
	605F43	447F41	270F15	598F89	447F42	610F02	447F43	654F07	267F97	422F88
Mortise Cylinder	(.350)	(.030)	(.156)	(.156)	(.172)	(.289)	(.375)	(.350)	(.635)	(.000)
High Security Separately (1020, 1030)						X
Security Separately (1027, 1037) Mortise Lock	X
Single Cylinder
Sectional						X
N Escutcheon				X
P Escutcheon				X
M Escutcheon				X
R Escutcheon		X
T Escutcheon (no collar required)
Double Cylinder
Sectional							X
N Escutcheon						X
P Escutcheon						X
M Escutcheon						X
R Escutcheon					X
T Escutcheon					X
Auxiliary Locks
DL4011, 4013, 4017					X
DL4012							X
Rim Cylinder
High Security Separately (3020, 3030)										X
Security Separately (3027, 3037)										X
Exit Devices
ED4000-5000 Series
700 Trim, F2, F3, T13, P9								X
K1			X
700M Trim, F2M, F3M, T13M						X
900 Trim										X
Cylinder Dogging			X
ED6000 Series
N3, G4, T3			X
N4M, G5M										X
T7M, T9M				X
ED7000 Series
P4, P6, P7		X
C4, 03, 05									X
T11			X
ED8000 Series
KO										X
F1, P1, P2 (no collar required)

Quick Codes

Cylinder Options

Description	Quick Code
Bump-resistant cylinders	BRP

Keying Options

Description	Quick Code
0-bitted with 2 blank keys	(standard)
Keyed random	KR
Keyed alike	KA
Keyed to specific bitting (specify bitting)	KS
Uncombinated	UC1
Visual key control (VKC)
No Stamping	VKC0
Keys only	VKC1
Concealed key control (CKC)
CKC cylinders with VKC keys	CKC2

^1. High security cylinder not available UC

Key Quantity Options

2 change keys per cylinder	(standard)
Other than 2 change keys per cylinder (i.e. customer requests 6 change keys per cylinder)	KY# (i.e., KY6)
No change keys	KY0
Master keys (if required)	Specify Qty.
Control keys (if required)	Specify Qty.
CMK keys (if required)	Specify Qty.
CMK control keys (if required)	Specify Qty.
SKD control keys (if required)	Specify Qty.
Special purpose keys, i.e., ENG (if required)	Specify Qty.

Collar Options - Mortise and Rim Cylinders Only

Description	Quick Code
Collar packet (549F52 + 253F97)	428F66
Rim collar, flush mount	255F53
Rim collar, flush mount (master ring)	255F54
Rim collar, surface mount (standard for rim cylinders)	422F88
Solid collar030	447F41
Solid collar031 (master ring)	447F44
Solid collar090 (VR trim only)	700F53
Solid collar094	261F54
Solid collar094 (master ring)	261F55
Solid collar156	270F15
Solid collar156	598F89
Solid collar172 (tapered security collar)	416F39
Solid collar172	447F42
Solid collar172 (master ring- standard for MR 118 cylinders)	447F45
Solid collar221	610F01
Solid collar289	610F02
Solid collar312	303F25
Solid collar350	654F07
Solid collar375	447F43
Solid collar375 (master ring)	447F46
Solid collar500	609F36
Solid collar510	134F05
Solid collar550	654F08
Solid collar635	267F97
Solid collar650	609F37
Solid collar749	399F47
Solid collar850	609F38
Spring collar150 (standard for 118 cylinders)	253F97
Spring collar219	549F52
Spring collar350 (standard for 114 cylinders)	605F43

Accessories

Pin Kit and Service Tools

Each pin kit has all the pins necessary to combinate standard and interchangeable core Pyramid cylinders. Includes tweezers, plug follower, key gauge and combinating instructions.

How to Order

High Security Pin Kit PK-20-HS

Security Pin Kit PK-20-PS

Follower

How to Order Separately

CT20

Tweezers

How to Order Separately

CT19

Key Gauge

How to Order Separately CT20K

Pyramid Bump Resistant Pins

How to Order Separately Vials of 100 Pins

Size A = 628F107142 Size C = 628F107236

Pyramid P6 Side Pins How to Order Separately

Vial of 20 Pins 630F494

Pyramid Key Discard Policy

It is essential that cut keys and key blank distribution policies and procedures be maintained and enforced for all Pyramid products.

Authorized Pyramid Distributors

Pyramid is a system-based product. An authorized distributor can stock Pyramid upon specific written authorization from the primary systems administrator of the facility. Authorized distributors have the ability to receive product, key product, cut keys and distribute the product to the facility.

Authorized Pyramid distributors who carry inventory for a

specific system must provide valid receipts and disbursements of all Pyramid products, specifically key blanks/cut keys. All Pyramid key blanks to be maintained in the possession of an authorized Pyramid distributor must be accounted for. Any defective, incorrectly cut or damaged Pyramid key blanks must be retained in the distributor's possession to be reviewed and collected by a representative of ASSA ABLOY Door Security Solutions.

Pyramid Primary System Administrators

Any defective, incorrectly cut or damaged Pyramid key blank must be destroyed.

Pyramid Key Warranty

Pyramid key blanks are covered by a 5-year warranty as outlined in the current list price book.

Notes

The ASSA ABLOY Group is the global leader in access solutions. Every day, we help billions of people experience a more open world.

ASSA ABLOY Opening Solutions leads the development within door openings and products for access solutions in homes, businesses and institutions. Our offering includes doors, frames, door and window hardware, mechanical and smart locks, access control and service.

For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com.

In U.S.

Corbin Russwin Architectural Hardware 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 www.corbinrusswin.com

In Canada

ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 800-461-8989 www.assaabloydss.ca
