Positive Pull Stop Retrofit Kit Used with HPSK Mortise and HP3000 Tubular Locks

HPSK Mortise Lock Shown

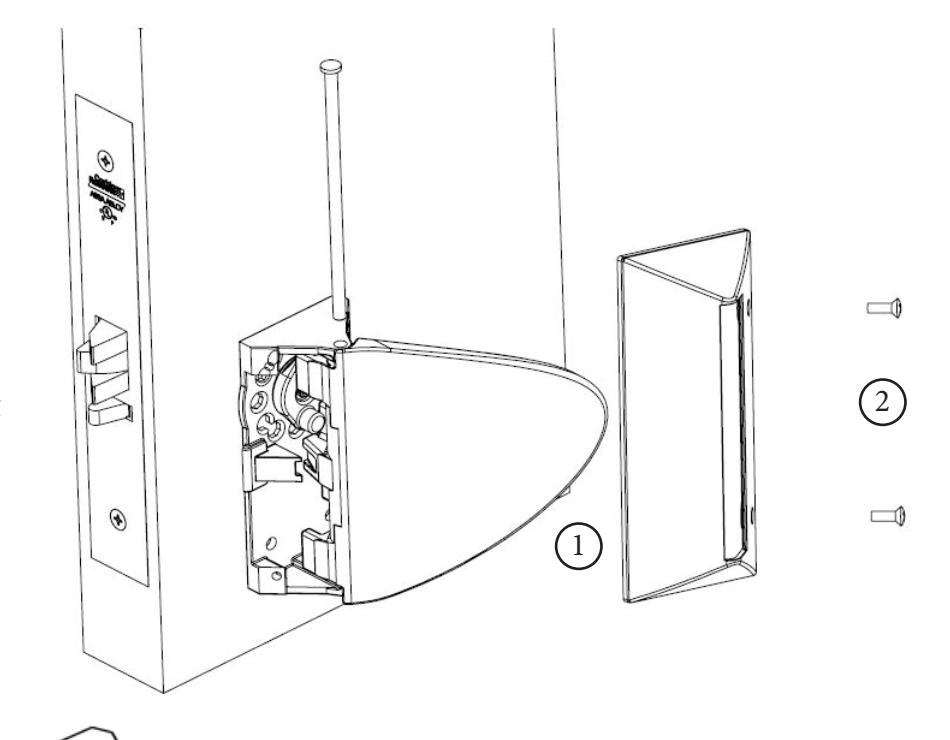

  • Step 1: Remove the cover and the paddle on the pull side of the
  • Step 2: Remove both surface mount screws from pull side of door.

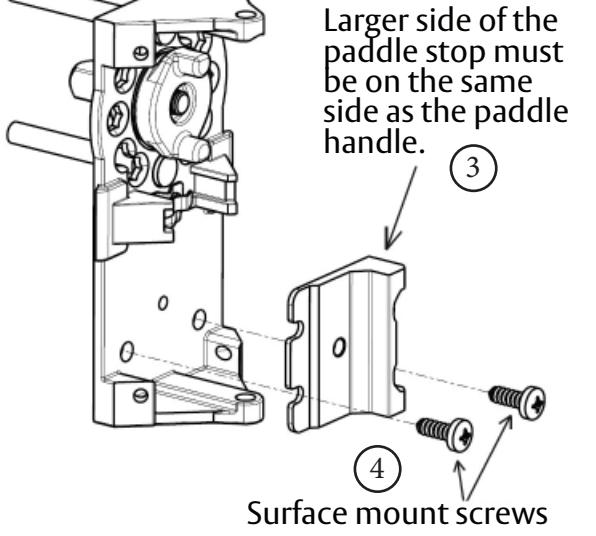

  • Step 3: Place the paddle stop so that larger side is underneath the paddle.
  • Step 4: Re-install both surface mount

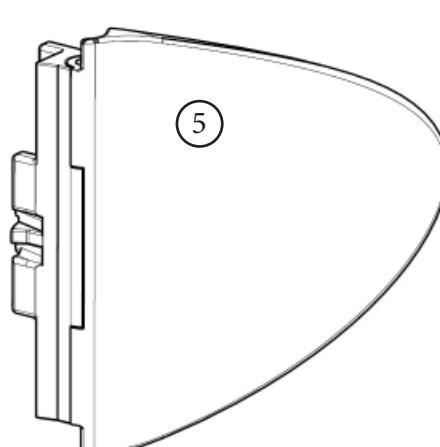

  • Step 5: Re-Install paddle.
  • Step 6: Check to make sure the paddle retracts the latch when pushed, but not when pulleď.
  • Step 7: Re-Install the cover.

Corbin Russwin Positive Pull Stop Retrofit Kit for HPSK ML2000 and HP3000 Series Mortise and Tubular Locks Insta…_FM348 image

Corbin Russwin Positive Pull Stop Retrofit Kit for HPSK ML2000 and HP3000 Series Mortise and Tubular Locks Insta…_FM348 image

Corbin Russwin Positive Pull Stop Retrofit Kit for HPSK ML2000 and HP3000 Series Mortise and Tubular Locks Insta…_FM348 image

Corbin Russwin Positive Pull Stop Retrofit Kit for HPSK ML2000 and HP3000 Series Mortise and Tubular Locks Insta…_FM348 image

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.
