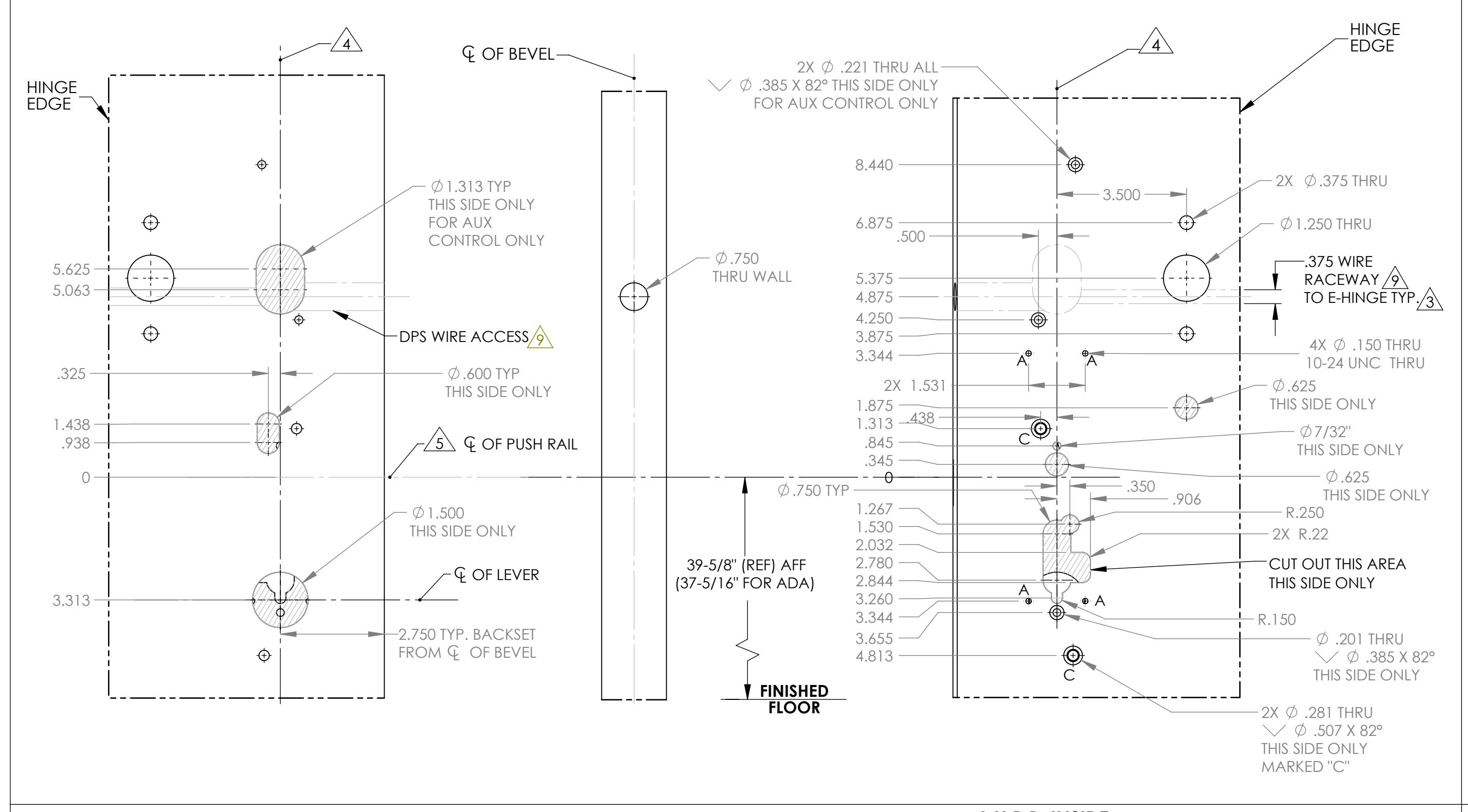

METAL DOOR

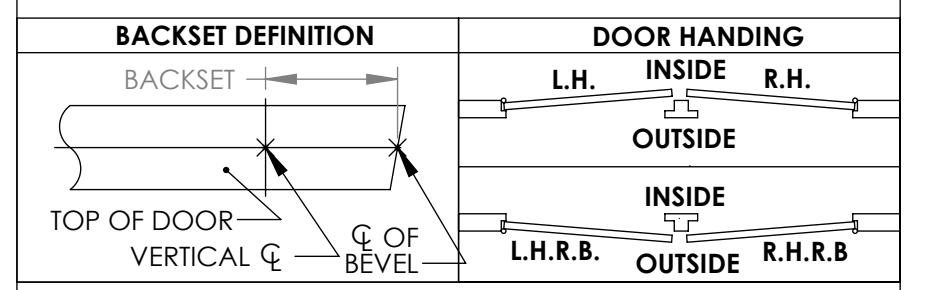

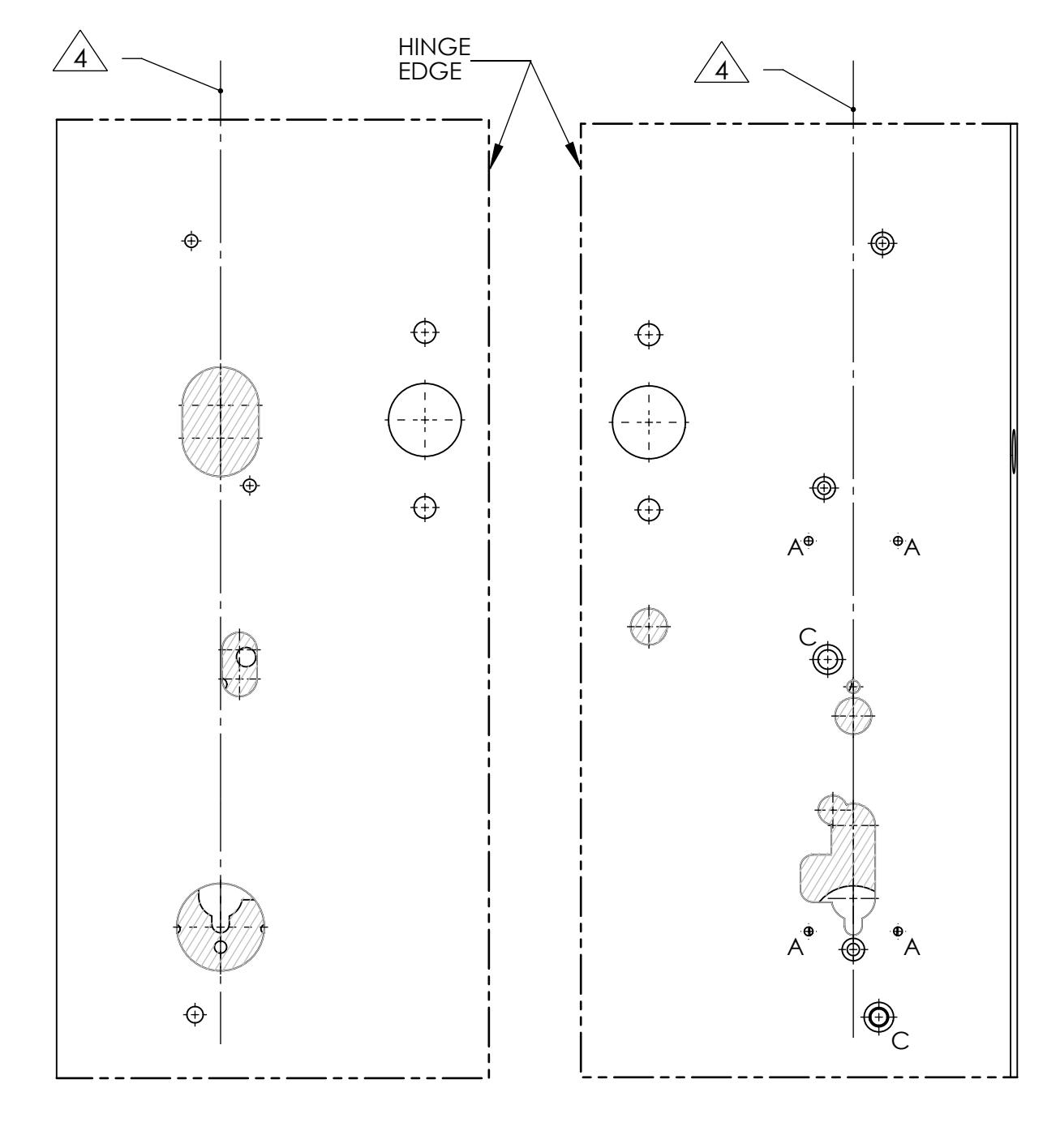

L.H.R.B. BEVEL SIDE L.H.R.B. INSIDE R.H.R.B. OUTSIDE R.H.R.B. INSIDE L.H.R.B. OUTSIDE

OUTSIDE L.H.R.B.

TRIM SHOWN 11 12

NOTES: 6.

7.

8.

DRAWING IS NOT TO SCALE. REFERENCE STRIKE TEMPLATE FOR DETAILS TO PREPARE FRAME.

CATALOG. VERTICAL CENTERLINE IS REFERENCED FROM THE CENTERLINE OF THE BEVEL.

(INDUSTRY STANDARD BEVEL IS 1/8 INCH IN 2 INCHES.) CONSULT THE AUTHORITY HAVING JURISDICTION (AHJ) TO VERIFY THE RECOMMENDED MOUNTING HEIGHT ABOVE THE FINISHED FLOOR (AFF). LIMITATIONS IN THE DOOR CONSTRUCTION PROCESS MAY REQUIRE SOME HOLES TO BE FIELD-LOCATED USING THE PHYSICAL PART AS A TEMPLATE. STANDARD TOLERANCE OF $\backslash pm$ .015 APPLIES TO ALL DOOR PREPARATION

REQUIREMENTS, UNLESS OTHERWISE SPECIFIED.

DOOR REINFORCEMENT IS RECOMMENDED TO IMPROVE (SURFACE MOUNTED) FASTENER HOLDING POWER AND CRUSH RESISTANCE (WHEN THRU-BOLTING IS EMPLOYED). CONSTRUCTION TECHNIQUES SHOULD REFLECT INDUSTRY BEST PRACTICES (I.E. WDMA, SDI) AND AUTHORIZED METHODS WHERE LABEL SERVICE (I.E. UL, W-H) IS IN EFFECT.

WIRE RACEWAY AREAS SHALL BE FREE OF OBSTRUCTIONS & SHARP EDGES TO PROTECT WIRES FROM CUTS & ABRASIONS.

CAREFULLY NOTE WHICH FEATURES ARE OPTIONAL, (WHETHER THE FEATURE APPLIES TO BOTH SIDES OF THE DOOR AND/OR IF A DEPTH APPLIES.) MAXIMUM PRODUCT DIMENSIONS ARE SHOWN FOR THE PURPOSE OF VERIFYING FITMENT WITH DOOR FRAME STOPS, DOOR STILE SIZE & LIGHT/LOUVER KITS. IF OPTIONAL LEVERS OR ROSES ARE USED REFERENCE THE RELATED PRODUCT DIMENSIONS TO VERIFY THE FITMENT REQUIREMENTS.

SEE TEMPLATE MEDT4 (METAL DOORS) & MEDT33 (WOOD DOORS) FOR EXIT

DEVICE & ROD LATCH PREP.

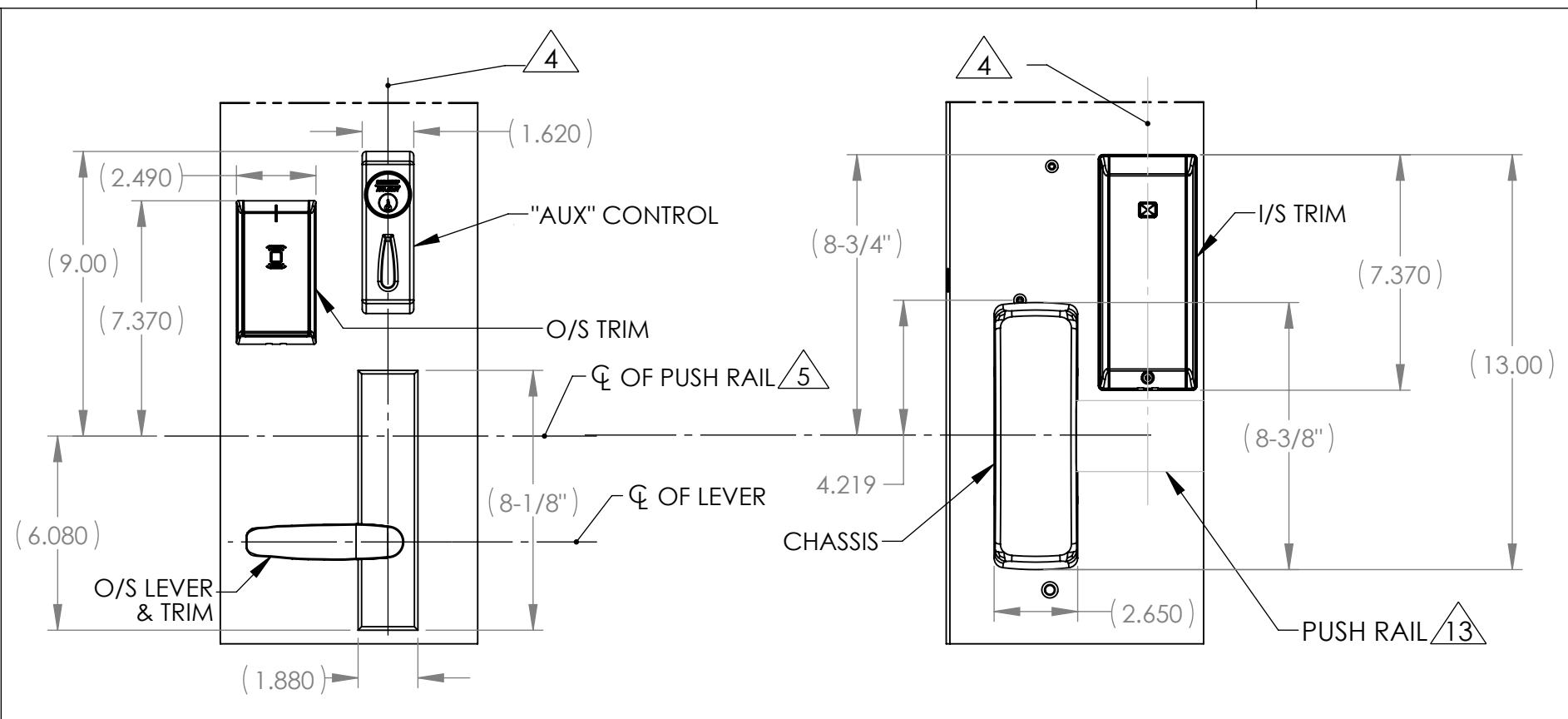

INSIDE L.H.R.B. TRIM SHOWN 11 12

AUTHORIZED OPTIONS IN100, IN120, IN 220

OPTIONS TABLE
		USED FOR OPTIONS
OPTION	DESCRIPTION	91- / M35	ALL OTHERS
Α	HARD WIRE	Х	-
		IN220	ALL OTHERS
В	POWER OVER ETHERNET	X	-

ASSA ABLOY Opening Solutions
Experience a safer

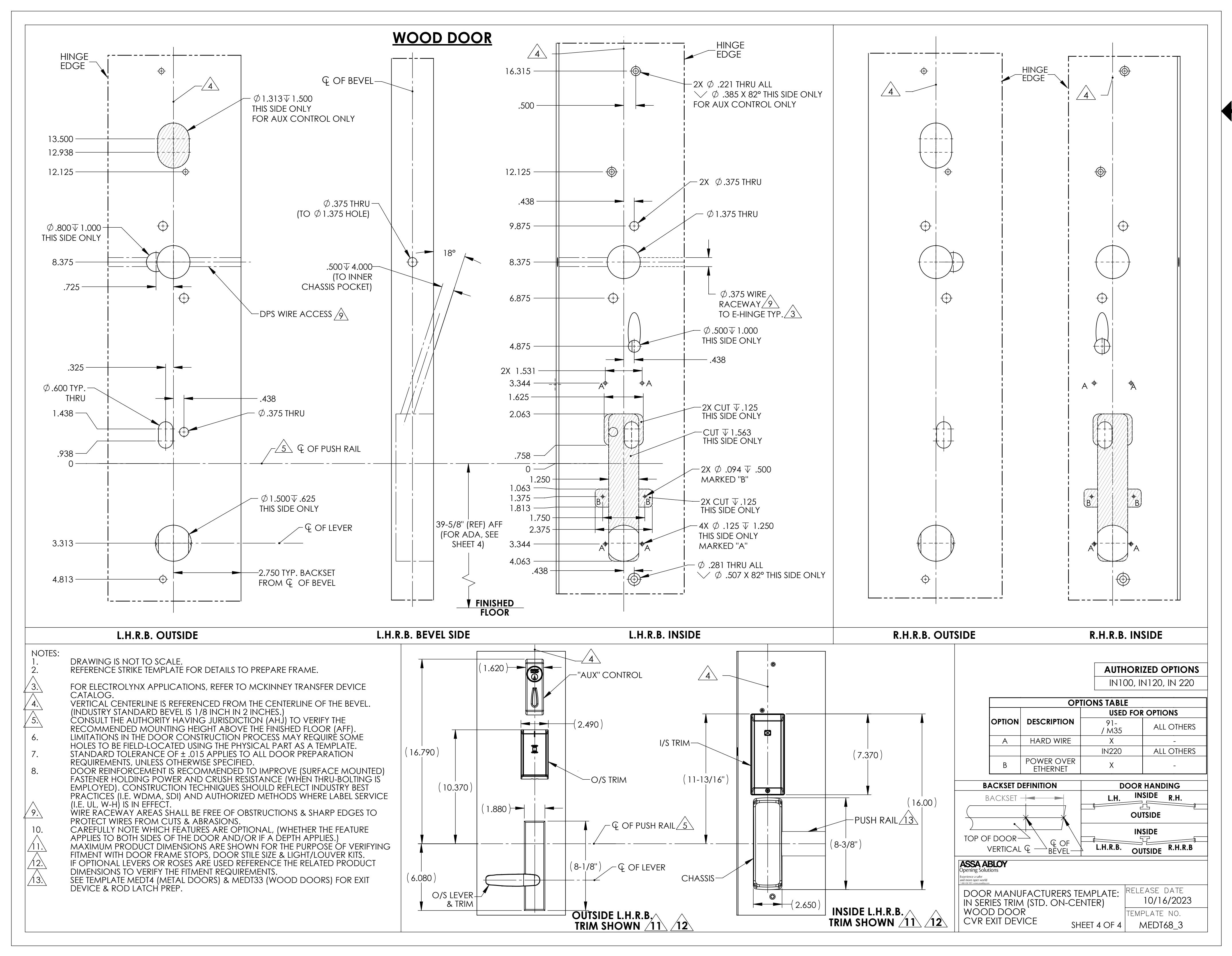

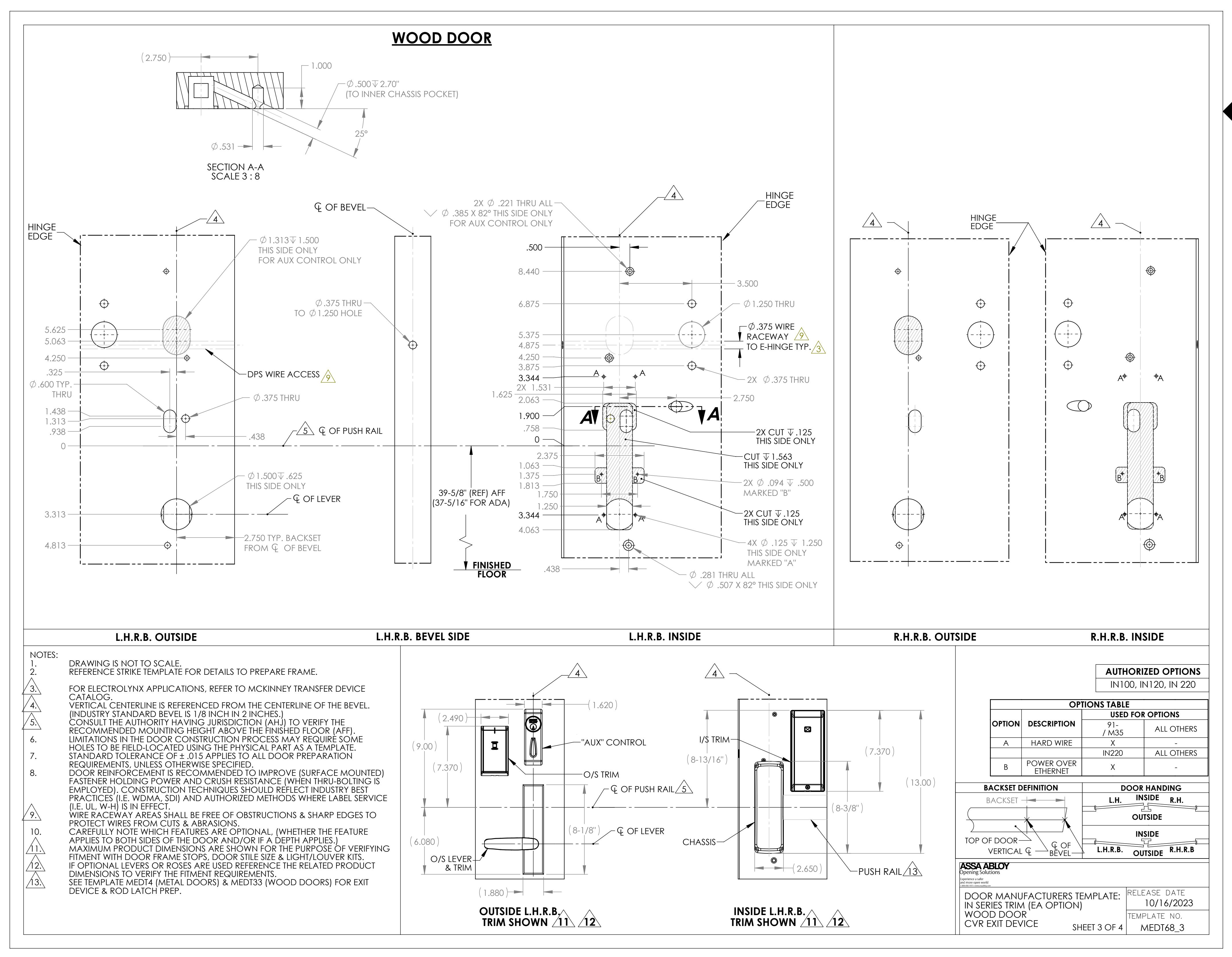

CVR EXIT DEVICE

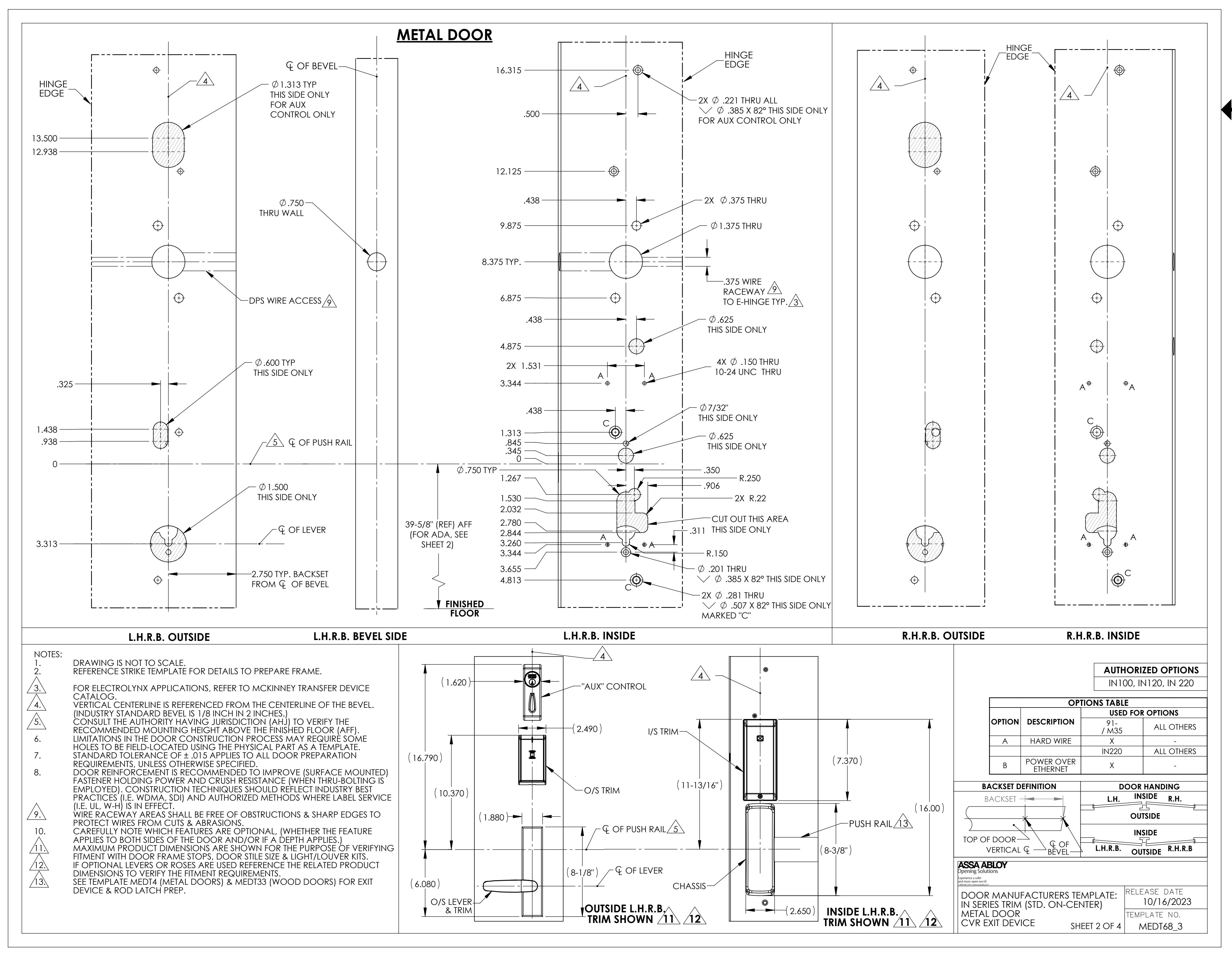

DOOR MANUFACTURERS TEMPLATE: IN SERIES TRIM (EA OPTION) METAL DOOR

RELEASE DATE 10/16/2023 TEMPLATE NO. SHEET 1 OF 4 MEDT68_3
