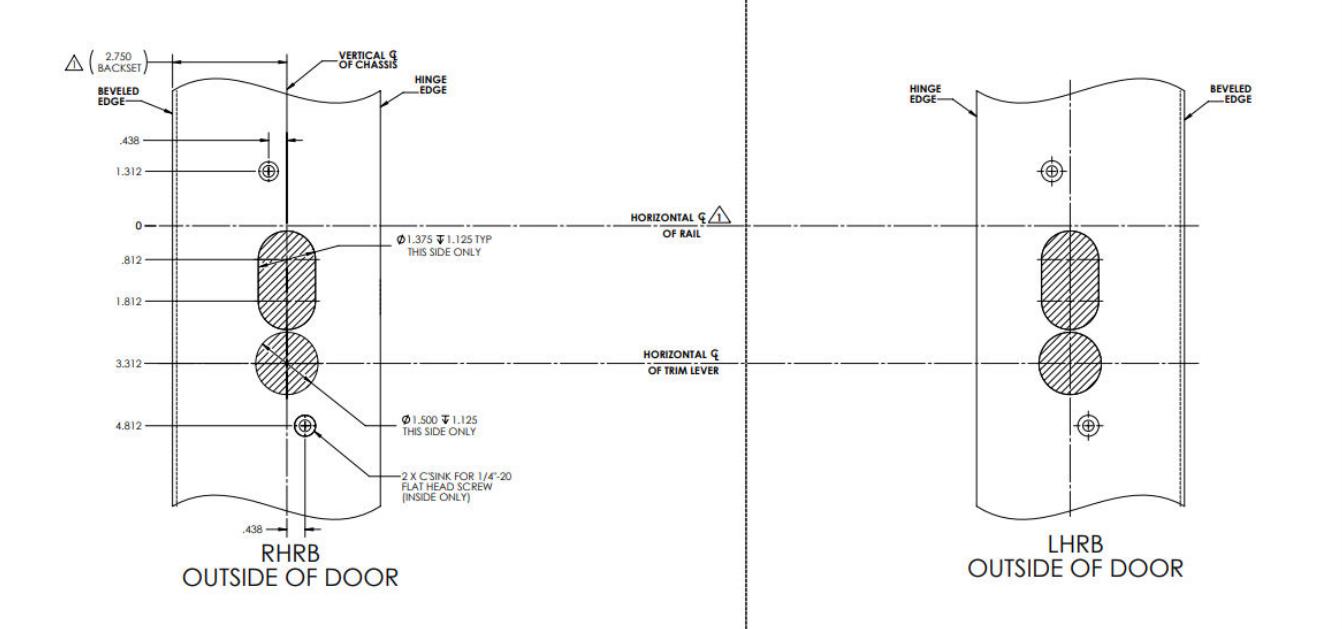

WOOD DOOR

NOTES:

1.	FOR LOCATION OF VERTICAL CENTERLINES, HORIZONTAL CENTERLINES AND ALL ADDITIONAL EXIT DEVICES PREP. REFER TO APPROPRIATE EXIT DEVICE TEMPLATE.	1
	BEVEL REQUIRED (NOT SHOWN), PREP TO ANSI A115 SPECIFICATIONS.
3.	TOLERANCE ALL DIMENSIONS ±.015.

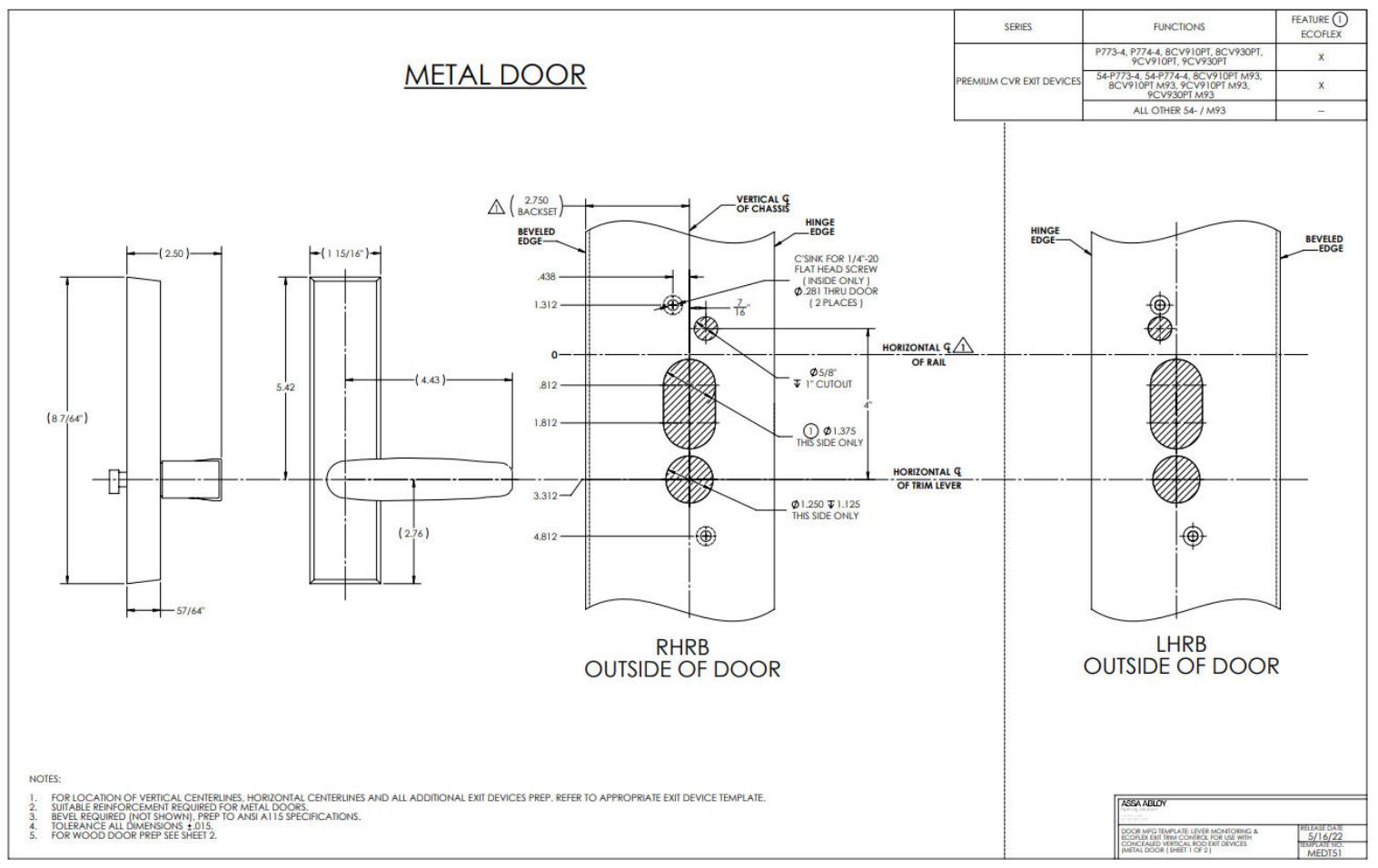

4.	FOR TRIM DIMENSIONS OR METAL DOOR PREP SEE SHEET 1.	1

5/16/22 DOOR MFG TEMPLATE. ECOFLEX DUT TRIM CONTROL FOR USE WITH CONCEALED VERTICAL ROD ENT DEVICES WOOD DOOR ( SHEET 2 OF 2 ) MEDIS)
