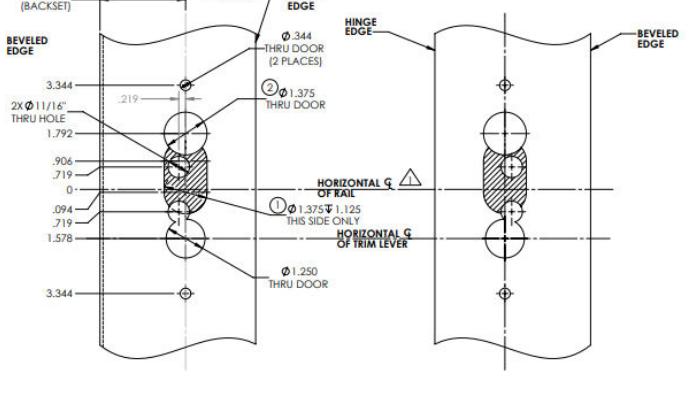

SERIES FUNCTIONS ECOFLEX (CYLINDER) P773-8, P774-8, 8910PT 8930PT, 9910PT, 9930PT X WIDE STILE RIM EXIT DEVICES P775-8, P776-8, 8903PT, 8905PT, 9903PT, 9905PT X X WOOD DOOR VERTICAL Q 2.750 -HINGE EDGE (BACKSET) HINGE EDGE-BEVELED Ø.344 BEVELED EDGE HRU DOOR EDGE (2 PLACES)

LHRB OUTSIDE OF DOOR

BACKSET DEFINITION DOOR HANDING INSIDE R.H. L.H. OUTSIDE INSIDE TOP OF DOOR OUTSIDE R.H.R.B L.H.R.B. VERTICAL Q . ASSA ABLOY

AUTHORIZED PREFIXES 54-/M93

FEATURE (1)

FEATURE (2)

NOTES: FOR IDCATION OF VERTICAL CENTERLINES, HORIZONTAL CENTERLINES AND ALL ADDITIONAL EXIT DEVICES PREP. REFER TO APPROPRIATE EXIT DEVICE TEMPLATE. BYELE RECINIED INCT SHOWN, PIPET TO ANSIA 11 S. PECIFICATIONS. TOLERANCE ALL DIMENSIONS 2.015. FOR TRIM DIMENSIONS OR REAL DOOR PREP SEE SHEET 1.

RHRB OUTSIDE OF DOOR

DOOR MFG TEMPLATE: ECOFLEX EXIT TRIM CONTROL FOR USE 5/16/22 WITH WIDE STILE RIM TYPE EXIT DEVICES WOOD DOOR (SHEET 2 OF 2) MEDT27
