Corbin Russwin PED4800 and PED5800 and SARGENT PE8400 and PE8600 Narrow and Wide Stile CVR for Wood Door, Metal …

Original Source Document Full PDF Version

Corbin Russwin PED4800 and PED5800 and SARGENT PE8400 and PE8600 Narrow and Wide Stile CVR for Wood Door, Metal …_MEDT9 diagr

Corbin Russwin PED4800 and PED5800 and SARGENT PE8400 and PE8600 Narrow and Wide Stile CVR for Wood Door, Metal …_MEDT9 image

Corbin Russwin PED4800 and PED5800 and SARGENT PE8400 and PE8600 Narrow and Wide Stile CVR for Wood Door, Metal …_MEDT9 diagr

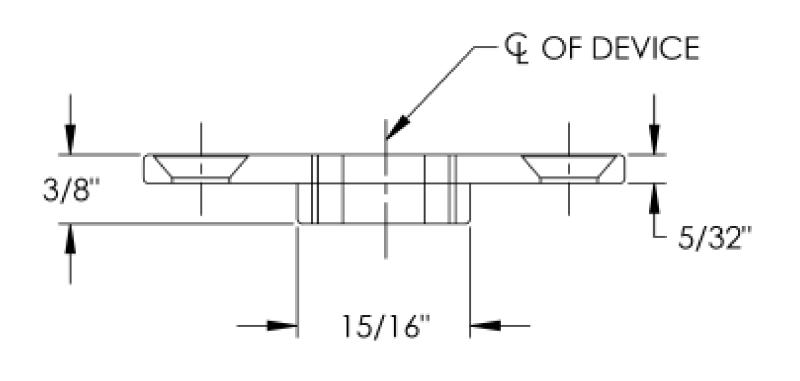

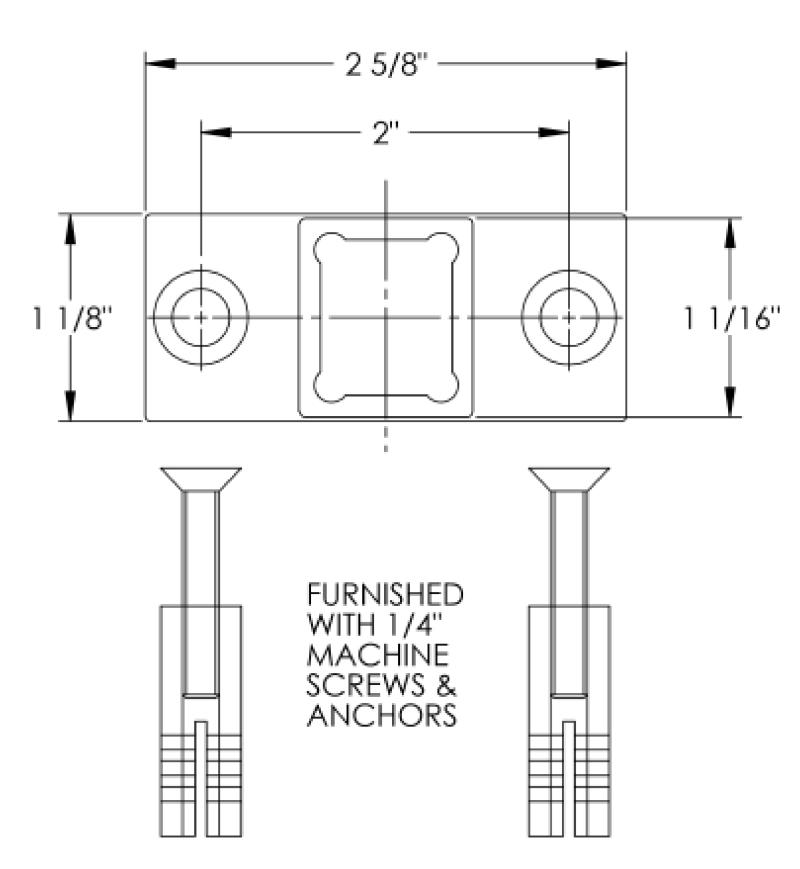

#606 BOTTOM STRIKE

NOTES:

OUTSIDE DIMENSIONS ARE MAX PART SIZE.

STANDARD BACKSET AND MAXIMUM BACKSET ARE 2-3/4"

3. MINIMUM BACKSET DEPENDS ON DEVICE AND APPLICATION, SEE DEVICE TEMPLATE FOR MINIMUM BACKSET

Experience a safer

and more open world 1-800-036-1951 • www.assabloy.com

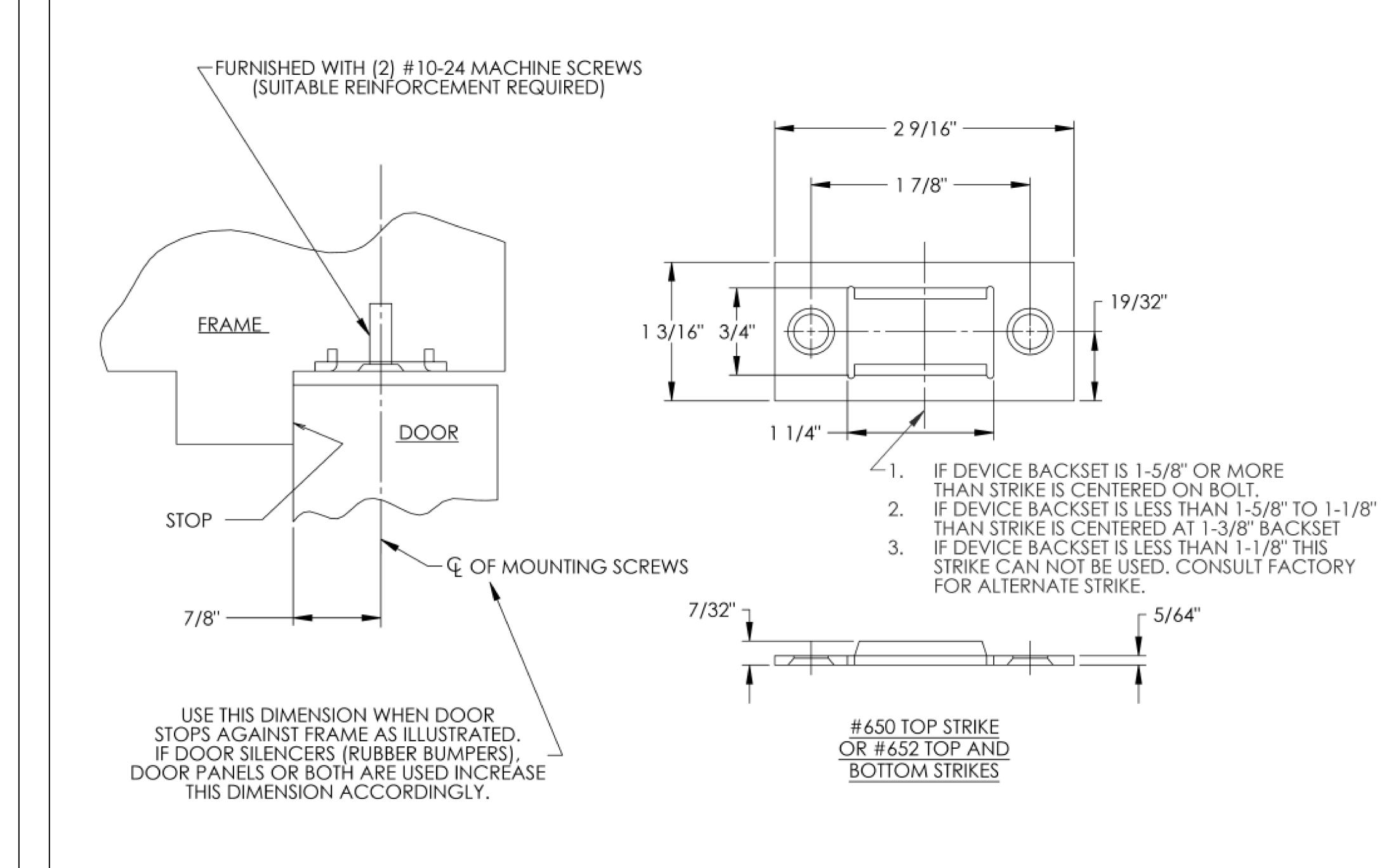

DOOR MANUFACTURER TEMPLATE: STRIKES FOR CONCEALED VERTICAL ROD EXIT DEVICES AND LOCKS

RELEASE DATE 5/17/22

TEMPLATE NO. MEDT9
