METAL DOOR

SERIES	FUNCTIONS	FEATURE () (ECOFLEX)	FEATURE (2) ( CYLINDER )	FEATURE (3) ( LEVER MONITORING )
PREMIUM MORTISE EXIT DEVICES (WIDE OR NARROW STILE)	P775, P776, 8M903PT, 8M905PT, 9M903PT, 9M905PT	x	OUTSIDE ONLY	5
	54-775, 54-77654-P773, 54-P774, 8M910PT M93, 8M930PT M93, 9M910PT M93, 9M930PT M93	х	OUTSIDE ONLY	X
	ALL OTHER 54- / M93	(=)	SEE NOTE 2	×
PREMIUM MORTISE EXIT DEVICES (WIDE OR NARROW STILE) PREMIUM SURFACE VERTICAL ROD EXIT DEVICES	P773, P774, 8M910PT, 8M930PT, 9M910PT, 9M930PT	X	=======================================
	54-P773, 54-P774, 8M910PT M93, 8M930PT M93, 9M910PT M93, 9M930PT M93	х	-	×
	ALL OTHER 54- / M93	17.0	SEE NOTE 2	X
			13

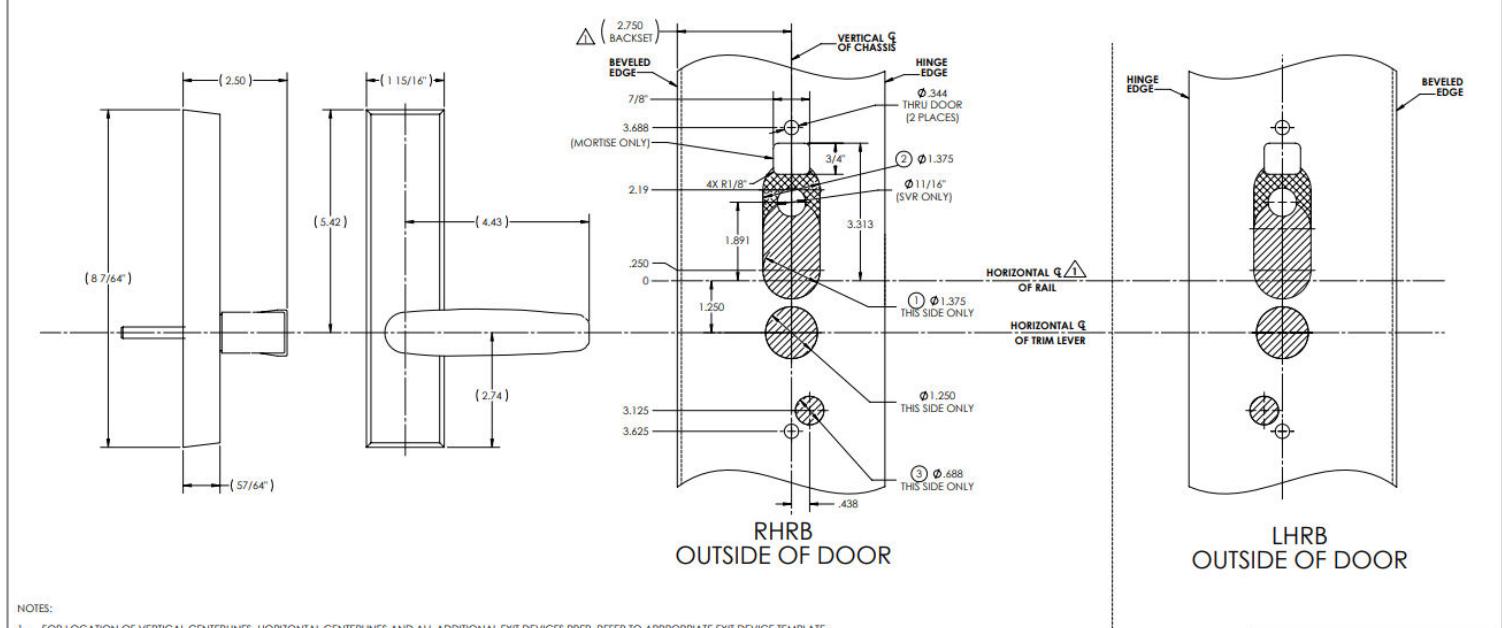

• FOR LOCATION OF VERTICAL CENTERLINES, HORIZONTAL CENTERLINES AND ALL ADDITIONAL EXIT DEVICES PREP, REFER TO APPROPRIATE EXIT DEVICE TEMPLATE. FOR ADDITIONAL 'ET' DOOR PREP CUTOUTS REFER TO TEMPLATE MEDT19.
• SUITABLE REINFORCEMENT REQUIRED FOR METAL DOORS. BEVEL REQUIRED (NOT SHOWN), PREP TO ANSI A 115 SPECIFICATIONS. TOLERANCE ALL DIMENSIONS ± .015.
• TOLERANCE ALL DIMENSIONS $.015. FOR WOOD DOOR APPLICATIONS SEE SHEET 2 (MORTISE EXIT DEVICES) OR SHEET 3 (SURFACE VERTICAL ROD EXIT DEVICES).

ASSA ABLOY Journal Schare Monamenta DOOR WEG TEMPLATE: LEVER MONICORNG & ECOPER SCUIT TRAN CONTROL MORTISE EXIT DEVICES ASSUREACE VERTICAL ROD DXI DEVICES MELA LODO R 198ET 1 OF 31

5/17/22

MEDT32

WOOD DOOR (PREMIUM SURFACE VERTICAL ROD EXIT DEVICES)

NOTES:

• FOR LOCATION OF VERTICAL CENTERLINES, HORIZONTAL CENTERLINES AND ALL ADDITIONAL EXIT DEVICES PREP, REFER TO APPROPRIATE EXIT DEVICE TEMPLATE. BETVE REQUIRED (NOT SHOWN), PREP TO ANSI A115 SPECIFICATIONS. TOLEBANCE ALL DIMENSIONS 2, 101.5.
• 4. FOR TRIM DIMENSIONS OR METAL DOOR PREP SEE SHEET 1. 5. FOR WOOD DOOR (MORTISE EXIT DEVICES) PREP SEE SHEET 2.

ASSA ABLOY Spering Solution
DOOR MFG TEMPLATE: ECOFLEX EXIT TRIM CONTROL SURFACE VERTICAL ROD	S/17/22
WOOD DOOR - I WEET 3 OF 3 I	AAEDT22
