ALUMINUM MULLION MINUMUM DOOR STILE REQUIRED BACKSET FOR VARIOUS TRIMS P700/ 800PT/ 900PT/ STS / FLW/FSW EXIT DEVICE BACKSET PTB / PSB / MAL/MSL "A" T33 T35 Ť34 WIDE STILE 27/8 4 5/8 4 1/4 4 3/16 RIMNARROW 2 1/8 3 1/8 3 7/8 3 7/16 STILE RIM

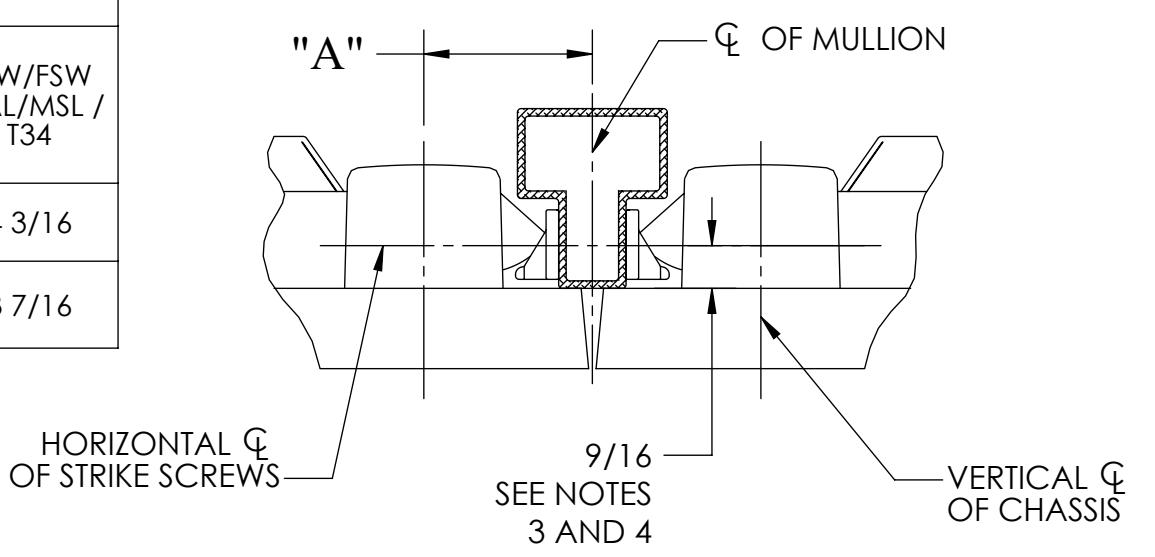

ALUMINUM MULLION APPLICATIONS

980, L980, 980A, L980A

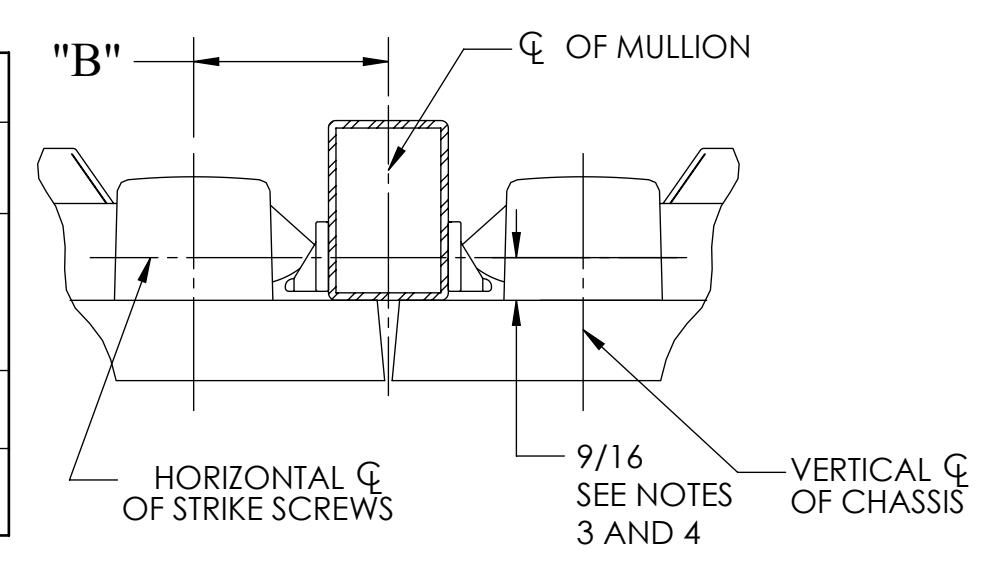

STEEL MULLION APPLICATIONS

12-980, 12-L980, EL-980, HC-980, HC-L980 12-HC-980, 980S, L980S, 12-HD-980, 12-HC-L980, CR900, CR900A, CRFE700A, CR900BKM, CR900KM, CRWS700AKM

3.000 1.565 REQUIRED B. EXIT DEVICE

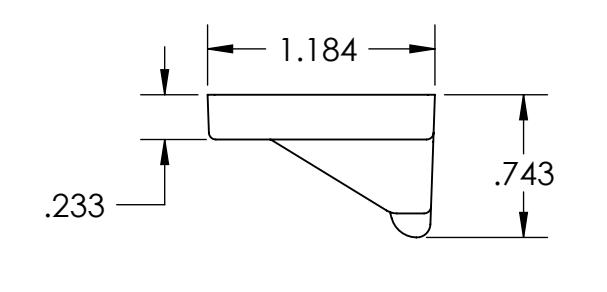

.280

ADJUSTMENT

STEEL MULLION
REQUIRED BACKSET			MINUMUM DOOR STILE FOR VARIOUS TRIMS
EXIT DEVICE	BACKSET "B"		P700/ 800PT/ 900PT/ STS / T35	PTB / PSB / T33	FLW/FSW MAL/MSL / T34
WIDE STILE RIM	3 1/4		4 5/8	5	4 9/16
NARROW STILE RIM	2 1/2		3 1/2	4 1/4	3 13/16

• 1. TOLERANCES: FRACTIONAL ±1/64", DECIMAL ±.015.
• 2. SEE APPROPRIATE DOOR MANUFACTURERS TEMPLATE TO MOUNT EXIT DEVICE.
• 3. IF DOOR SILENCERS ARE USED ON THE FRAME, DECREASE THIS DIMENSION BY SILENCER HEIGHT.
• 4. IF "GLASS BEAD" SHIMS ARE USED, INCREASE THIS DIMENSION BY SHIM HEIGHT (1/8" PER SHIM USED).
• 5. AFTER STRIKE IS INSTALLED AND ADJUSTED, TWO CENTER HOLES ARE TO BE DRILLED AND TAPPED FOR #10-24 ROUND HEAD MACHINE SCREWS.

ASSA ABLOY Opening Solutions

DOOR MANUFACTURERS TEMPLATE: 649 STRIKE DOUBLE DOOR/MULLION APPLICATIONS

04-19-2022 TEMPLATE NO.

MEDT39

RELEASE DATE
