• ON THE DOOR SILENCERS ARE USED ON THE DOOR FRAME, DECREASE THIS DIMENSION ACCORDINGLY.
• (2)-FRACTIONAL TOLERANCE ± 1/64".
• O SEE METAL DOOR TEMPLATES TO MOUNT EXIT DEVICE.

ASSA ABLOY Opening Solutions

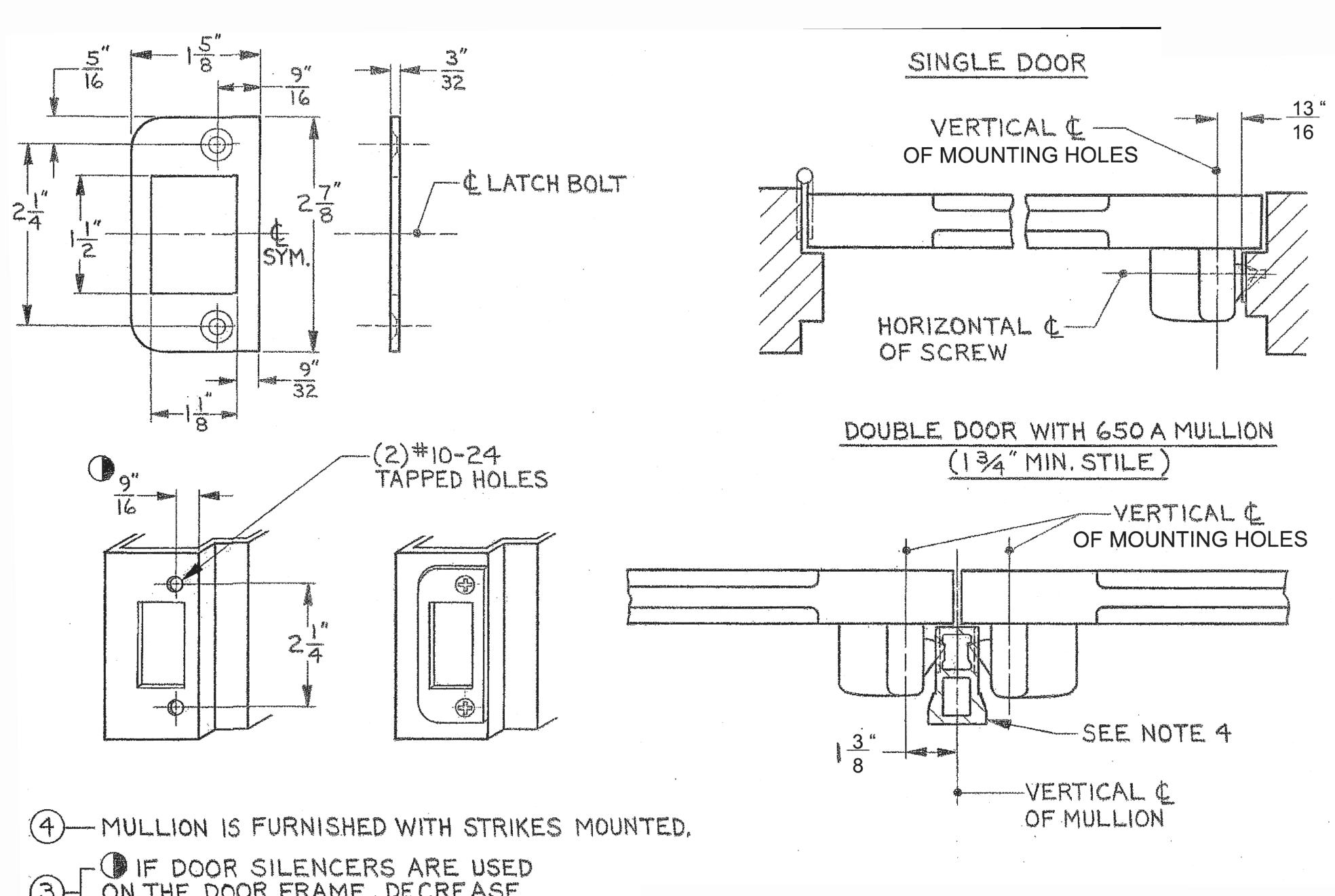

TEMPLATE:

658 FLAT STRIKE

RELEASE DATE 5/17/22

TEMPLATE NO. MEDT40
