| MINIMUM STILE REQUIRED | |||
|---|---|---|---|
| EXIT DEVICE |
P700,
800PT, 900PT, STS, T35 |
PTB, PSB,
T33 |
FLW/FSW
MAL/MSL T34 |
| WIDE STILE RIM | 3 7/16" | 3 13/16" | 3 3/8" |
| NARROW STILE RIM | 2 5/16" | 3 15/16" | 2 1/2" |
- SEE METAL DOOR TEMPLATES TO MOUNT EXIT DEVICE. MAXIMUM DIMENSION OF PART.
- 3. 642 STRIKE IS NYLON COATED.

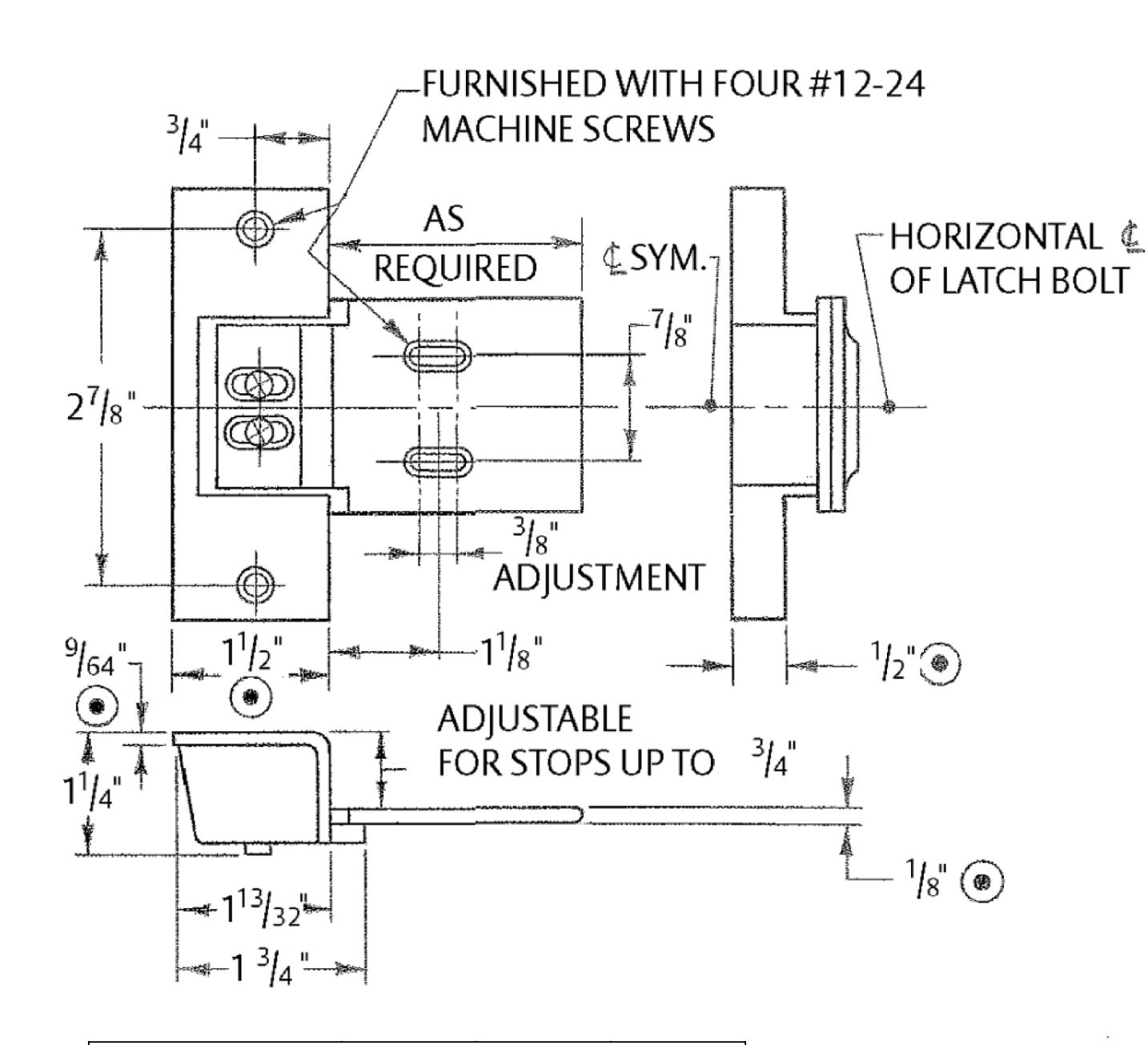

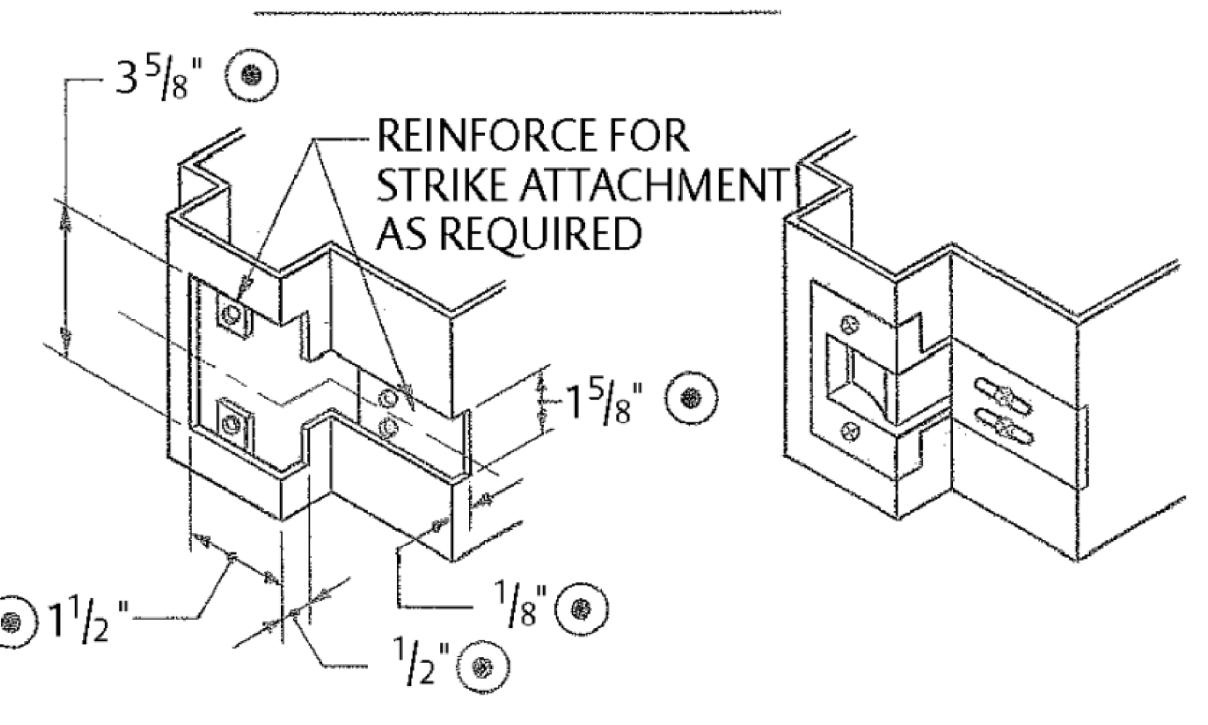

SUGGESTED CUT-OUT
