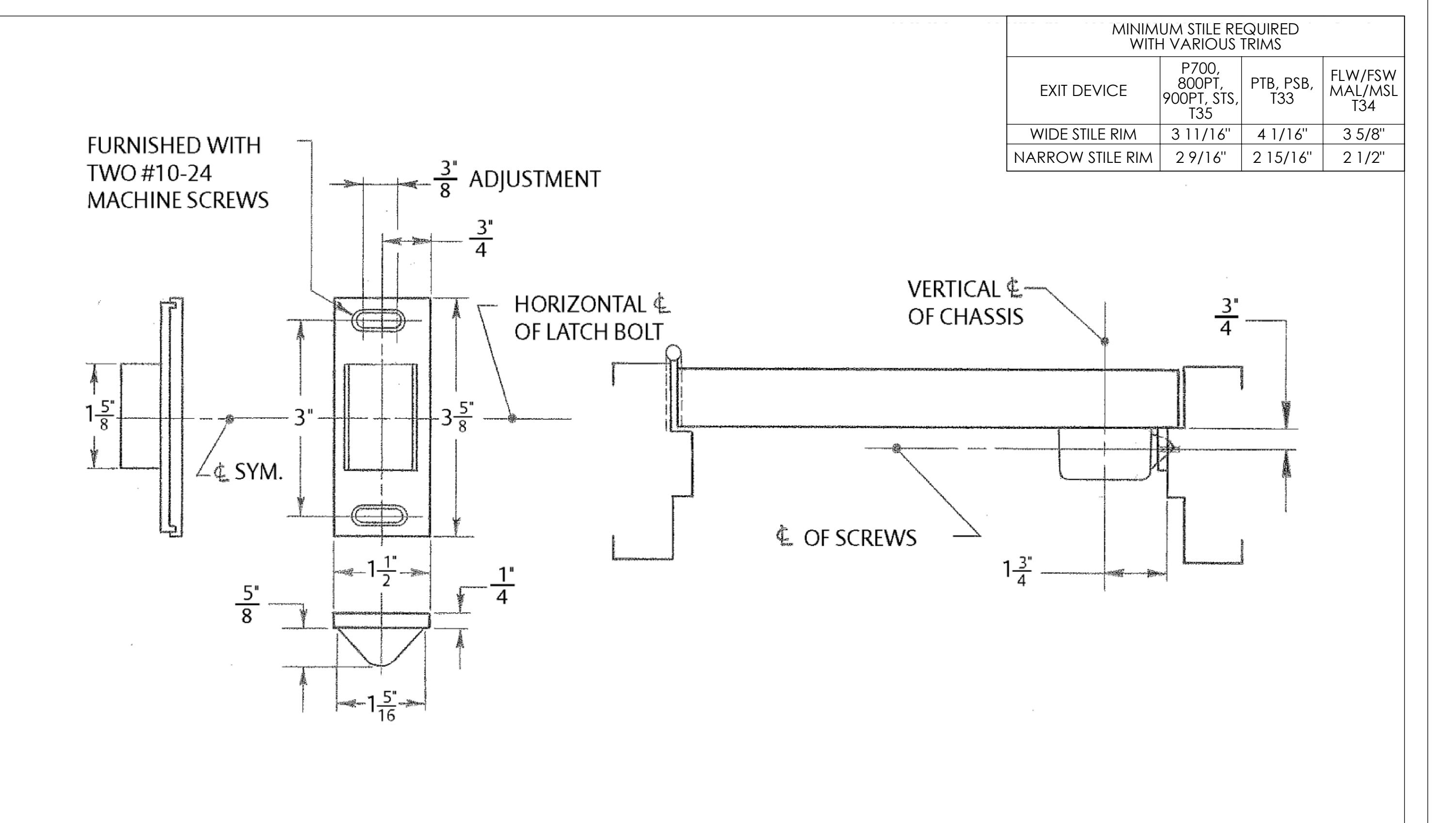

Corbin Russwin PED4200 and PED5200 and SARGENT PE8500 and PE8800 603 and 613 Strikes Template_MEDT73 diagram on page 1

1. SEE METAL DOOR TEMPLATES TO MOUNT EXIT DEVICE.

FRACTIONAL TOLERANCE ±1/64" 613 STRIKE IS NYLON COATED.

DOOR MANUFACTURERS TEMPLATE: 603 AND 613 STRIKE SINGLE DOOR APPLICATIONS

ASSA ABLOY

RELEASE DATE 6-29-2023

template no. MEDT73
