PROGRESSIVE. ELEGANT. DURABLE.

Corbin Russwin PED4000 Series Exit Device Sell Sheet_45706 image on page 1

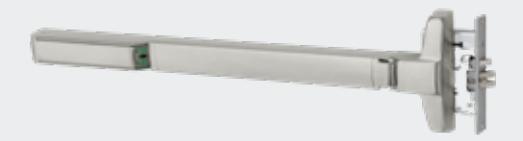

PED4000 Series Exit Device

The Corbin Russwin PED4000 Series represents the next generation of exit devices – where strength and security meet enduring beauty. Crafted with innovation at its core, this series offers a harmonious blend of elegance and robust durability. All configurations (rim, mortise, and concealed vertical rod) exceed ANSI/BHMA Grade 1 requirements to ensure maximum performance that enhances the visual appeal of any environment.

Corbin Russwin PED4000 Series Exit Device Sell Sheet_45706 image on page 2

INNOVATION:

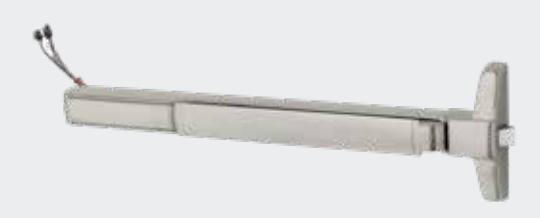

  • All wires for electromechanical options are routed through the rail
  • Vertical rods adjusted at the center case on concealed vertical rod devices
  • Hidden dogging mechanism

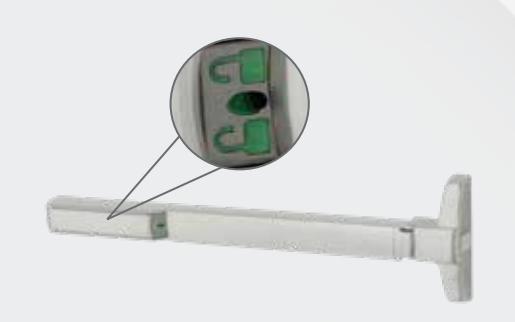

  • Multiple indicator options available including Active Dogging, Passive Dogging, and
  • EcoFlex® technology on all electrified trim
  • Enhanced Motorized Electric Latch Retraction features
  • Improved Delayed Egress functionality
  • Motorized Electric Latch Retraction available with FEMA certified devices
  • 5lb pressure latch release optional on all rim and concealed vertical rod device types to comply with California building codes

SECURITY:

  • Pushrail dogging option available, with or without indicators
  • Torx® screws
  • Master keying with Corbin Russwin Security Key systems available (Access 3® and Pyramid)

STRENGTH AND DURABILITY:

  • ANSI/BHMA A156.3 Grade 1 certified
  • Robust end cap design for high impact environments
  • Built to withstand abusive conditions and designed to deflect impacts from carts
  • Heavy duty mounting construction
  • 10-year warranty

AESTHETICS:

  • Multiple trim options for wide and narrow stile applications
  • Flush pushbar and rail carrier design to minimize catch points
  • No visible fasteners on rail assembly
  • Mixed finish options
