Installation Instructions

PED159, PED155, PED159WD & PED155WD Auxiliary Control with Concealed Vertical Rod Exit Devices

PED5800 WD & PED5800A WD EXIT DEVICE X PED100WD SERIES AUXILIARY CONTROL

WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www. P65warnings.ca.gov.

For installation assistance contact Corbin Russwin 1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

WARNING

Attention Installer: Improper installation may result in damage to the product and void the factory warranty.

PED159, PED155, PED159WD & PED155WD

Installation Instructions

• 1 Using the exit device instructions, prepare the door for the exit device.

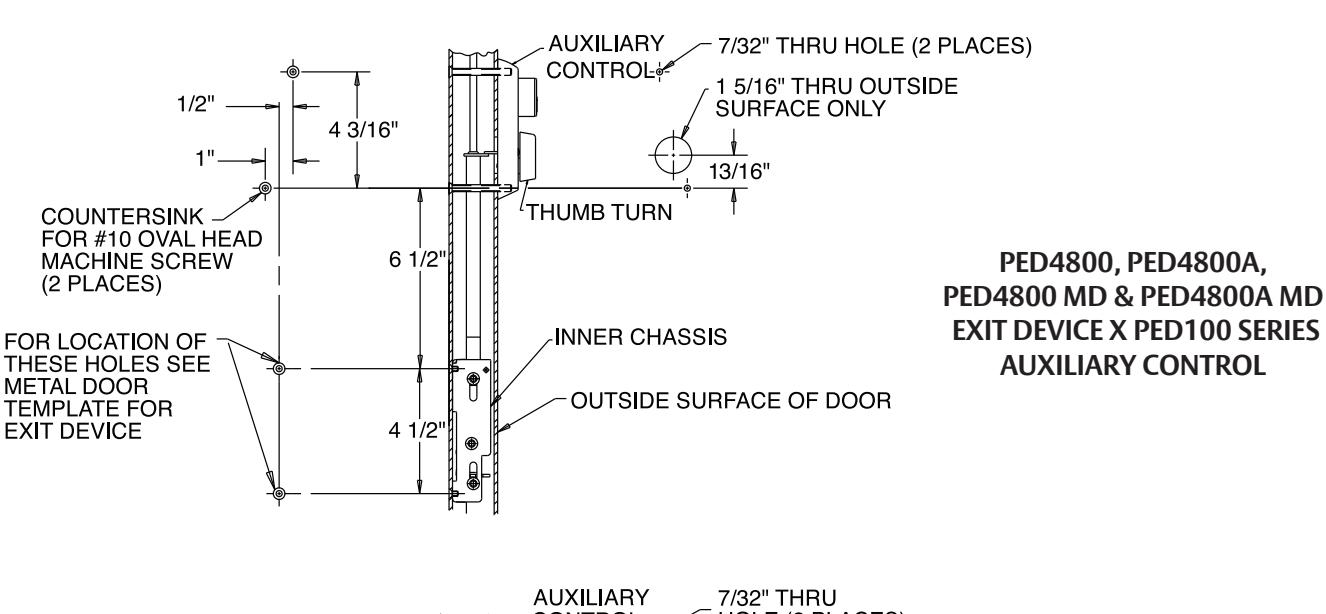

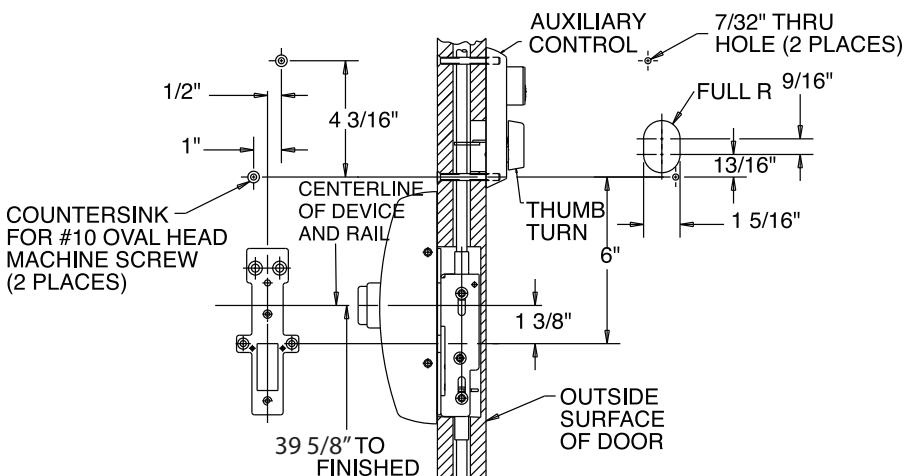

• 2 Prepare the door for auxiliary control as illustrated on page 1.

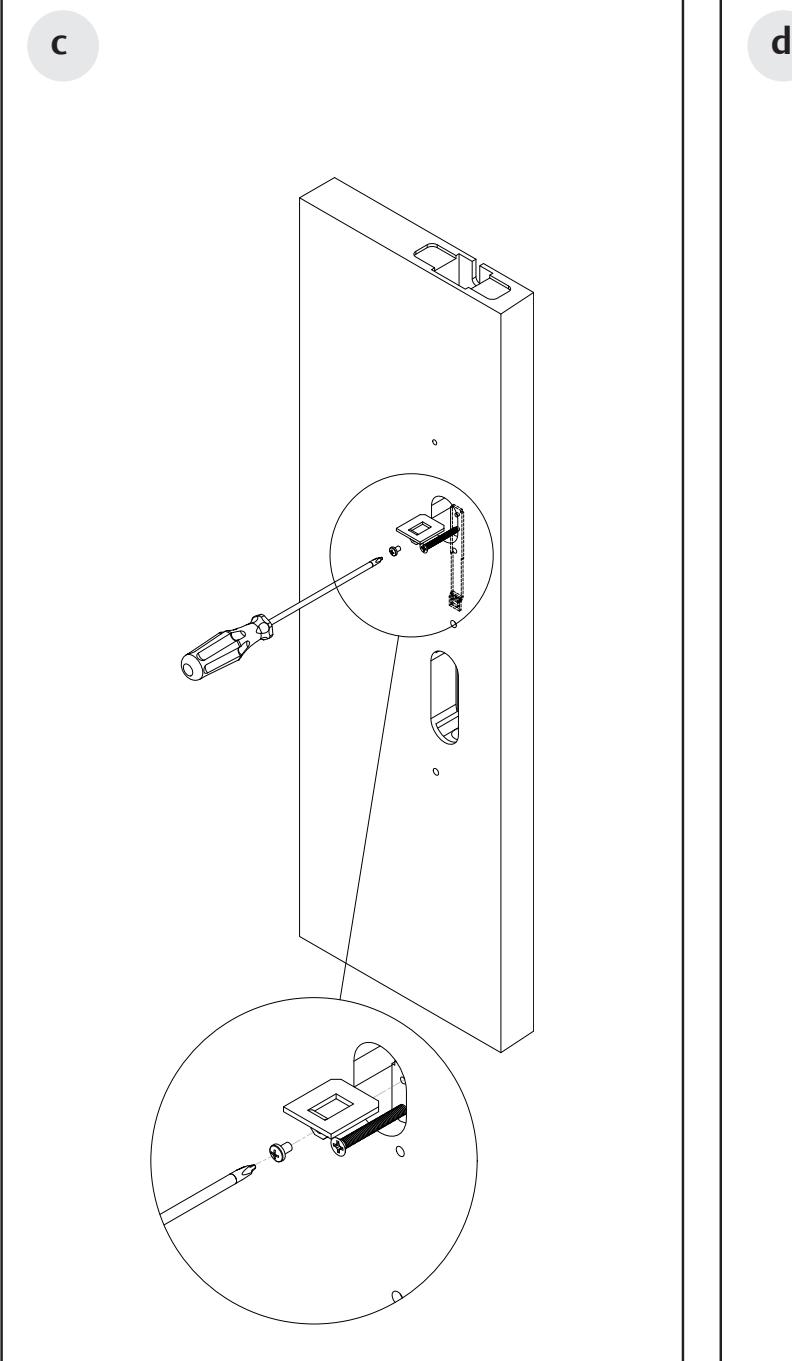

• 3 For wood doors, follow steps to install the auxiliary control bracket.

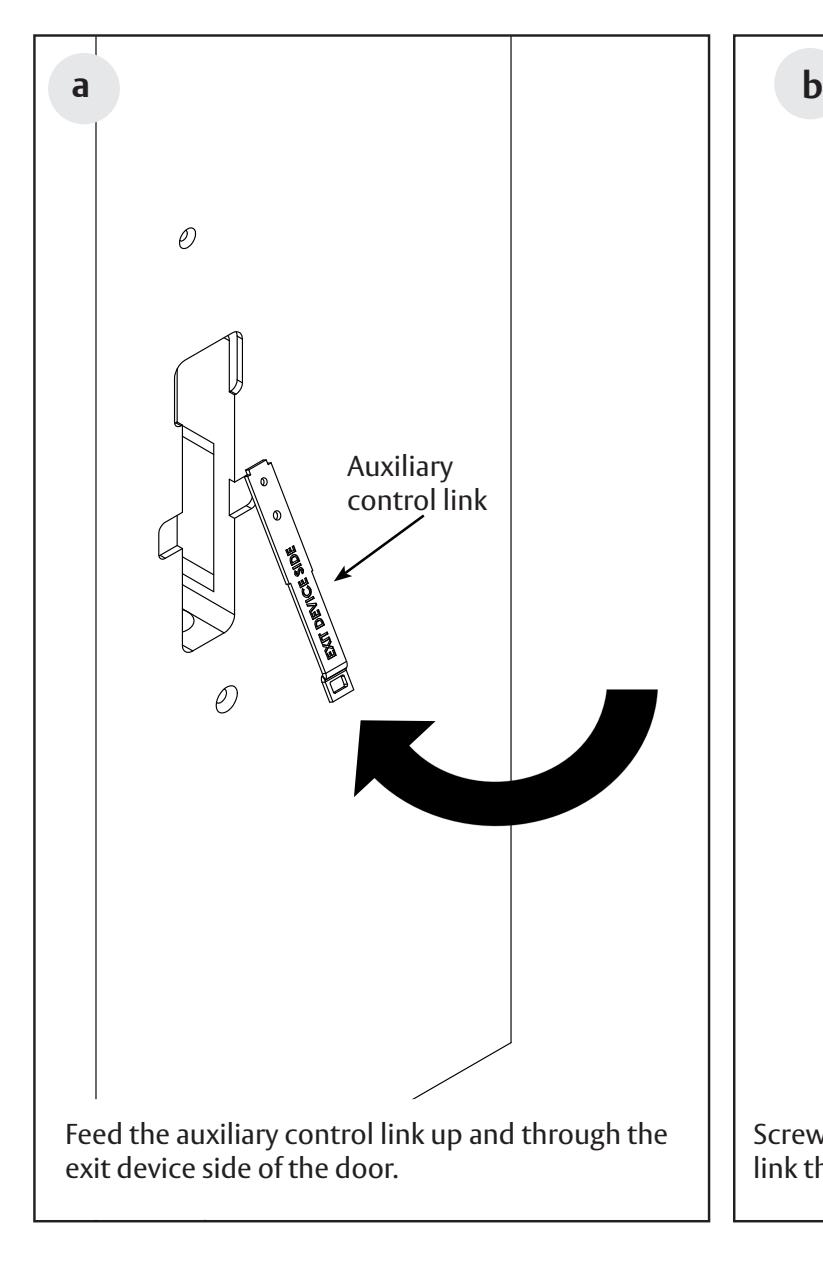

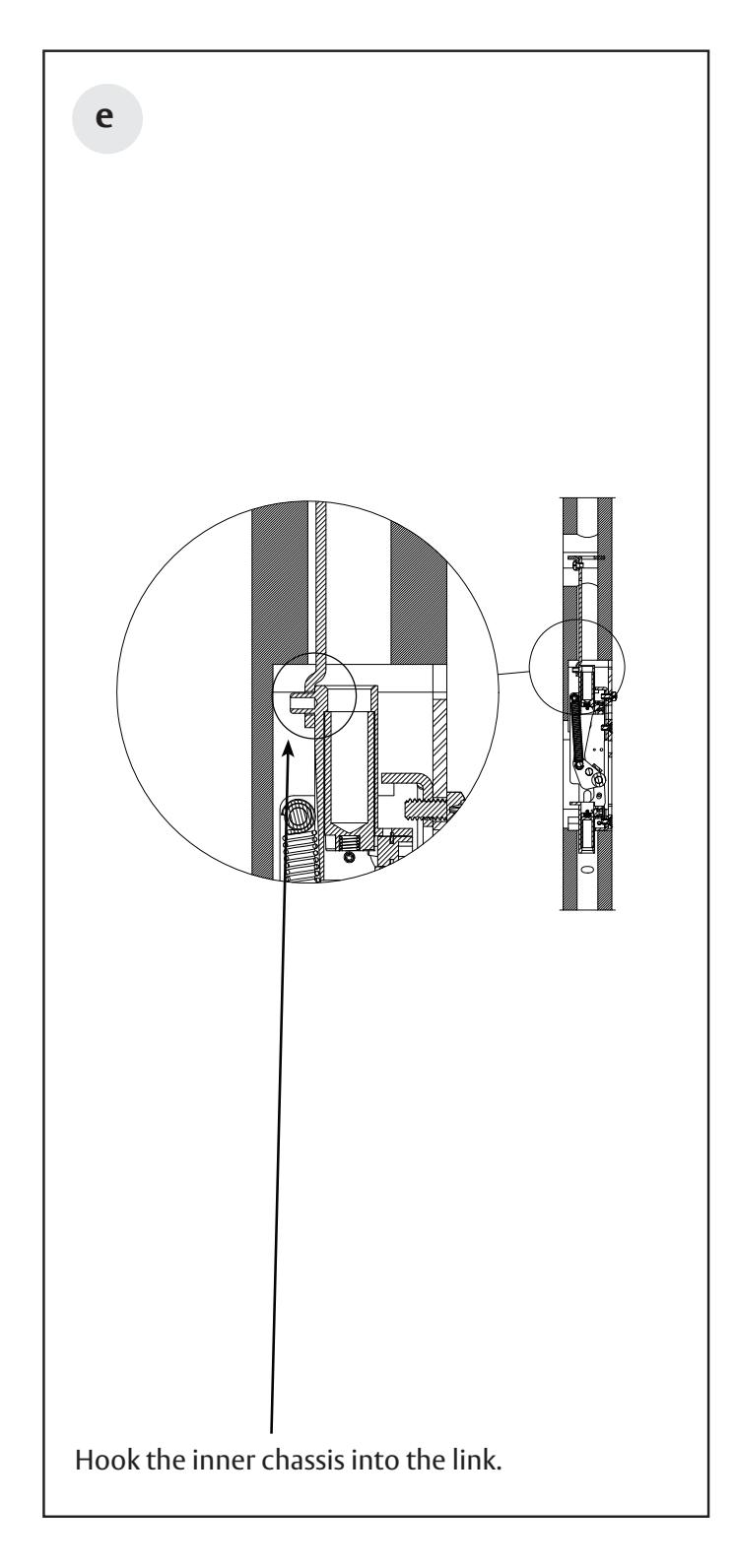

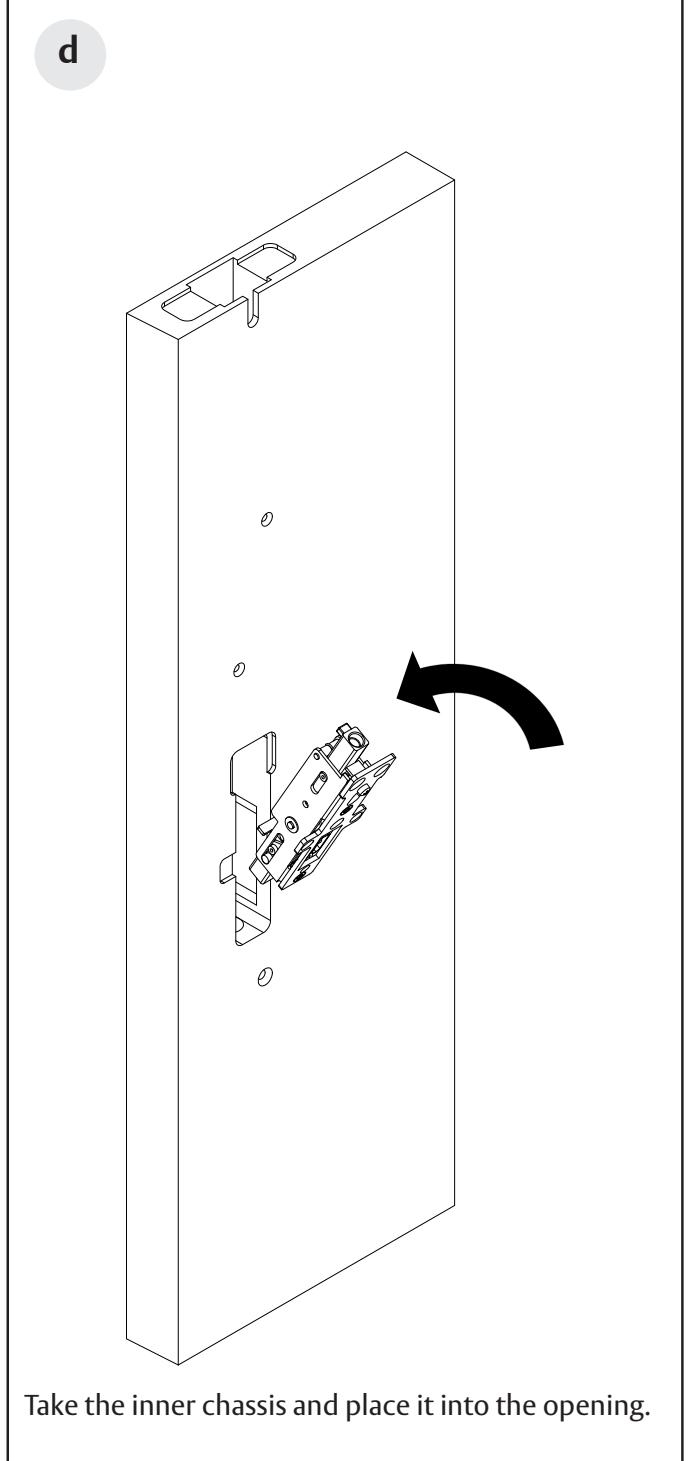

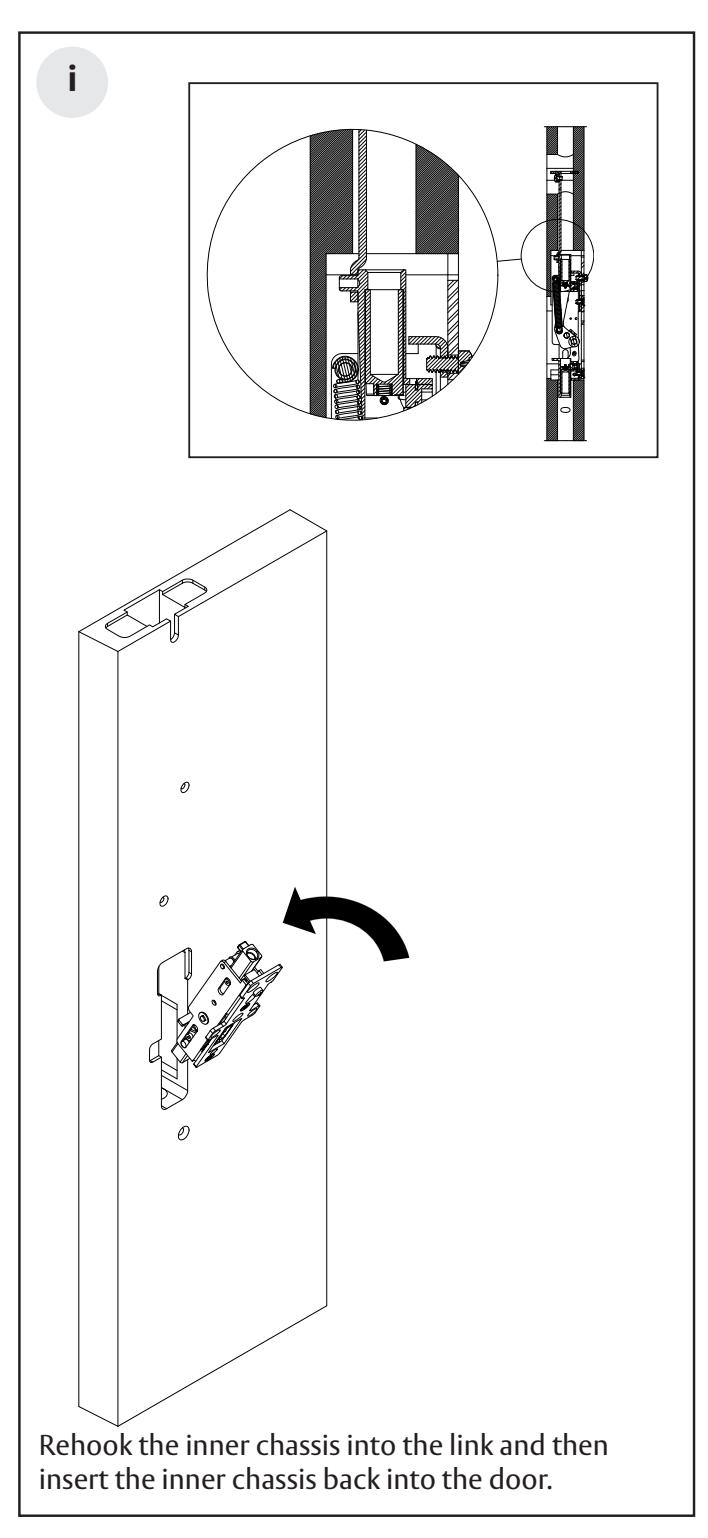

link that was placed in the door from step a.

For installation assistance contact Corbin Russwin

Holding the #10-32 fastener, take the platform and the smaller screw and attach it to the upper hole on the link in the door. Remove the #10-32 X 2" fastener.

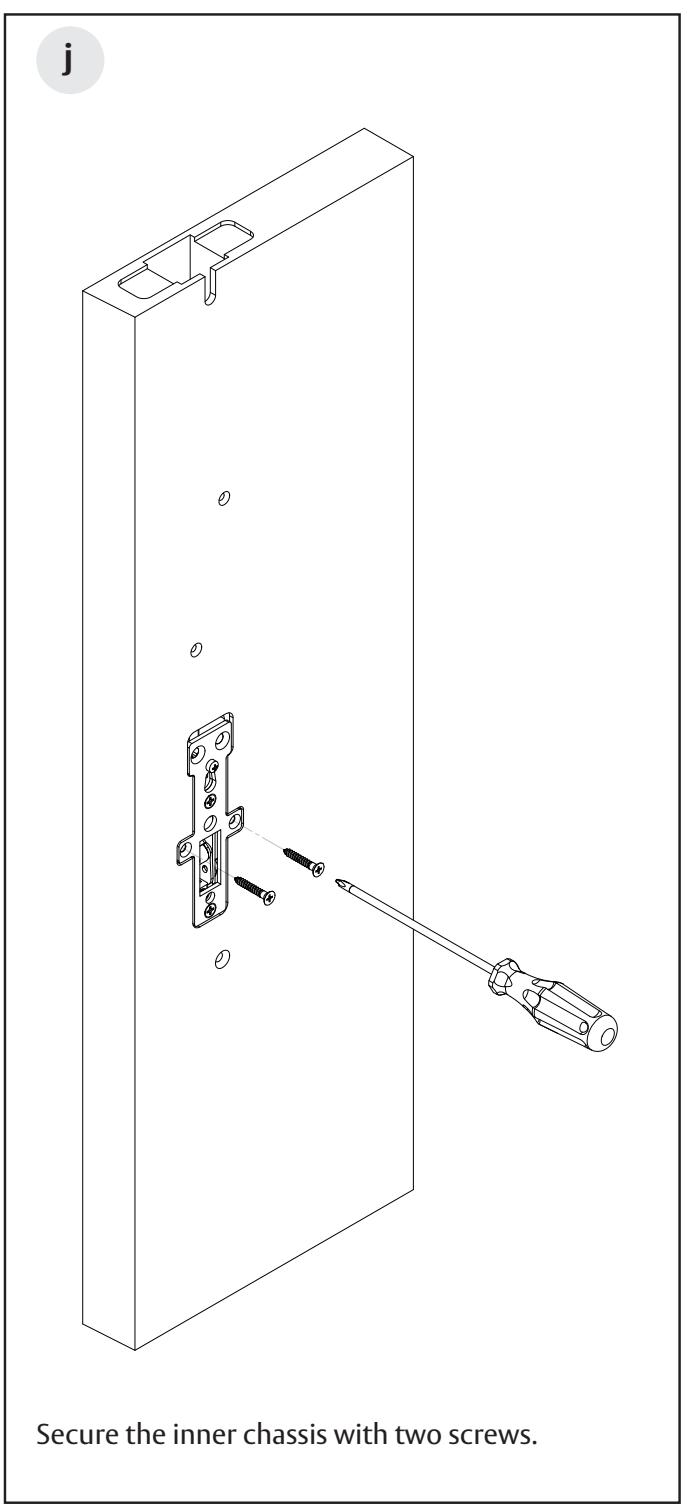

FM586 01/23

PED159, PED155, PED159WD & PED155WD

Installation Instructions

PED159, PED155, PED159WD & PED155WD

Installation Instructions

FM586 01/23

and Egress Hardware Group, Inc. is prohibited.

PED159, PED155, PED159WD & PED155WD

Installation Instructions

FM586 01/23

PED159, PED155, PED159WD & PED155WD

Installation Instructions

FM586 01/23

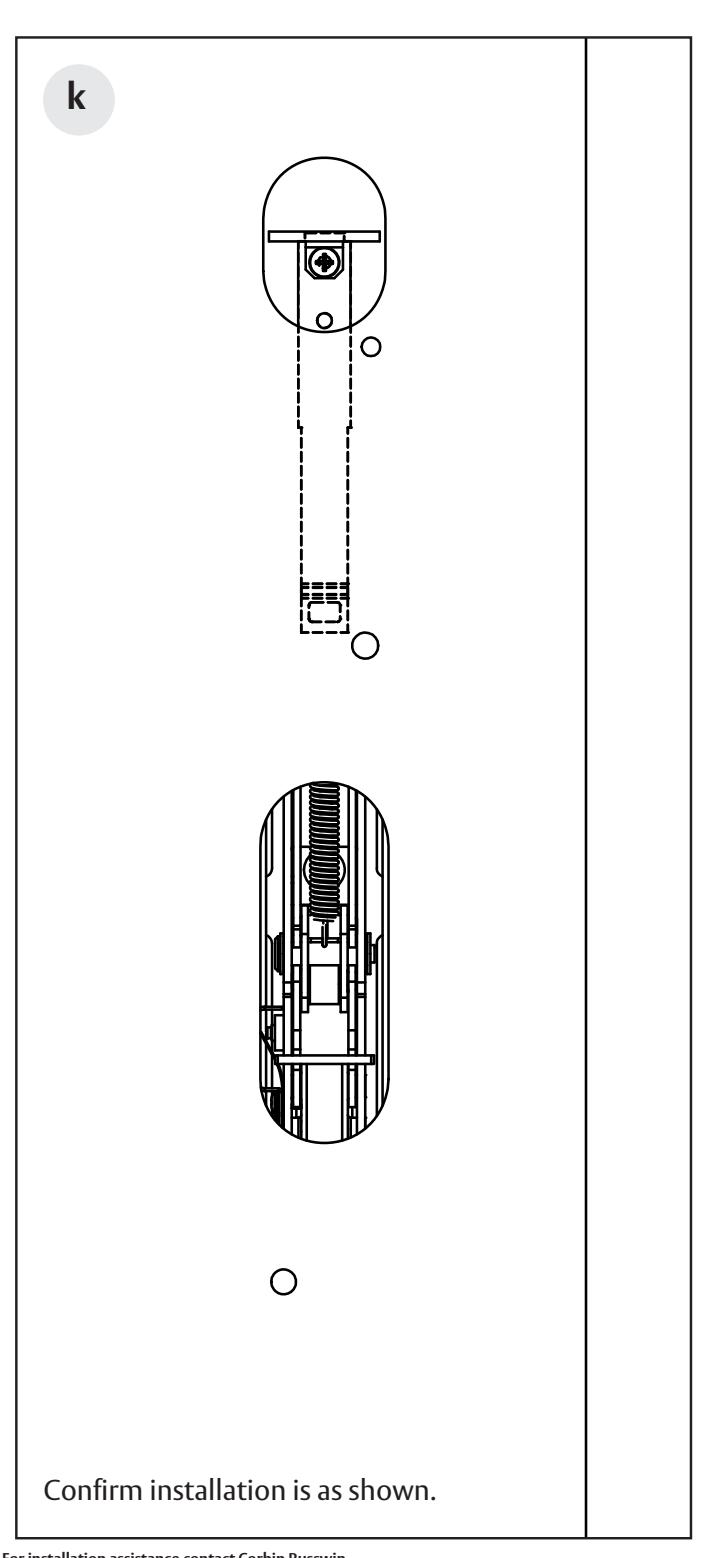

• 4 Using exit device instructions, mount exit device to the door.

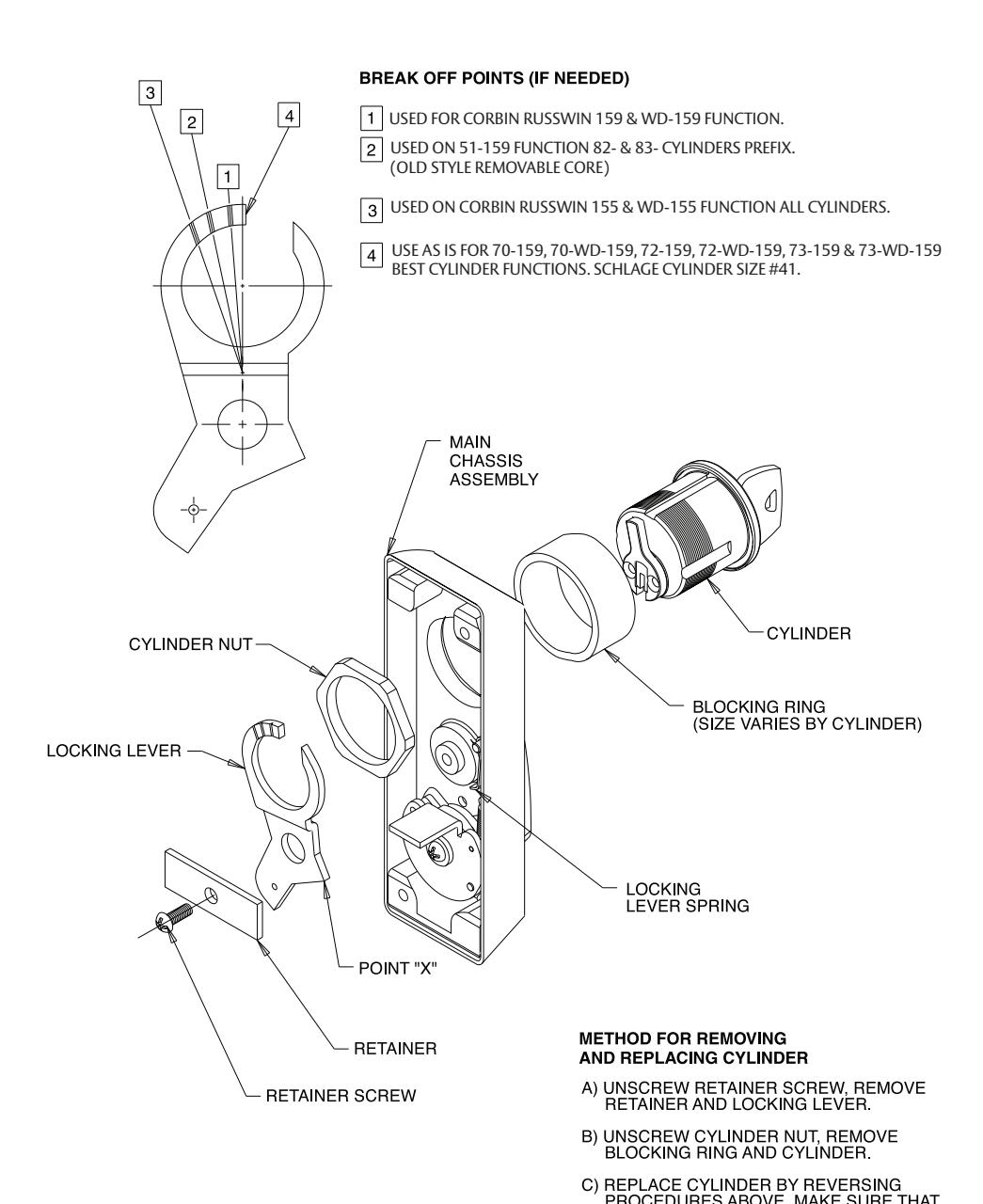

• 5 Mount auxiliary control to door.
