Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Provide adequate structural support to maintain door integrity during operation.
  • 6. Prepare mounting holes when installing trim.
  • 7. Dimensions given about a centerline are symmetrical.

Corbin Russwin P957 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, CVR, SVR Wood or Composite Door Template_T30935 image on

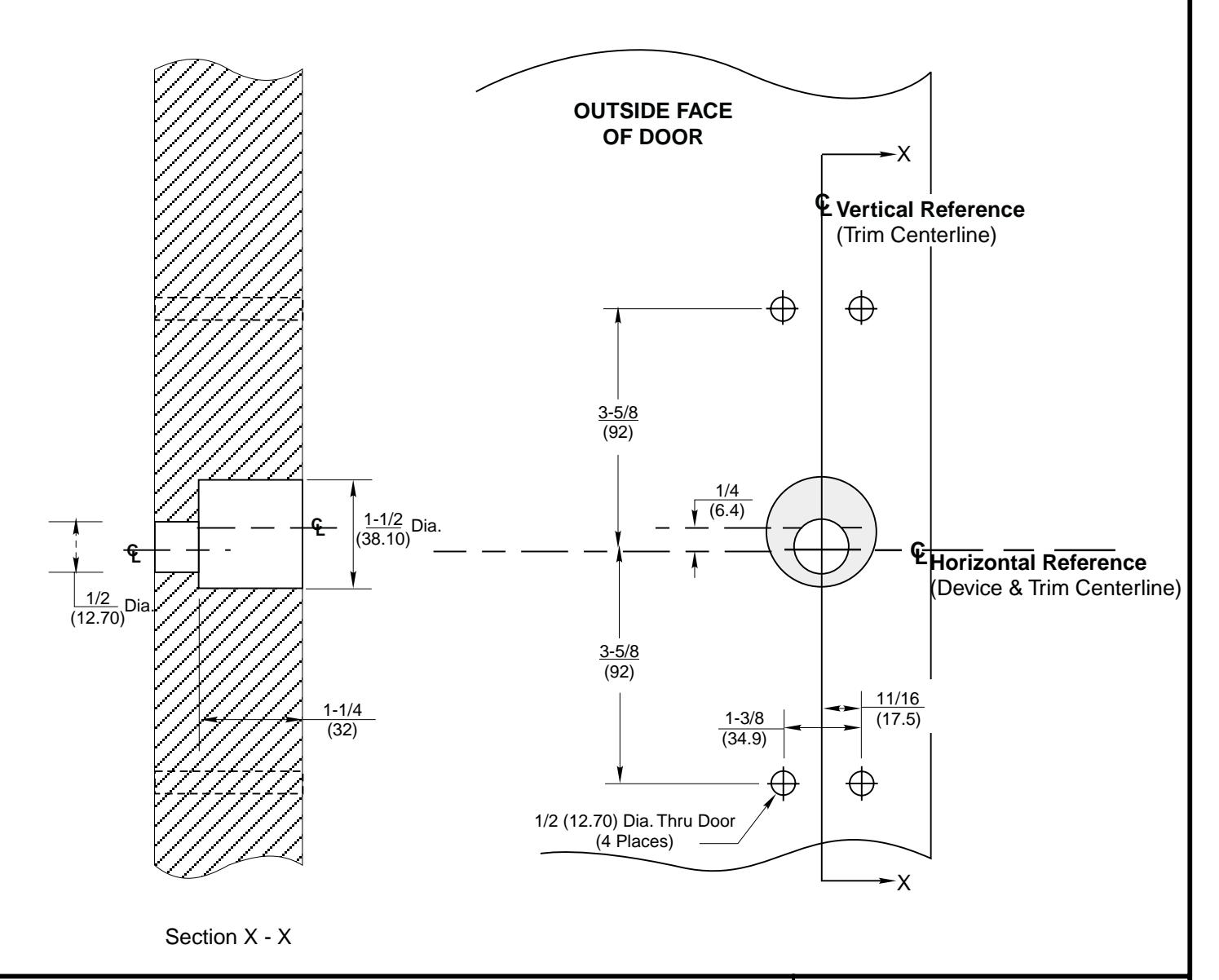

Corbin Russwin P957 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, CVR, SVR Wood or Composite Door Template_T30935 diagram o

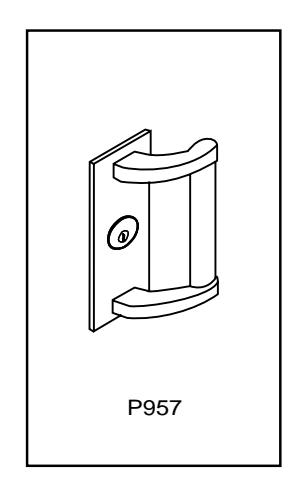

P957 Trim

Wood or Composite Door Preparation With ED5200, ED5400 or ED5800 Series Rim and Vertical Rod Exit Devices

Corbin Russwin P957 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, CVR, SVR Wood or Composite Door Template_T30935 image on

www.corbinrusswin.com

DO NOT SCALE DRAWING SUPERSEDES

TEMPLATE NUMBER DATE

T30935 9-99
