Notes:

  • This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.
  • 8. Dimensions given about a centerline are symmetrical.

Corbin Russwin P957 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, CVR, SVR Metal Door Template_T30934 image on page 1

Corbin Russwin P957 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, CVR, SVR Metal Door Template_T30934 diagram on page 1

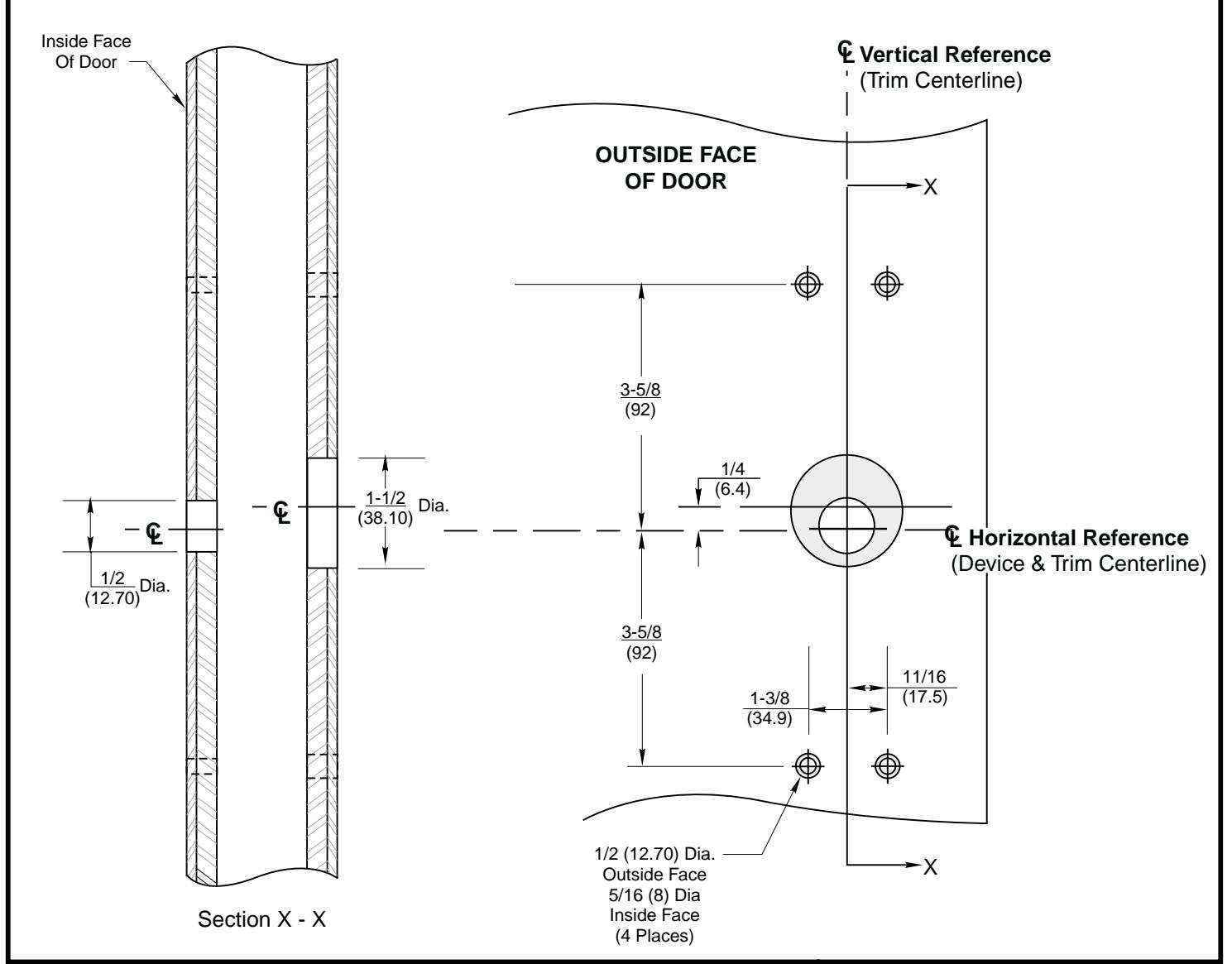

P957 Trim With ED5200, ED5400 or ED5800 Series Rim and Vertical Rod Exit Devices Metal Door Preparation

Corbin Russwin P957 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, CVR, SVR Metal Door Template_T30934 diagram on page 1

www.corbinrusswin.com

SUPERSEDES DO NOT SCALE DRAWING

T30934

DATE 9-99
