Notes :

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Prepare mounting holes when installing trim.
  • 6. Provide adequate structural support to maintain door integrity during operation.

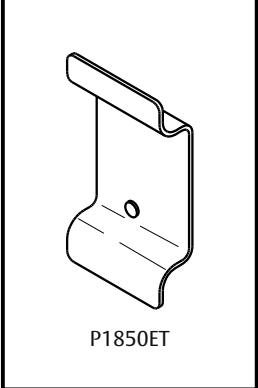

Corbin Russwin P1850ET Trim for ED2000 Series Wide Stile Rim, CVR, SVR Wood Door Template_T31273 image on page 1

Corbin Russwin P1850ET Trim for ED2000 Series Wide Stile Rim, CVR, SVR Wood Door Template_T31273 diagram on page 1

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

P1850ET Trim

For ED2000 Series Rim and Vertical Rod Exit Devices Wood Door Preparation

www.corbinrusswin.com

DO NOT SCALE DRAWING SUPERSEDES TEMPLATE NUMBER SHEET DATE

T31273 1 of 1 04/23
