OFFSET PULL TRIMS P12, P13 and P14

Installation Instructions

Corbin Russwin P12, P13, and P14 Offset Pull Trim for ED2000, ED3000, ED5000, ED7000, PED4000, and PED5000 Serie…_FM332 image

Corbin Russwin, Inc. 225 Episcopal Road Berlin, CT 06037 USA www.corbinrusswin.com

Technical Product Support: Phone: 888-607-5703

Fax: 860-828-7277 In Canada: ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario, Canada L4K 4T9

www.assaabloy.ca

Corbin Russwin P12, P13, and P14 Offset Pull Trim for ED2000, ED3000, ED5000, ED7000, PED4000, and PED5000 Serie…_FM332 image

  • · Prior to installation make sure the through bolt will not interfere with concealed hardware.
  • · When installing in combination with a Rim, SecureBolt® or Surface Vertical Rod exit device one of the screws may be through bolted using one of the mounting plate holes allowing the cup washer to be omitted in this location.
  • · When installing in combination with a concealed vertical rod device the pull trim must be mounted offset from the backset so that it does not interfere with the operation of the device.

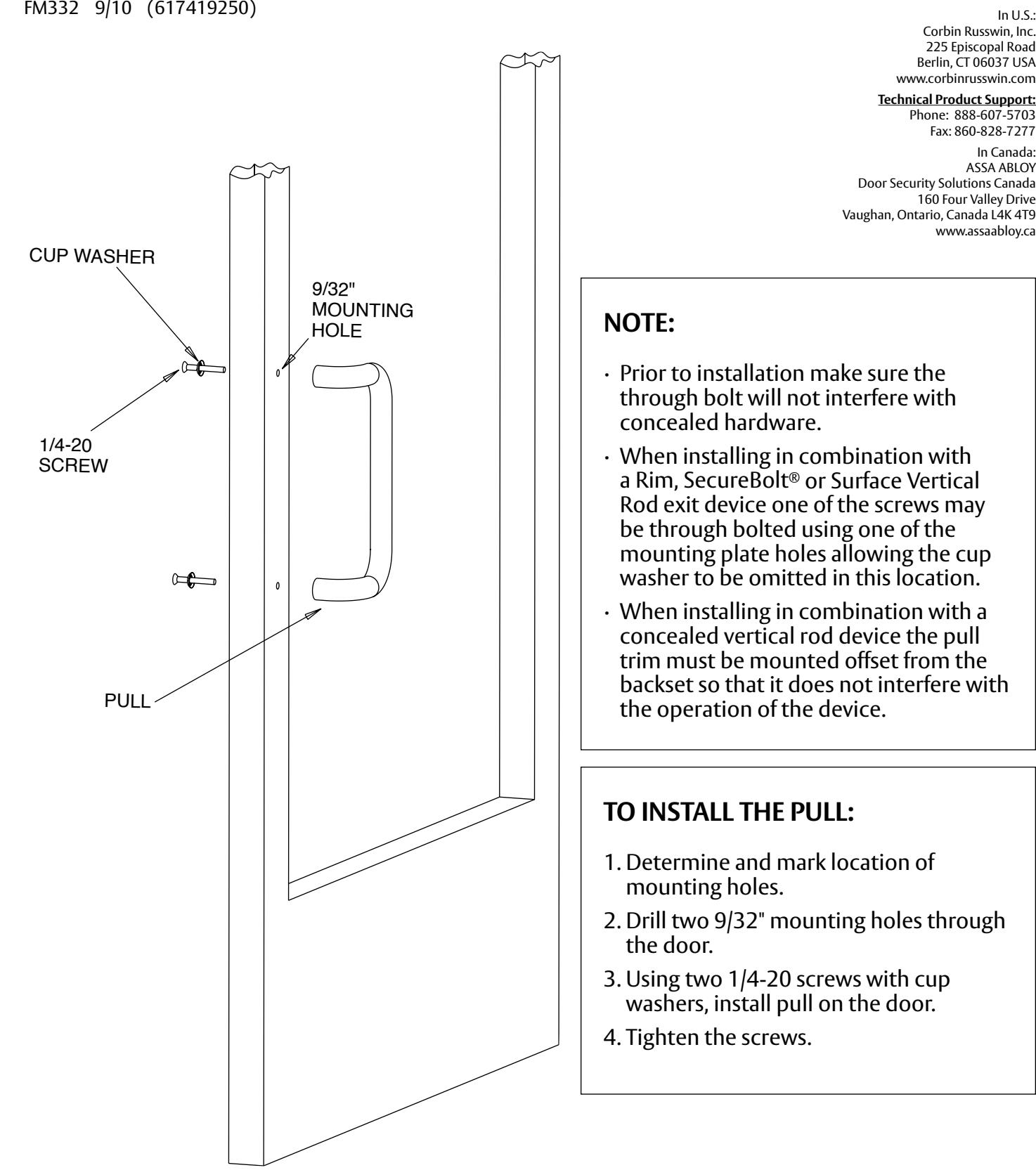

TO INSTALL THE PULL:

  • 1. Determine and mark location of mounting holes.
  • 2. Drill two 9/32" mounting holes through the door.
  • 3. Using two 1/4-20 screws with cup washers, install pull on the door.
  • 4. Tighten the screws.

Corbin Russwin P12, P13, and P14 Offset Pull Trim for ED2000, ED3000, ED5000, ED7000, PED4000, and PED5000 Serie…_FM332 image
