Notes:

  • This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • Provide adequate structural support to maintain door integrity during operation.
  • 6. Prepare mounting holes when installing trim.

Corbin Russwin P1057 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Wood or Compos…_T30939 imag

Corbin Russwin P1057 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Wood or Compos…_T30939 imag

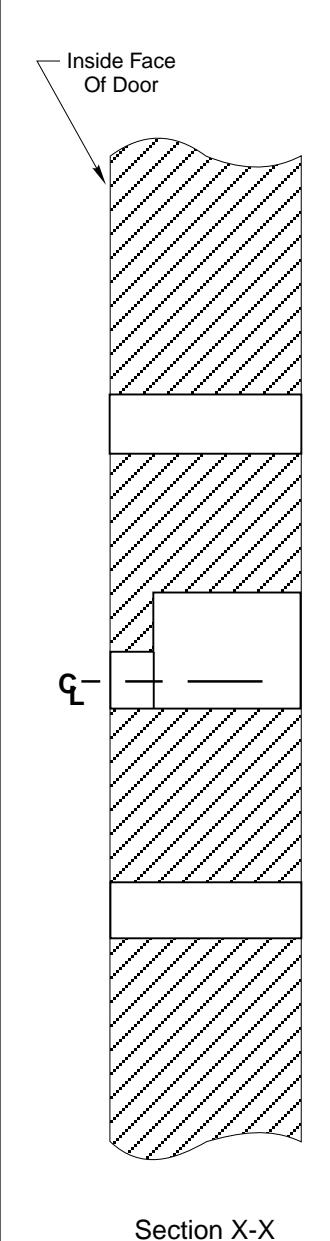

Corbin Russwin P1057 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Wood or Compos…_T30939 diag

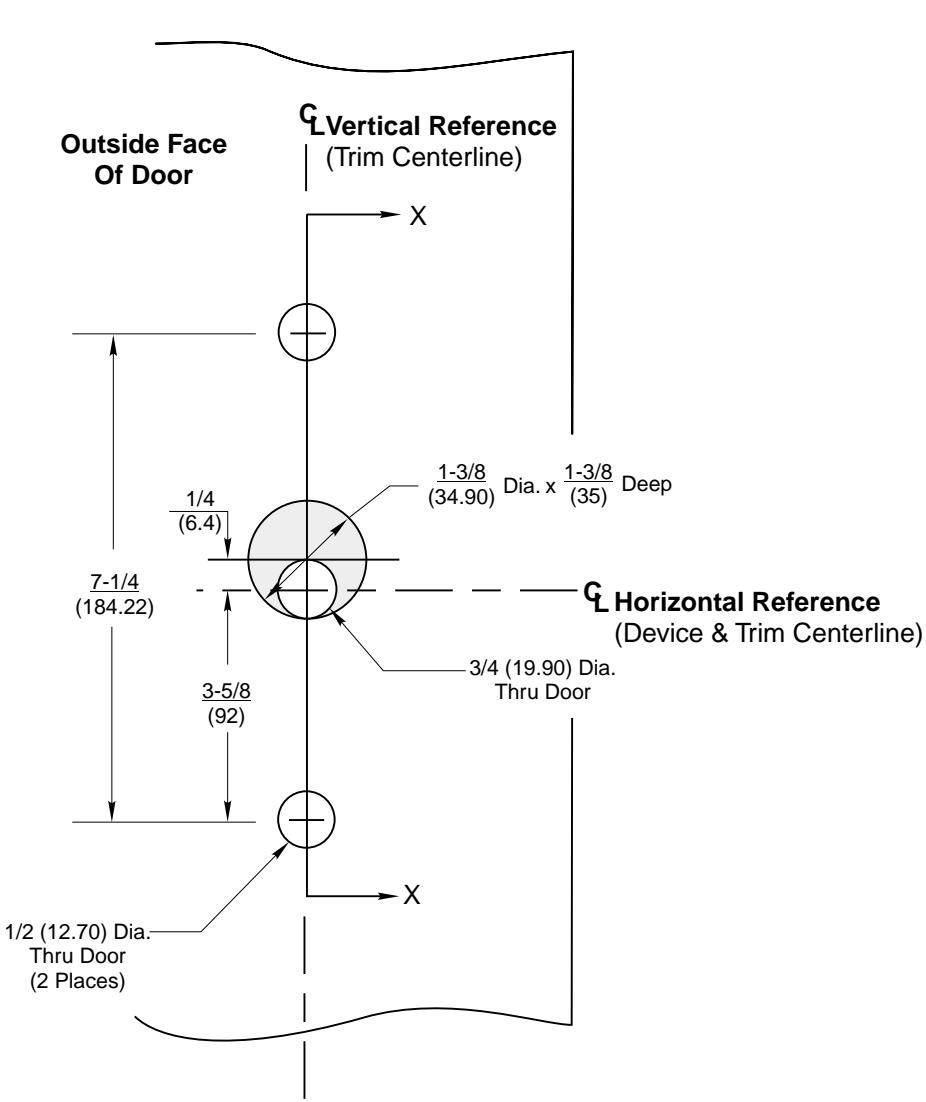

P1057 Narrow Escutcheon Trim With ED4200, ED4400 or ED4800 Series Rim and Vertical Rod Exit Devices Wood or Composite Door Preparation

Corbin 78° Russwin 78°

www.corbinrusswin.com

SUPERSEDES DO NOT SCALE DRAWING

T30939

DATE 9-99
