Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.

Corbin Russwin P1050 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Metal Door Tem…_T30936 imag

Corbin Russwin P1050 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Metal Door Tem…_T30936 diag

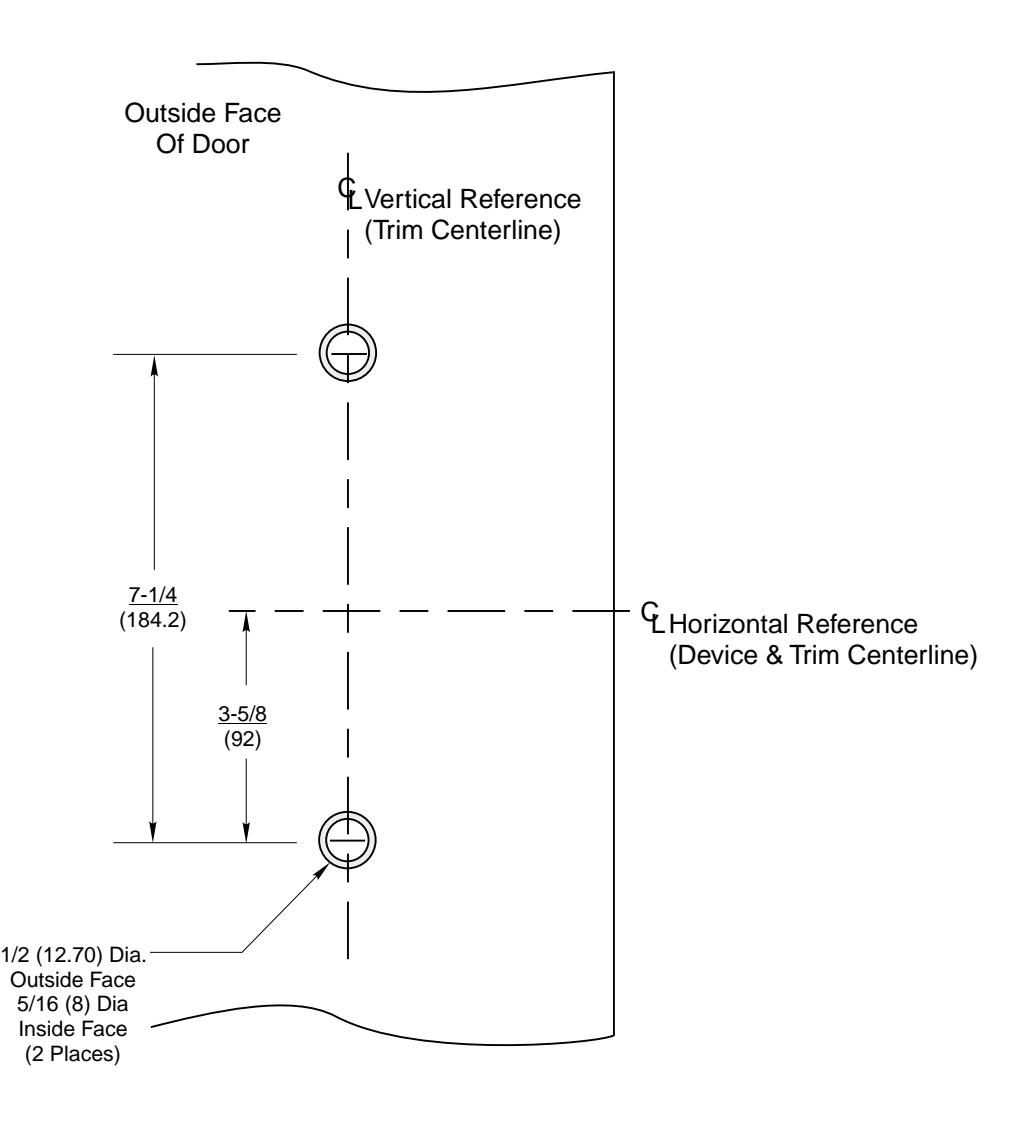

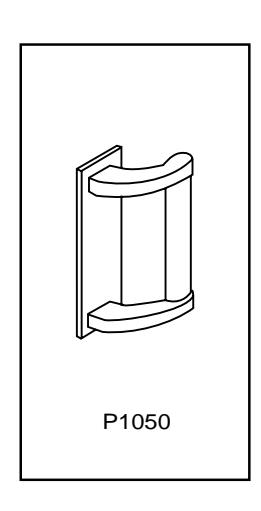

P1050 Narrow Escutcheon Trim Metal Door Preparation With ED4200, ED4400 or ED4800 Series Rim and Vertical Rod Exit Devices

Corbin Russwin P1050 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Metal Door Tem…_T30936 imag

DO NOT SCALE DRAWING SUPERSEDES

TEMPLATE NUMBER DATE

T30936 9-99
