MORTISE LOCK INSTALLATION INSTRUCTIONS

MUSEO DESIGNER TRIM

FM 601 Rev. C (10/18)

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

08/2018

TABLE OF CON TENTS:

DOOR P RE PARATION	1
LOCK AN DIN G	2
FULL WORK IN G TRIM
SE CT ION AL R & L E SCU TCH EON	3 6
HALF WORK IN G TRIM
SE CT ION AL	8
R & L E SCU TCH EON	10
FULL DUMMY TRIM
SE CT ION AL	12
R & L E SCU TCH EON	13
HALF DUMMY TRIM
SE CT ION AL	14
R & L E SCU TCH EON	15
SE CON DARY TRIM ATTACH MENT
EMERGE NCY K EY P LATE	16

LOCK H AN DIN G IS CRITICAL TO ENSU RE LOCK FUNCT ION S P ROPERLY

DOOR P REPARATION :

	TEMPLATE
FULL WORK IN G TRIM :
LOCK -BOD Y P RE P	T3104 6
SE CT ION AL NO AD DIT ION AL P RE P RE QUIRE D BE YON	D T3104 6
R & L E SCU TCH EON	T3104 7
HALF WORK IN G TRIM :
LOCK -BOD Y P RE P	T3116 2
SE CT ION AL NO AD DIT ION AL P RE P RE QUIRE D BE YON	D T3116 2
R & L E SCU TCH EON	T3116 4
FULL DUMMY TRIM :
SE CT ION AL	T3116 3
R & L E SCU TCH EON	T306 51
HALF DUMMY TRIM :
SE CT ION AL	T3116 3
R & L E SCU TCH EON	T306 52

ALL W ORK IN G TRIM M UST F IRST BE P REPARED FOR THE LOCK-BODY THEN FOR THE TRIM

ALL TEMPLATES CAN BE F OU ND AT WWW.CORBIN RU SSW IN .COM

IN STALLATION IN ST RU CT IONS

MUSEO Trim Instructions FM 601 Rev. C (10/18)

Mortise Lock Handing Instructions

FULL W ORK IN G TRIM IN STALLATION

SE CT ION AL:

Step 1) Install strike with shorter ( 3/4") mounting screws

Step 2) Insert mortise lock into door and hand tighten longer ( 1") mounting screws

Step 3) Thread adapter plate hub into lever and fully tighten

Step 4) Align adapter plate hub with square hole in lever; ke eping hub as tight as possible

Step 5) Install O/S trim assembly

Step 6) Install I/S adapter plate

Lever Lever

Step 7) Install I/S spindle and rose

Align studs on rose with bushings in adapter plate

Step 8) Install I/S lever with set screw

Step 9) Install cylinder and secure with set screw

Step 10) Mark turn-piece mounting holes and drill two .110" ( BIT # 35) holes where marke d

Step 11) M ount turn-piece

Step 12) Install scalp

R & L ESCUTCHEON:

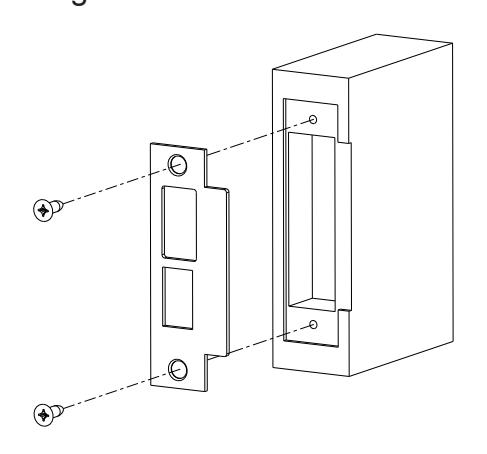

Step 1) Install strike with shorter (3/4") mounting screws

Step 2) Insert mortise lock into door and hand tighten longer (1") mounting screws

Step 3) Thread hub into lever and fully tighten

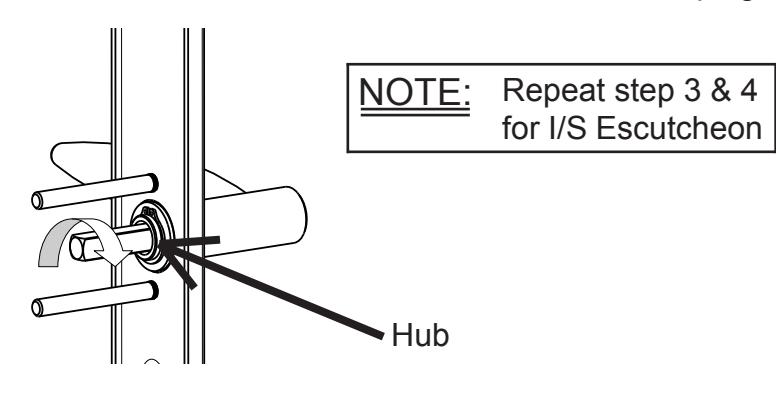

Step 4) Align hub with square hole in lever; be eping hub as tight as possible

Step 5) Install O/S trim assembly

Use Correct Spindle Orientation

INSTALLATION INSTRUCTIONS

Step 6) Install I/S Escutcheon

HALF WORKING TRIM INSTALLATION

SECTIONAL:

Step 1) Install strike with shorter (3/4") mounting screws

Step 3) Install I/S adapter plate

Step 5) Install I/S lever with set screw

Step 2) Insert mortise lock into door and hand tighten longer (1") mounting screws

Step 4) Install spindle and rose

Step 6) Install cylinder and secure with set screw

Step 7) M ark turn-piece mounting holes and drill two .110" ( BIT # 35) holes where marke d

Step 8) M ount turn-piece Step 9) Install scalp

R & L ESCUTCHEON:

Step 1) Install strike with shorter (3/4") mounting screws

Step 3) Thread hub into lever and fully tighten

Step 5) Install I/S Escutcheon

Step 2) Insert mortise lock into door and hand tighten longer (1") mounting screws

Step 4) Align hub with square hole in lever; eping hub as tight as possible

Step 6) Install cylinder and secure with set screw

Step 7) Install scalp

FULL DUMMY TRIM IN STALLATION

SE CT ION AL:

Step 1) Install O/S adapter plate Step 2) Install I/S adapter plate

Step 3) Install rose onto both adapter plates

Step 4) Install both levers with set screw

R & L E SCU TCHEON :

Step 1) Insert spindle into hub and rotate lever CW until tight

NOTE: Repeat step 1 & 2 for I/S Escutcheon

Step 3) Install O/ S Escutcheon Step 4) Install I/ S Escutcheon

HALF DUMMY TRIM IN STALLATION

SE CT ION AL:

Step 1) Install adapter plate

Step 2) Install mounting screws and washers

Step 3) Install rose onto adapter plate

Align studs on rose with bushings in adapter plate

Step 4) Install lever with set screw

R & L E SCU TCHEON :

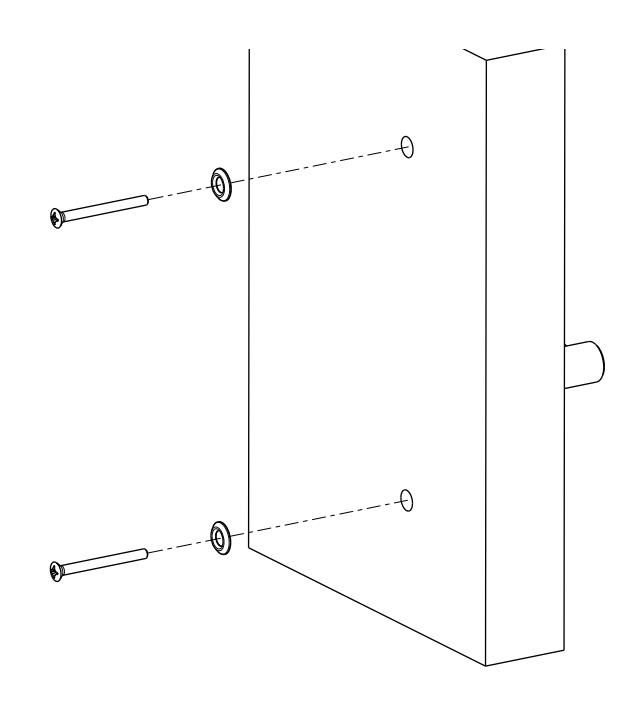

Step 1) H old O/S escutcheon on door Step 2) Install mounting screws and washers

NOTE: Re-hand the lever, if necessary, by pushing spindle out of dummy plate and rotating lever

SE CON DARY TRIM IN STALLATION

EMERGENCY KEY PLATE:

Step 1) M ark emergency ke y mounting holes and drill two .110" (BIT #35) holes where marke d

Step 2) M ount emergency ke y plate

In US: Corbin Russwin, Inc. 225 Episcopal Road Berlin, CT 06037-4004 www.corbinrusswin.com

Technical Product Support:

Phone: 888-607-5703 Fax: 800-659-7293

In Canada: ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, ON, L4K 4T9

www.assaabloy.ca

In U.S.: Corbin Russwin, Inc. 225 Episcopal Road Berlin, CT 06037 USA Phone: 800-543-3658

Technical Product Support:

Phone: 888-607-5703 In Canada: ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario, Canada L4K 4T9

Phone: 800-461-3007
