Muséo<sup>®</sup> Line
Quick Ship Program
24-Hour Program
- Orders received prior to 12 PM EST ship within 24 hours after receipt of order
- Standard Buying Program discount less 10 points is automatically applied
- If using standard purchase order form, please include Quick Ship Code Q0
- Orders cannot be changed, canceled, or returned
- Product offering:

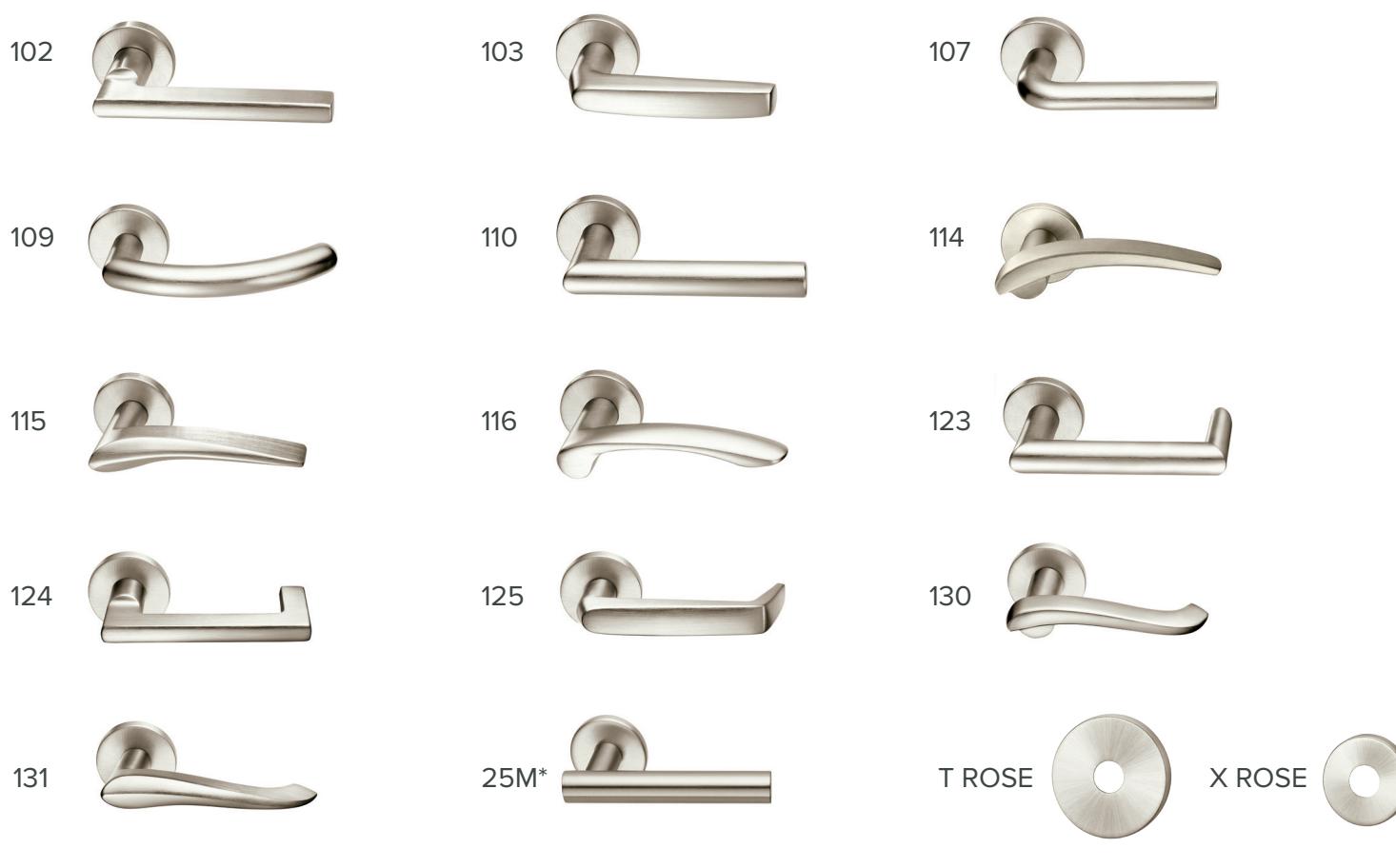

- Lever style: 102 and 110
- Lock platform: Mortise and tubular
- Finish: 626
1-Week Program
- Orders received prior to 12 PM EST ship within 5 working days after receipt of order
- Standard Buying Program discount is automatically applied. Project Quote discounts less 5 points may also be applied
- If using standard purchase order form, please include Quick Ship Code Q1
- Orders cannot be changed, canceled, or returned
2-Week Program
- Orders received prior to 12 PM EST ship within 10 working days after receipt of order
- Standard Buying Program discounts or project quote discounts are applicable
- If using standard purchase order form, please include Quick Ship Code Q2
- Limited to $50,000 net/net orders
- Orders cannot be changed, canceled, or returned
TL3700 Series Tubular Lock
Engineered for ease of installation with the quality you expect from Corbin Russwin, the TL3700 Series will exceed the expectations of the most demanding architects and design professionals. Ideal for interior applications such as hotel guest rooms, high-end condominiums and apartments.
Specifications:
- Passage, privacy, single lever pull, double lever pull and communicating functions available
- Standard for doors 1-3/8" (35mm) thick; 1-3/4" (44mm) thick doors available
- 2-3/4" backset standard with 1" (25mm) front
- ANSI Standard 161 Door Prep
- Latchbolt brass 1/2" (12.7mm) projection
- Easily field reversible
Access Control
Designed with architects and designers in mind, the Corbin Russwin line of access control products allow facilities to seamlessly expand their access control systems without changing software or sacrificing aesthetics. Providing ultimate security with ease of installation, these products are ideal for corporate office buildings, healthcare facilities, schools and universities, or any door that requires electronic access control.
Specifications:
- Offline, IP-enabled WiFi, IP-Enabled PoE, and Integrated Wiegand locks and exit devices offered
- Certified ANSI/BHMA Grade 1 strength and durability
- Designed to integrate seamlessly into a wide range of third party access control systems
- Available through Authorized Channel Partners only. Contact your local ASSA ABLOY Door Security Solutions sales consultant for details
Available Finishes
605 Bright brass, clear coated
612 Satin bronze, clear coated
613 Dark oxidized satin bronze oil rubbed
613E Dark oxidized satin bronze, equivalent
619 Satin nickel, clear coated
625 Bright chrome plated
626 Satin chrome plated
*Access control products only offered in 626 and 613E finishes.
Note: For more information on shipping and options available, please consult the Corbin Russwin Quick Ship catalog.
*The 25M lever is only available in 3030 (630) finish. Rose and lock trim will also be supplied in 630.
ML2000 Series Mortise Lock
The ML2000 is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial buildings. A wide variety of functions and a 10-year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
Specifications:
- Certified to and exceeds ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1
- Handed; quick reversible without disassembling the lock case
- All levers with returns, return to within 1/2" (13mm) of door face
- Backset 2-3/4" (70mm)
- 1-3/4" (44mm) thick door standard
- Electrical functions available
ED5000 Series Exit Device
The ED5000 Series offers smooth lines in the exit device bar and a range of trim designs with visual diversity including a parabolic design option. Designed to allow safe and easy egress, the ED5000 is ideal for frequent use applications such as schools, factories, retail complexes and theaters.
Specifications:
- Mortise, rim and surface/concealed vertical rod exit devices offered
- UL Fire and Panic listed
- Quiet operation and solid security
- Single and double door applications
Corbin Russwin, Inc. 225 Episcopal Road Berlin, CT 06037-4004 Phone 800.543.3658 Fax 800.447.6714 corbinrusswin.com corbinrusswinmuseo.com
