Notes:

TEMPLATE CROSS REFERENCE Description Template ML2000 Series Mortise Lock x Museo T31046

  • Backset is measured from centerline of bevel which is centerpoint of door thickness.
  • Refer to appropriate mortise lock template for cylinder and turnpiece preps when required.
  • 3. Dimensions given in inches and (mm).

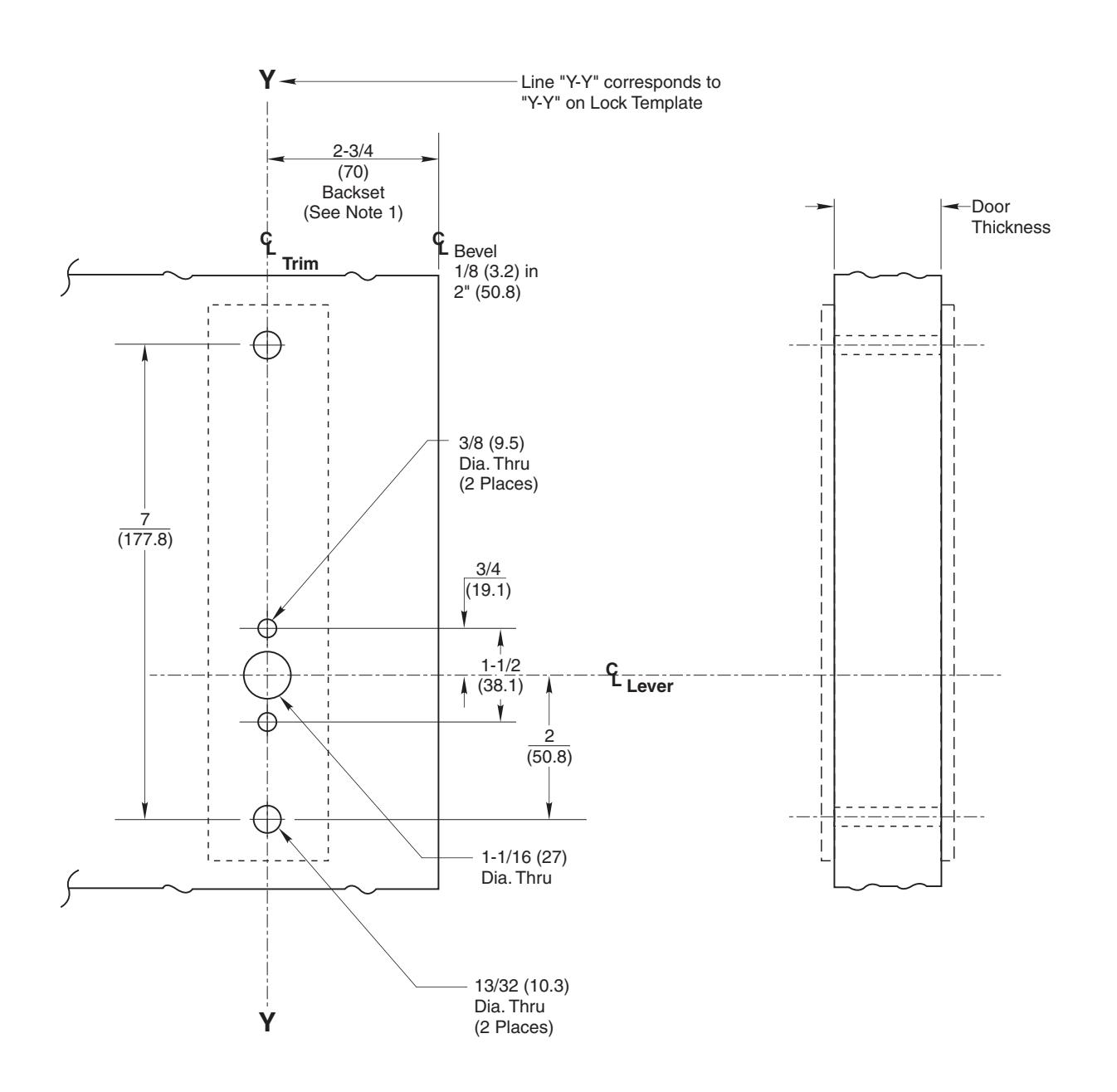

Corbin Russwin Museo Lever Designs with R and L Escutcheon Trim for ML2000 Series Mortise Locks Template_T31047 diagram on pa

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

ML2000 Series "R" and "L" Escutcheon Using Museo Lever Designs

Corbin 70° Russwin 70°

ASSA ABLOY

www.corbinrusswin.com

SUPERSEDES T31047-1 DO NOT SCALE DRAWING

TEMPLATE NUMBER

(2)

T31047-2

™ 07-14
