MP9800 Series

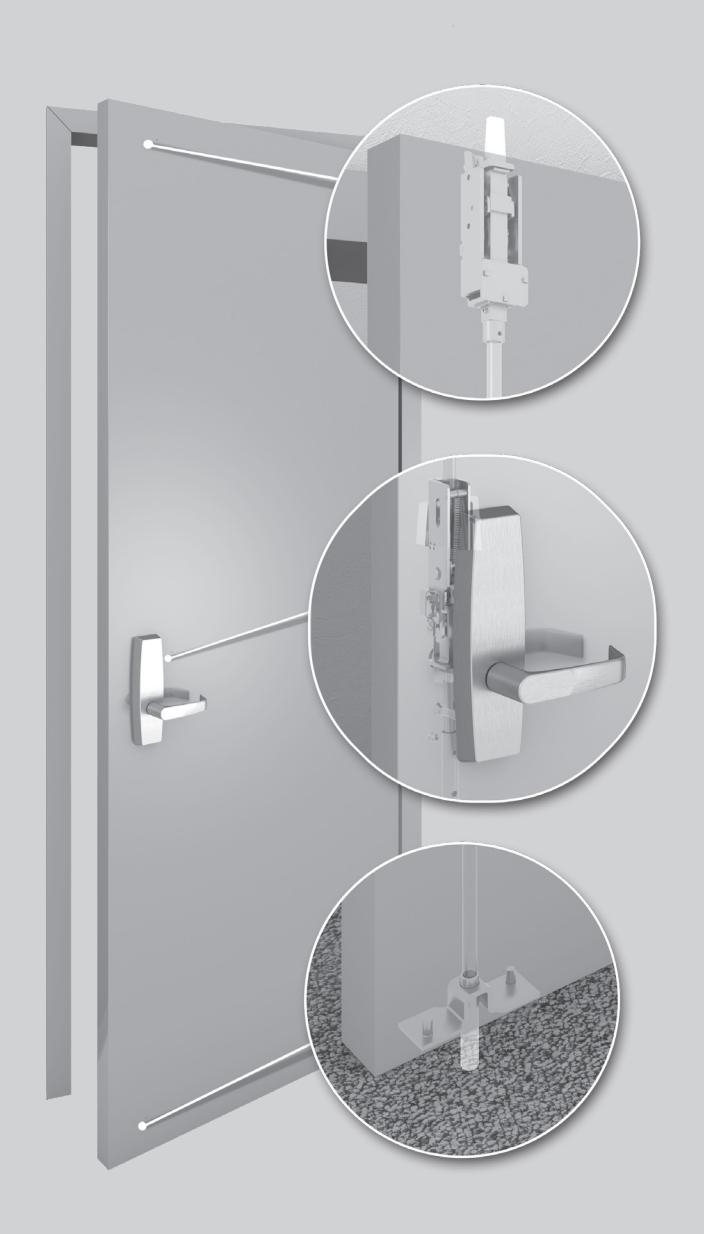

Multi-Point Vertical Rod Lock Parts Manual
MP9800 Parts Manual
Table of Contents
| MP9800 for Metal & Aluminum Doors3 | |
|---|---|
| Motorized Electric Latch Retraction for MP98004 | |
| MP9800 for Wood Doors5 |
6
5
3
| Item | Part Number | Description | Quantity |
|---|---|---|---|
| 1 | N**ET1 | Inside Trim Assembly | 1 |
| 2 | E**ET2 | Outside Trim Assembly | 1 |
| 764F488 | Inner Chassis Assembly | 1 | |
| 3 | 764F508 | Monitoring Inner Chassis Assembly | |
| 764F538 | Bottom Case | 1 | |
| 4 | 764F528 | Bottom Case, Aluminum (MPAD) | 1 |
| 5 | MP694T3 | Top Rod And Bolt Assy | 1 |
| 6 | 764F558 | Top Case Assembly | 1 |
| 7 | 765F358 | Bottom Rod And Bolt Assy | 1 |
| 765F122 FIN5 | Rectangular Trim Plate (optional) | 2 | |
| 8 | 765F132 FIN5 | Sculpted Trim Plate (optional) | |
| 96 | 764F577 | Top Strike Pack, Fire | 1 |
| 764F587 | Bottom Strike Pack, Fire | 1 | |
| 764F567 | Top And Bottom Strike Pack, Std | 1 | |
| 764F607 | Top Strike Pack, Aluminum Door (MPAD) | 1 | |
| 764F597 | Top & Btm Strikes Pack, Aluminum Door (MPAD) | 1 | |
| 106 | 764F62M FIN5 | Screw Pack (Includes Item 4) | 1 |
Notes:
- 1. Specify lever design, inside trim function (i.e. N**ET where ** is the function number), finish, handing & door thickness, respectively. Example: L N10ET 626 RHR 1 3/4"
- 2. Specify lever design, outside trim function (i.e. E**ET where ** is the function number), finish, handing & door thickness, respectively. Example: A E45ET 605 LHR 2"
- 3. For rod assemblies, specify door height. Choose option MPAD for an aluminum door. Example: MP694T H0800 MPAD
- 4. For M55 option, omit items 4 & 7 and choose a top strike pack only from item 9.
- 5. Specify finish when ordering.
- 6. Item 9 & 10 not shown.
The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
Copyright © 2019-2021, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
45593-2/21

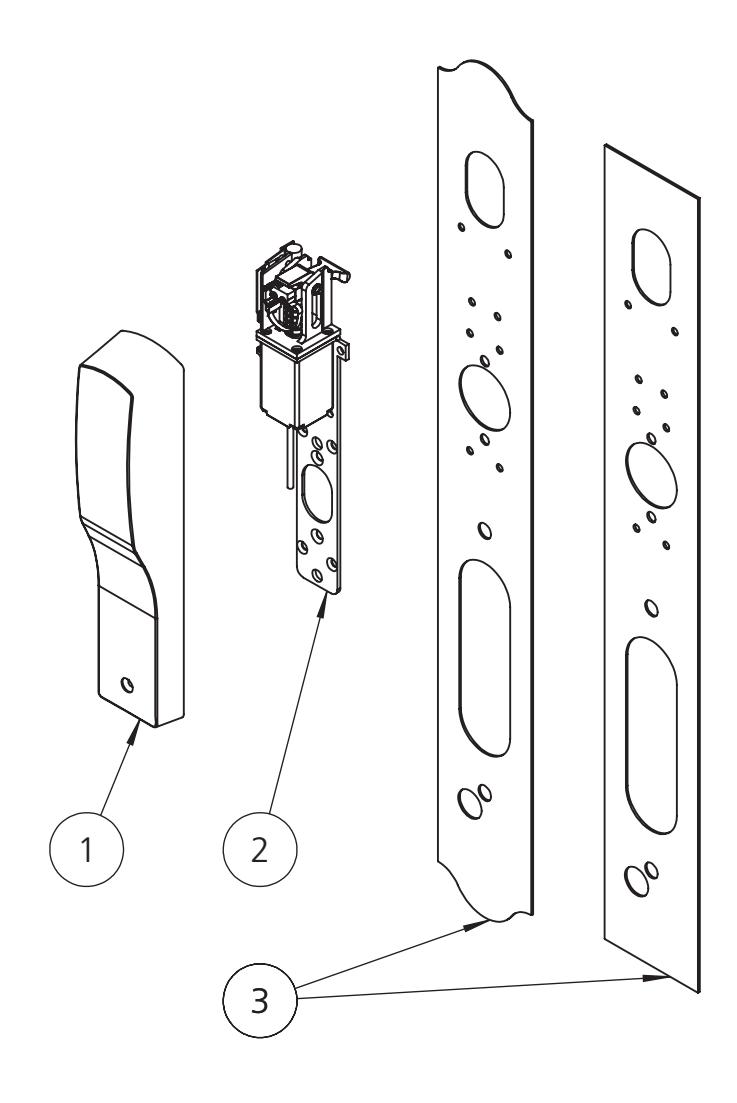

| Item | Part Number | Description | Quantity |
|---|---|---|---|
| 1 | 765F452 FIN1 | Cover Assembly | 1 |
| 2 | 765F839 | MELR Assembly | 1 |
| 765F849 | MELR Assembly, Access 600 RNE1 | 1 | |
| 3 | 766F942 FIN1,2 | Rectangular Trim Plate, MELR (optional) | 1 |
| 766F952 FIN1,2 | Sculpted Trim Plate, MELR (optional) | ||
| 4 | 764F348 | Mounting Hardware | 1 |
| 764F3582 | Mounting Hardware, Wood Door (MPWD) | 1 |
Notes:
- 1. Specify finish when ordering.
- 2. Required for wood doors (MPWD).
The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.

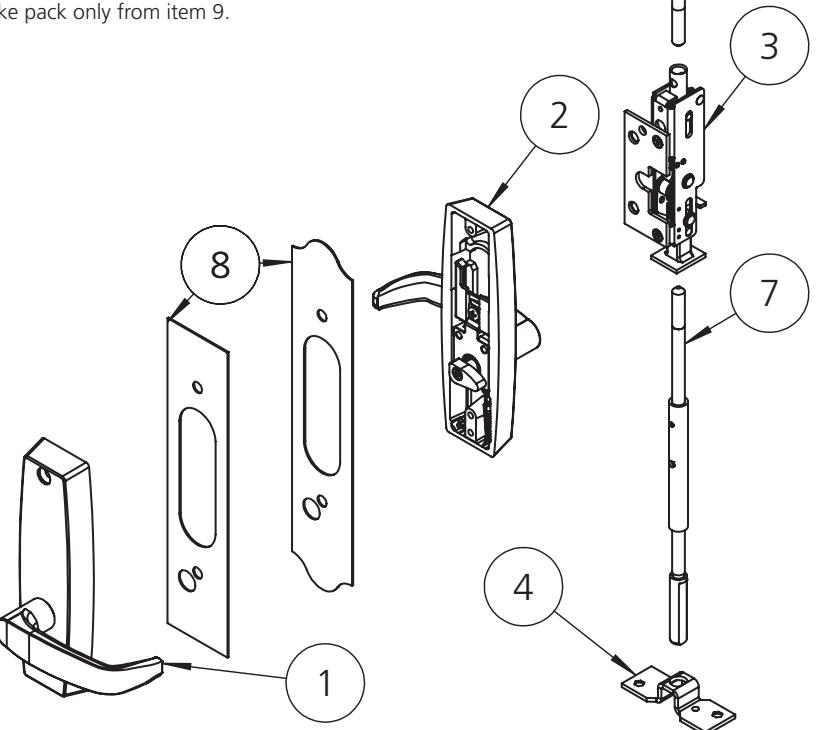

| Item | Part Number | Description | Quantity |
|---|---|---|---|
| 1 | N**ET1 | Inside Trim Assembly | 1 |
| 2 | E**ET2 | Outside Trim Assembly | 1 |
| 3 | 764F498 | Inner Chassis Assembly | 1 |
| 764F518 | Monitoring Inner Chassis Assembly | ||
| 4 | 764F538 | Bottom Case | 1 |
| 5 | MP694T3 | Top Rod And Bolt Assy | 1 |
| 6 | 764F548 | Top Case Assembly | 1 |
| 7 | 765F358 | Bottom Rod And Bolt Assy | 1 |
| 8 | 765F122 FIN5 | Rectangular Trim Plate | |
| 765F132 FIN5 | Sculpted Trim Plate | 2 | |
| 96 | 764F577 | Top Strike Pack, Fire | 1 |
| 764F587 | Bottom Strike Pack, Fire | 1 | |
| 764F567 | Top And Bottom Strike Pack, Std | 1 | |
| 106 | 764F62M FIN5 | Screw Pack (Includes Item 4) | 1 |
Notes:
- 1. Specify lever design, inside trim function (i.e. N**ET where ** is the function number), finish, handing & door thickness, respectively. Example: L N10ET 626 RHR 1 3/4"
- 2. Specify lever design, outside trim function (i.e. E**ET where ** is the function number), finish, handing & door thickness, respectively. Example: A E45ET 605 LHR 2"
- 3. For rod assemblies, specify door height and MPWD for wood doors. Specify option AUX155 or AUX159 if used with an aux control. Example: MP694T H0900 MPWD AUX155
- 4. For M55 option, omit items 4 & 7 and choose a top strike pack only from item 9.
- 5. Specify finish when ordering.
- 6. Item 9 & 10 not shown.
The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
Copyright © 2019-2021, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
6
5
45593-2/21
For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com.
