NOTES:

• 1. Do not scale.
• 2. Dimensions given in inches (mm).
• 3. For additional door preparations, see appropriate inside trim template.
• 4. Above door preparation identical for both LHRB and RHRB door.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

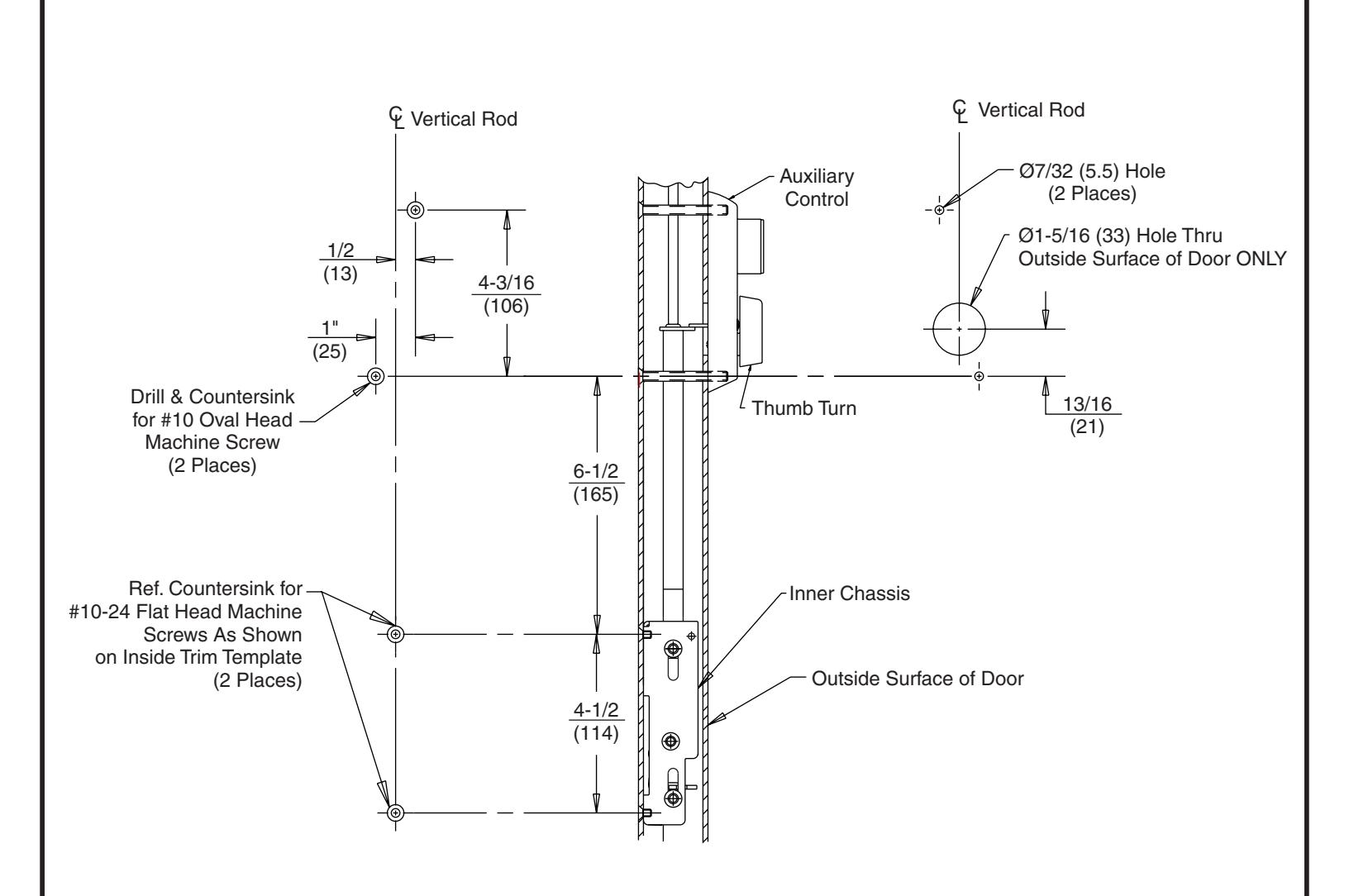

MP9800 Series Multi-Point Lock Auxiliary Control Metal Door

www.corbinrusswin.com ® ASSA ABLOY

SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER
