Ultimate Versatility

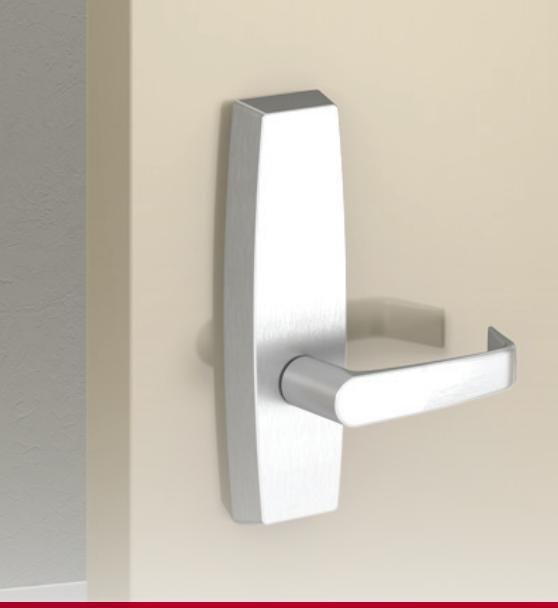

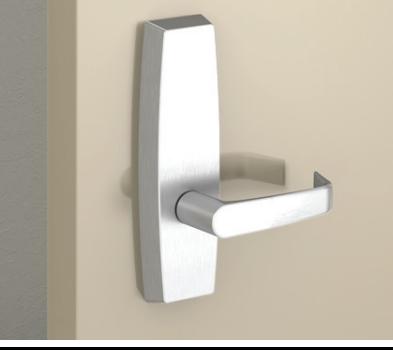

MP9800 Series Multi-Point Lock

The MP9800 Series multi-point lock is an ideal solution for applications where additional security and convenience is needed, but exit devices are not required. Available for use on multiple door types, with a broad range of options including access control, its heavy duty construction provides the durability and reliabile operation that is perfect for any type of facility.

MP9800 Series

Multi-Point Lock

APPLICATIONS

• Pairs of doors that do not require panic devices
• When flush bolts are not permitted in:
  • Assembly
  • Education
  • Healthcare
  • Hazard Occupancy
• Single doors that do not require a panic device with power operators

FEATURES

• Functions: 9 for inside trim and 11 for outside trim
• For use with all door types (metal, aluminum, wood, narrow stile)
• Single or double door applications
• Available with Muséo Collection decorative levers
• UL Listed for wood and metal fire rated doors
• Optional less bottom rod (M55) available
• Electrified trim available
• Available with Access 600® Integrated Wiegand access control
• Supports electric latch retraction with MELR option code
• UL listed for hurricane and windstorm metal door applications with M107 option: ZHEM.R21744

BENEFITS

• Flexible: 36 function combinations including classroom security and latch hold back for multiple door types
• • Versatile: More choices for electrified openings including MELR and Access 600® Integrated Wiegand access control
• Reduced Maintenance: Virtually maintenance free with fewer moving parts
• Accessible: When used less bottom rod, obstacles are eliminated for equipment and wheel chairs

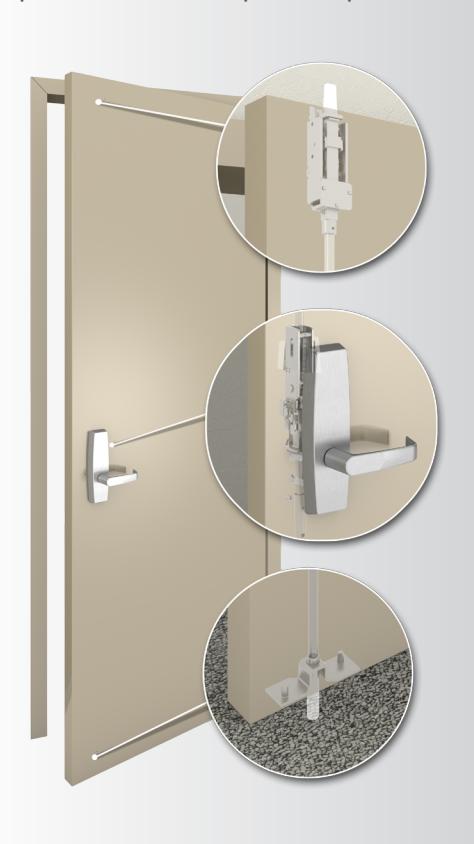

• Aesthetically-pleasing: Clean, simple design with concealed rods , and available with decorative Muséo Collection levers
