Corbin Russwin ML20900 Series Wiring Diagram

Home
Resource Library
Request a Quote

Original Source Document Full PDF Version

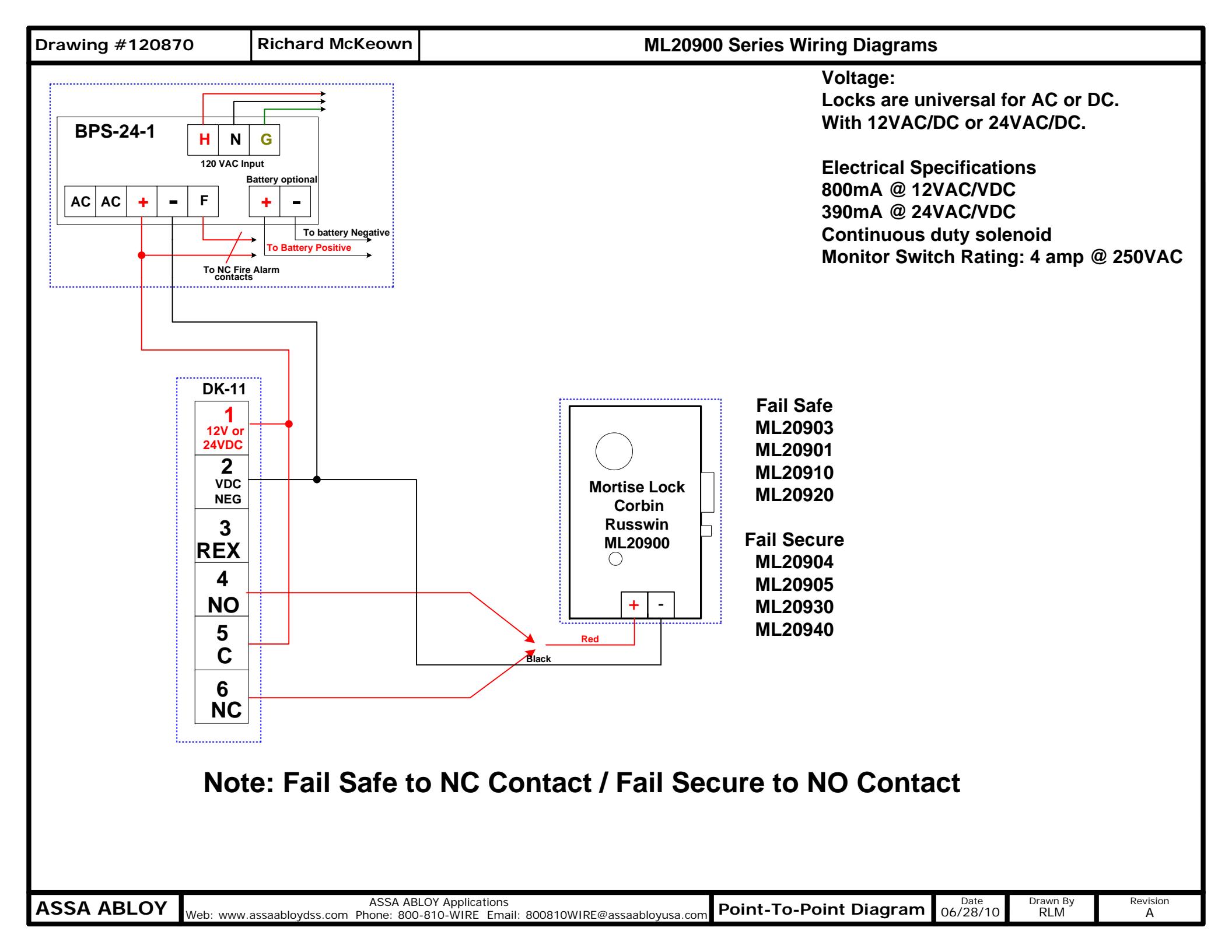

Corbin Russwin ML20900 Series Wiring Diagram diagram on page 1
