CORBIN RUSSWIN ML2055 AND ARROW BM17 ELECTRIC LOCK M1510/1520C

FUNCTION CHANGE INSTRUCTIONS

TO CHANGE THE LOCKING FUNCTION FOLLOW THE THE BELOW INSTRUCTIONS CAREFULLY.

STEP 1: REMOVE THE 3 COVER SCREWS AND COVER

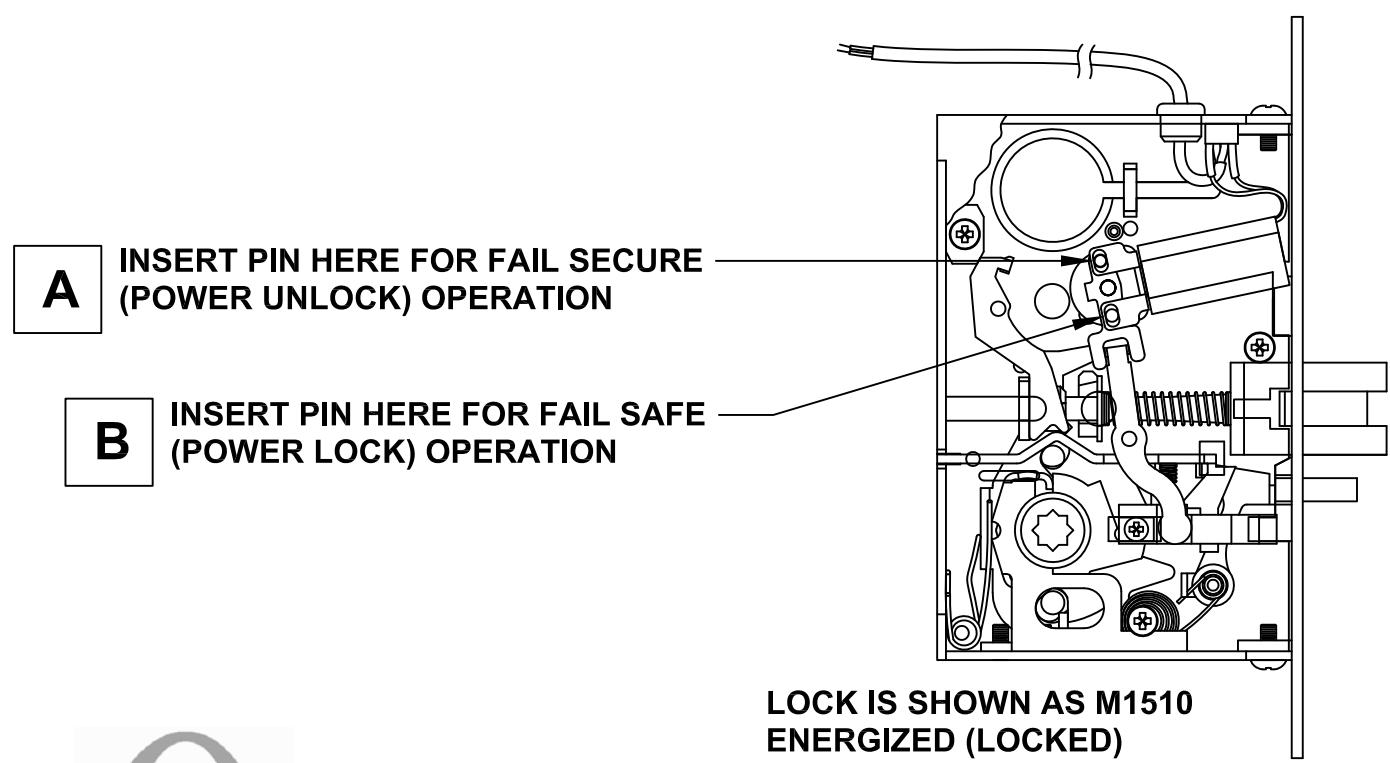

STEP 2: USING THE ILLUSTRATION BELOW, REMOVE PIN AND REPLACE PIN IN PROPER HOLE AS FOLLOWS

A FOR FAIL SECURE M1520C (POWER UNLOCK) FUNCTION

B FOR FAIL SAFE M1510C (POWER LOCK) FUNCTION

STEP 3: REPLACE COVER AND SCREWS. MAKE SURE SOLENOID IS PROPERLY POSITIONED IN COVER SLOT.
