BACKSET GAGE (ML 2000 ONLY) (1-3/4" DOOR ONLY)

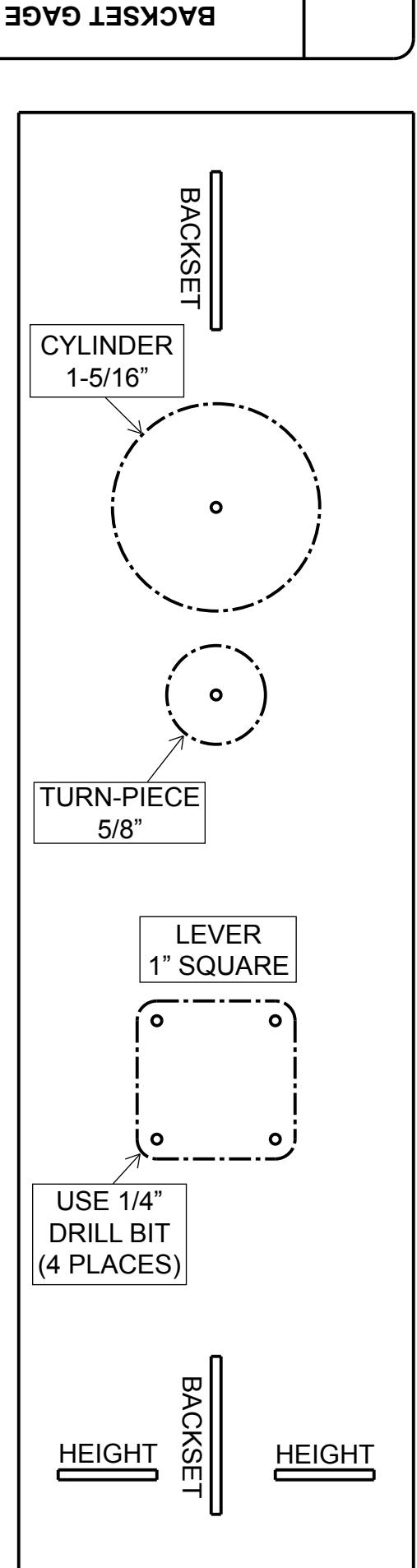

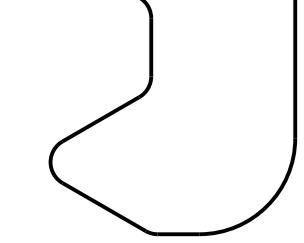

INSPIRETM ROSELESS TRIM DOOR MARKER

ML2000 SERIES x J TRIM

FM342 REV 12/18

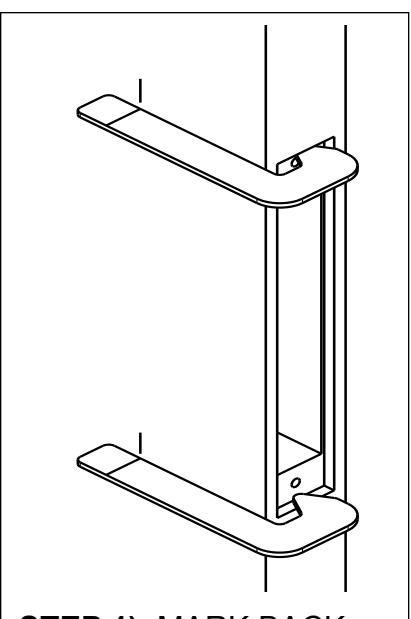

STEP 1) MARK BACK-SET USING GAGE (GAGE GOES INSIDE FRONT POCKET NOT ON DOOR EDGE) (BOTH TOP AND BOTTOM)

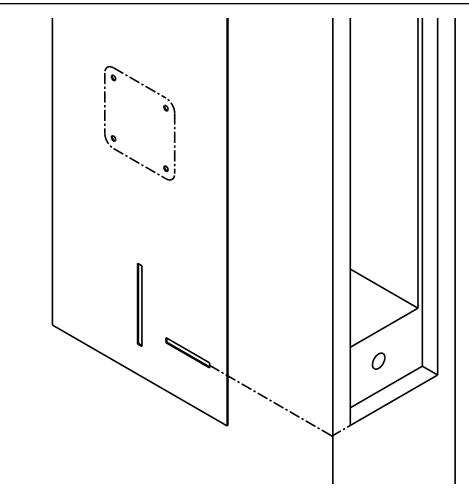

STEP 2) MARK HEIGHT (LEVEL WITH BOTTOM OF FRONT POCKET - AS SHOWN)

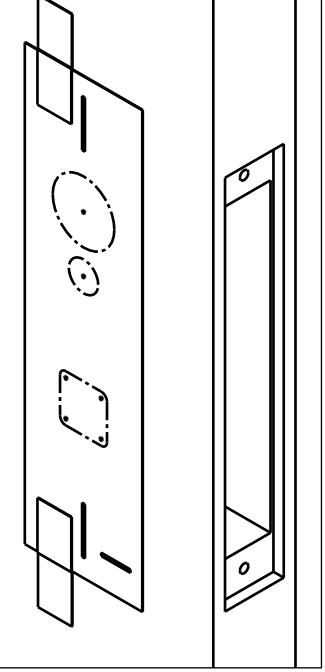

STEP 4) MARK ALL FOUR LEVER HOLES AND CYLINDER/TURN-PIECE HOLES

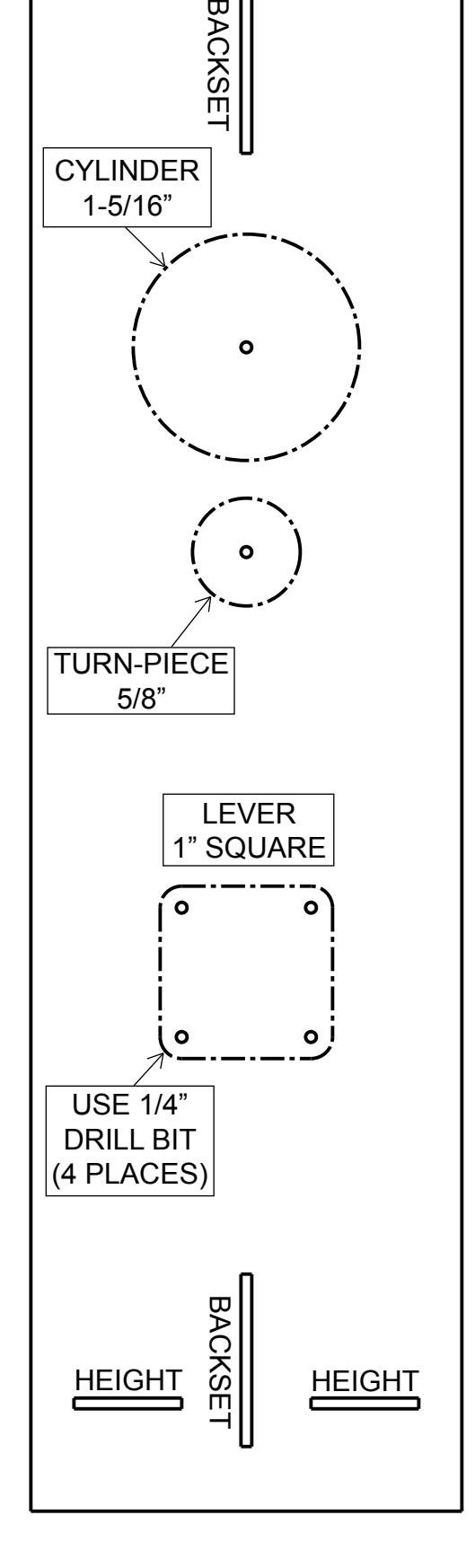

STEP 5) DRILL FOUR 1/4" HOLES FOR LEVER WHERE MARKED THEN USE JIGSAW TO CUTOUT SQUARE HOLE (AS SHOWN BY DOTTED LINE ON DOOR MARKER)
