ML2000 SERIES MORTISE LOCKS MOTORIZED ELECTRIC LATCH RETRACTION

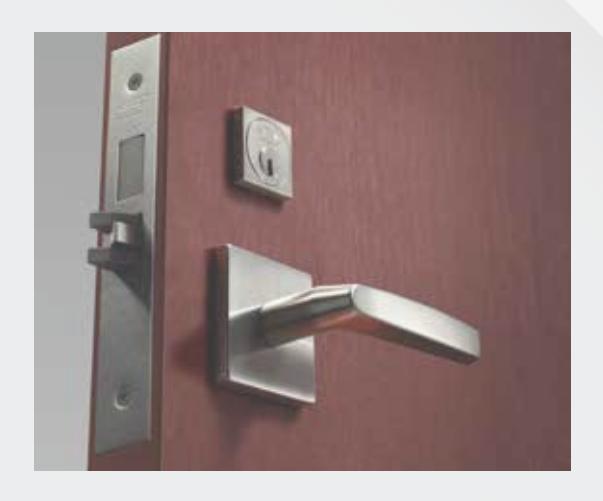

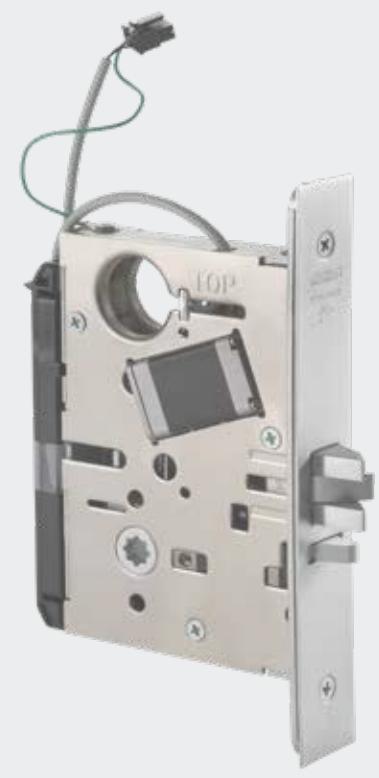

Designed for commercial, institutional, and industrial spaces, the ML2000 Series Motorized Electric Latch Retraction (MELR) mortise lock sets a new standard in security, reliability, and accessibility. Elevate your security infrastructure with a solution that excels in code compliance, dependable operation, and resistance to physical abuse.

ENHANCED ACCESSIBILITY:

• Allows push/pull operation, satisfying both in-swing and outswing doors.
• Access controlled via an access control system or physical key override.
• Request to Exit available as an option.

ADAPTABLE TO YOUR NEEDS:

• Field reversible for easy handing adjustments.
• Compatible with any access control application using standard mortise locks.

CERTIFICATIONS:

• ANSI/BHMA A156.13 Grade 1 certified for superior performance.
• ANSI/BHMA A156.25 compliant.
• UL/cUL Fire Rated for 3 Hour Doors.
• UL294/UCL60839-11-1 Listed.
• Windstorm certified (refer to local codes).

ELECTRICAL EXCELLENCE:

• Voltage: 24VDC (+10% / -15%).
• Operating current: 700mA.
• Hold Current: 50mA.

QUIET AND EFFICIENT OPERATION:

• Motorized latch retraction and spring back extension provide quiet and seamless operation.
• Smooth latch retraction with applied pressure of over 50lbs to the door.
