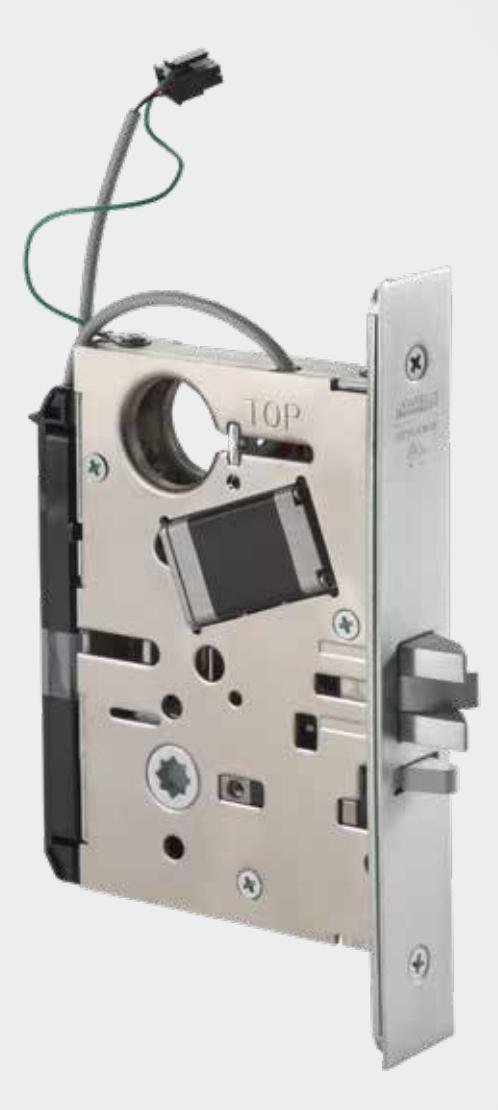

ML2000 SERIES MORTISE LOCKS MOTORIZED ELECTRIC LATCH RETRACTION

Door Solutions with Enduring Beauty

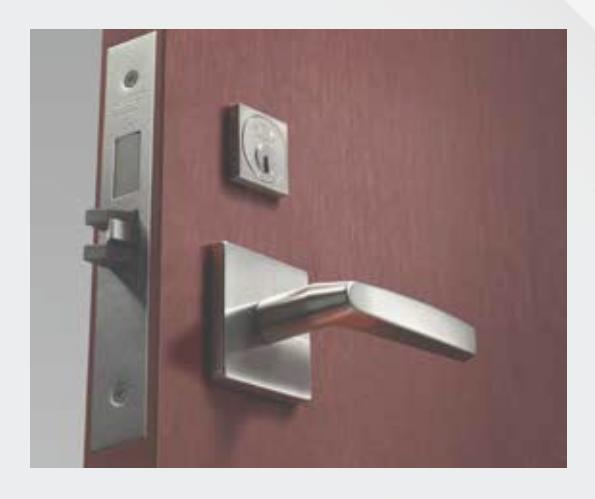

Designed for commercial, institutional, and industrial spaces, the ML2000 Series Motorized Electric Latch Retraction (MELR) mortise lock sets a new standard in security, reliability, and accessibility. Elevate your security infrastructure with a solution that excels in code compliance, dependable operation, and resistance to physical abuse.

ENHANCED ACCESSIBILITY:

• Allows push/pull operation, satisfying both in-swing and outswing doors.
• Access controlled via an access control system or physical key override.
• Request to Exit available as an option.

ADAPTABLE TO YOUR NEEDS:

• Field reversible for easy handling adjustments.
• Compatible with any access control application using standard mortise locks.

CERTIFICATIONS:

• ANSI/BHMA A156.13 Grade 1 certified for superior performance.
• ANSI/BHMA A156.25 compliant.
• UL/cUL Fire Rated for 3 Hour Doors.
• UL294/UCL60839-11-1 Listed.
• Windstorm certified (refer to local codes).

ELECTRICAL EXCELLENCE:

• Voltage: 24VDC (+10% / -15%).
• Operating current: 700mA.
• Hold Current: 50mA.

QUIET AND EFFICIENT OPERATION:

• Motorized latch retraction and spring back extension provide quiet and seamless operation.
• Smooth latch retraction with applied pressure of over 50lbs to the door.
